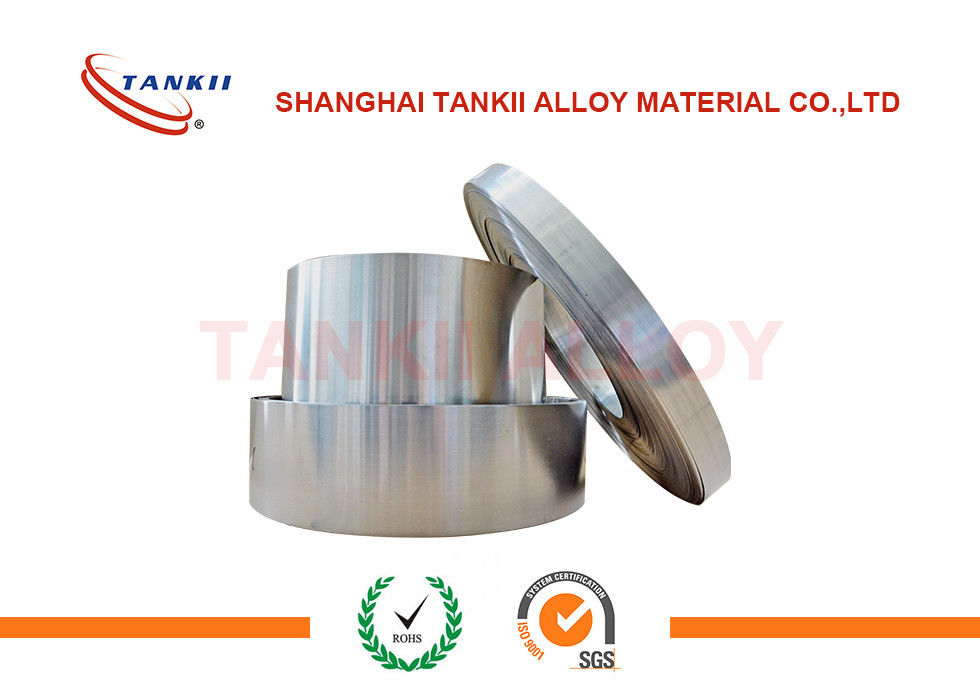

Soft Magnetic Alloy 1J22 Strip Precision Alloy For Core Of Magnetostrictive Transducer

Soft Magnetic Alloy 1J22 Strip Precision Alloy For Core Of Magnetostrictive Transducer
Soft Magnetic Alloy 1J22 Strip Precision Alloy For Core Of Magnetostrictive Transducer Soft Magnetic Alloy 1J22 Strip Precision Alloy For Core Of Magnetostrictive Transducer

Large Image :  Soft Magnetic Alloy 1J22 Strip Precision Alloy For Core Of Magnetostrictive Transducer

Product Details:
Place of Origin: China
Brand Name: Soft Magnetic Alloy
Certification: ISO 9001 and RoHS
Model Number: 1J22/ HiperCo50/ 50КФ/ Supermendur
Payment & Shipping Terms:
Minimum Order Quantity: 5KG
Price: USD 500~ 1000$/ KG
Packaging Details: Waterproof paper, Carton and Wooden Case
Delivery Time: 35~40 days
Payment Terms: T/T, Western Union
Supply Ability: 100KG per month

Soft Magnetic Alloy 1J22 Strip Precision Alloy For Core Of Magnetostrictive Transducer

Description
Features: High Saturation Magnetization Theory: For Core Of Magnetostrictive Transducer
Standard: GB/T 15002-1994 Shape: Strip
Material: Fe-Co-V Alloy Condition: Soft, Bright
High Light:

precision tubing

,

kovar alloy



Soft Magnetic Alloy 1J22 Strip Precision Alloy For Core Of Magnetostrictive Transducer 0

Magnetostrictive Transducer



High Saturation Magnetization of Soft Magnetic Alloy 1J22 for Core of Magnetostrictive Transducer



Name:

1J22 /HiperCo50/ 50КФ/ Supermendur



Application:

Suitable as light weight, small size aviation electrical components, such as micro-motor rotor magnet pole, relays, transducers, etc.



Feature:

In existing soft magnetic material saturation magnetization of the alloy is highest (2.4T). Curie is also the highest point (980 ℃), the maximum saturation magnetostriction coefficient. Due to the high saturation magnetic flux density, in the production of the same power of the motor, which can greatly reduce the volume; in making electromagnets in childhood Yang produce large cross-sectional area of the suction force. Due to the high Curie point, the alloy can be able to work at higher temperatures other soft magnetic material has been completely demagnetized, and to maintain good magnetic stability line. Due to a large magnetostriction coefficient, very suitable for magnetostrictive transducer output, high energy, high work efficiency.



Physical properties

  • Density (g/cm3): 8.2
  • Curie point (℃): 980
  • Electrical resistivity (μΩ*cm): 0.4 (20℃)
  • Saturation magnetostriction coefficient (λθ/10-6): 60~100





Description:

Chemical composition(%)



Grade

C

Si

Mn

P

S

Ni

Co

V

Fe

1J22

≤0.04

0.15~0.3

0.2

≤0.02

≤0.02

0.5

49~51

0.8~1.8

Bal.













Soft Magnetic Alloy 1J22 Strip Precision Alloy For Core Of Magnetostrictive Transducer 1

Schematic diagram of Magnetostrictive Transducer





Soft Magnetic Alloy 1J22 Strip Precision Alloy For Core Of Magnetostrictive Transducer 2

Transducer equivalent circuit
