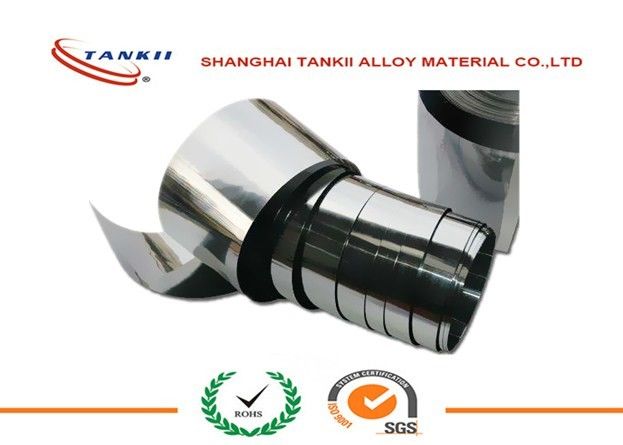

GH4145 / Inconel X-750 High Temp Alloy Foil

GH4145 / Inconel X-750 High Temp Alloy Foil
GH4145 / Inconel X-750 High Temp Alloy Foil GH4145 / Inconel X-750 High Temp Alloy Foil GH4145 / Inconel X-750 High Temp Alloy Foil

Large Image :  GH4145 / Inconel X-750 High Temp Alloy Foil

Product Details:
Place of Origin: China
Brand Name: High Temp Alloy
Certification: ISO 9001 and RoHS
Model Number: GH4145 / Inconel X-750 / UNS N07750
Payment & Shipping Terms:
Minimum Order Quantity: 10KG
Price: USD 20~50$/ KG
Packaging Details: Waterproof paper, Spool and Wooden Case
Delivery Time: 25~30 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000KG per month

GH4145 / Inconel X-750 High Temp Alloy Foil

Description
Shape: Foil, Stirp, Wire, Sheet, Bar Condition: Bright/ Oxidized; Soft/ Hard
Thickness: 0.05~3.0mm Width: 4~200mm
High Light:

high temperature wire

,

high temperature metal alloys



GH4145 Inconel X-750 High Temp Alloy



Application: Gas turbine rotor blades on the impeller and other structures; Elastic gas were mounted, flexible seal die, rubber machinery electric blade.



Feature: GH4145 has a high temperature environment good corrosion resistance and creep rupture strength, good mechanical properties, is widely used, below 980 ℃ have sufficient strength and corrosion resistance to oxidation.



Chemical composition(%)



Grade

C

Nb

Si

Ti

Mn

Al

P

S

Ni

Cr

Co

Fe

GH4145

≤0.08

0.7~1.2

≤0.5

2.25~2.75

≤ 1

0.4~1

≤0.015

≤0.01

≤70

14~17

1

5~9



Physical properties

>Density (g/cm3): 8.28

>Melting point (℃): 1393~1427



Mechanical properties



Yield Strength  RP0.2N/mm2

Tensile Strength

Rm N/mm2

Elongation, %

Hardness, HB

GH4145

868

1267

25

≤400









Specifications

Grade

GH4145

Thickness

0.01~0.09mm

MOQ

1 kgs

Condition

Soft, Bright



GH4145 / Inconel X-750 High Temp Alloy Foil 0



Inconel x-750 alloy has the following characteristics



Inconel x-750 has the following 980 ℃ good corrosion and oxidation resistance below 800 ℃ with high strength, below 540 ℃ has good resistance to relaxation properties, but also has good formability and weldability, in low-temperature environment with excellent mechanical properties.



Inconel x-750 Application field have:



This alloy has a high temperature environment good corrosion resistance and creep rupture strength, good mechanical properties, is widely used, below 980 ℃ have sufficient strength and corrosion resistance to oxidation.

  1. Producing a high temperature working spring, a bolt; gas turbine rotor blades on the impeller and other structures
  2. On the rocket engine thrust chamber
  3. Thrust reverser on the plane
  4. Large pressure vessel
  5. Elastic gas were mounted, flexible seal die, rubber machinery electric blade
