Type KP NiCr NiAl Chromel Alumel High Temp Alloy 1.0mm Width

Type KP NiCr NiAl Chromel Alumel High Temp Alloy 1.0mm Width
Type KP NiCr NiAl Chromel Alumel High Temp Alloy 1.0mm Width Type KP NiCr NiAl Chromel Alumel High Temp Alloy 1.0mm Width Type KP NiCr NiAl Chromel Alumel High Temp Alloy 1.0mm Width Type KP NiCr NiAl Chromel Alumel High Temp Alloy 1.0mm Width

Large Image :  Type KP NiCr NiAl Chromel Alumel High Temp Alloy 1.0mm Width

Product Details:
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001 SGS
Model Number: KP-KN
Payment & Shipping Terms:
Minimum Order Quantity: 100 KG
Price: negotiable
Packaging Details: Spool + Carton + Wooned Case
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Tons per month

Type KP NiCr NiAl Chromel Alumel High Temp Alloy 1.0mm Width

Description
Material: KP-KN NICR-NIAL Thickness: 0.1-2.5mm
Width: 1.0mm Min. Surface: Bright
HS Code: 75062000 Origin: Shanghai, China
High Light:

Chromel Alumel High Temp Alloy

,

Type KP Alumel High Temp Alloy

,

1.0mm Thermocouple High Temp Alloy

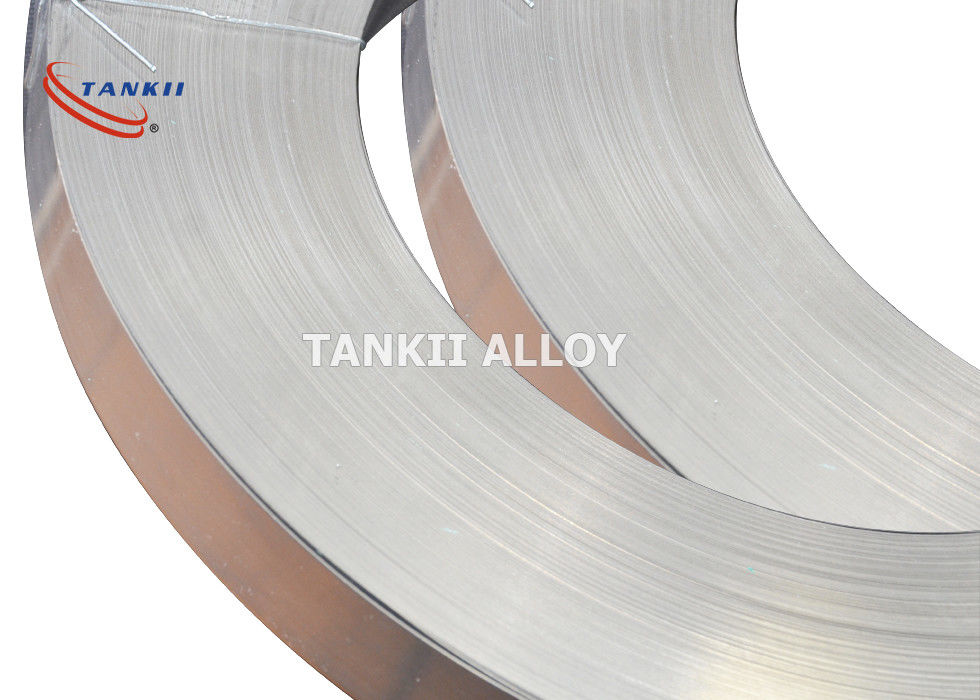

0.8mm*50mm Type KP KN thermocouple alloy Chromel Alumel  Alloy Strip

Details:

Condutor:Type KP KN strip(Chromel Alumel  alloy strip)

Status:Bright,soft
Coil weight is about 20kgs.
MOQ:100kgs(But we can offer you a discount when the quantity is large)
Lead time:15-20days.
Package:be packed with plastic bags,then packed into plywood pallet or wooden case.

TYPE K (CHROMEL vs ALUMEL ) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.

1. Chemical Composition



Material Chemical composition (%)
Ni Cr Si Mn Al
KP(Chromel) 90 10
KN(Alumel) 95   1-2 0.5-1.5 1-1.5



2. Physical properties and Mechnical properties





Material


Density(g/cm3)

Melting pointºC)

Tensile Strength(Mpa)

Volume resistivity(μΩ.cm)

Elongation rate (%)
KP(Chromel) 8.5 1427 >490 70.6(20ºC) >10
KN(Alumel) 8.6 1399 >390 29.4(20ºC) >15


3. EMF Value range at different temperature



Material EMF value Vs Pt(μV)
100ºC 200ºC 300ºC 400ºC 500ºC 600ºC
KP(Chromel) 2816~2896 5938~6018 9298~9378 12729~12821 16156~16266 19532~19676
KN(Alumel) 1218~1262 2140~2180 2849~2893 3600~3644 4403~4463 5271~5331
EMF value Vs Pt(μV)
700ºC 800ºC 900ºC 1000ºC 1100ºC
22845~22999 26064~26246 29223~29411 32313~32525 35336~35548
6167~6247 7080~7160 7959~8059 8807~8907 9617~9737



Type KP NiCr NiAl Chromel Alumel High Temp Alloy 1.0mm Width 0
