Product Details
Place of Origin: China
Brand Name: Superalloys
Certification: ISO 9001 and RoHS
Model Number: Nimonic 80A
Payment & Shipping Terms
Minimum Order Quantity: 100 KG
Price: USD 35~70 / KG
Packaging Details: Wooden case
Delivery Time: 25-30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000
Shape: |
Strip |
Condition: |
Soft |
Surface: |
Bright |
Weight Of Coil: |
25-50 KG |
Density (g/cm3): |
8.19 |
Melting Point (℃): |
1320~1365 |
Shape: |
Strip |
Condition: |
Soft |
Surface: |
Bright |
Weight Of Coil: |
25-50 KG |
Density (g/cm3): |
8.19 |
Melting Point (℃): |
1320~1365 |

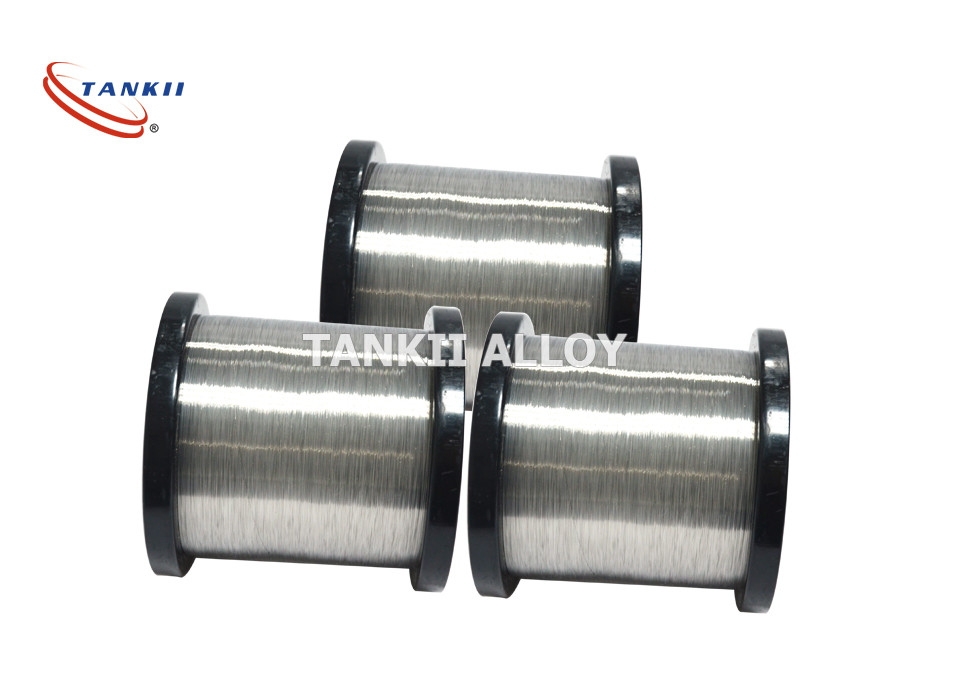

High Quality Nichrome Wire Nimonic 80A/ASTM B637/BS 3076
Application:
Ships with diesel exhaust valve mainly made of wrought Nimonic 80A. Nimonic 80A has high heat resistance, high strength at high temperatures, deformation resistance, increasing the difficulty of forging suitable for the manufacture of bolts, combustion chamber exhaust valve.
Feature: To precipitation hardening of alloys, high temperature (up to 815 ° C) with excellent elongation properties.
| Grade | Ni% | Cr% | Fe% | Mn% | Si% | P% | S% | Al% | Ti% | C% | Co% | B% | Zr% | Cu% |
| Nimonic 80A | Bal. | 18-21 | Max 3.0 | Max 1.0 | Max 1.0 | Max 0.02 | Max 0.015 | 1.0-1.8 | 1.8-2.7 | Max 0.1 | Max 2.0 | Max 0.008 | Max 0.15 | Max 0.2 |
Specifications
| Grade | UNS | Werkstoff Nr. |
| Nimonic 80A | N07080 | 2.4952 |
Physical Properties
| Grade | Density | Melting Point |
| Nimonic 80A | 8.19g/cm3 | 1320°C-1365 °C |
Mechanical Properties
| Nimonic 80A | Tensile Strength | Yield Strength σp0.2/MPa | Elongation σ5 /% |
Hardness |
| Heat Treatment (Min) | 930 N/mm² | 620 N/mm² | 20% | 300 HV |
Our Production Standard
| Nimonic 80A | Bar/Wire | Forging Parts |
| ASTM | ASTM B637 | ASTM B637 |
Mechanical properties
|
|
|
Yield Strength (Mpa) |
Tensile Strength (Mpa) |
Elongation, % |
Hardness, HB |
|
Nimonic 80A |
Solution treatment |
620 |
930 |
≤20 |
|
If you have any questions, pls write email to lisa@tankii.com
Looking forward to your inquiry!
