Product Details:
|
| Material: | Chromel Alumel | Surface: | Bright |
|---|---|---|---|
| Thickness: | 0.2mm~1.0mm | Leading Time: | 20 Days After Getting The Payment |
| Application: | -200～900 ℃ | Item: | K Type Thermocouple Strips Chromel Alumel Strips Used For Thermocouple Connector Plug / Male Tab |
| High Light: | 0.3mm K Type Thermocouple Wire,Chromel Alumel Thermocouple Bare Wire,Sensors Extension Thermocouple Bare Wire |
||

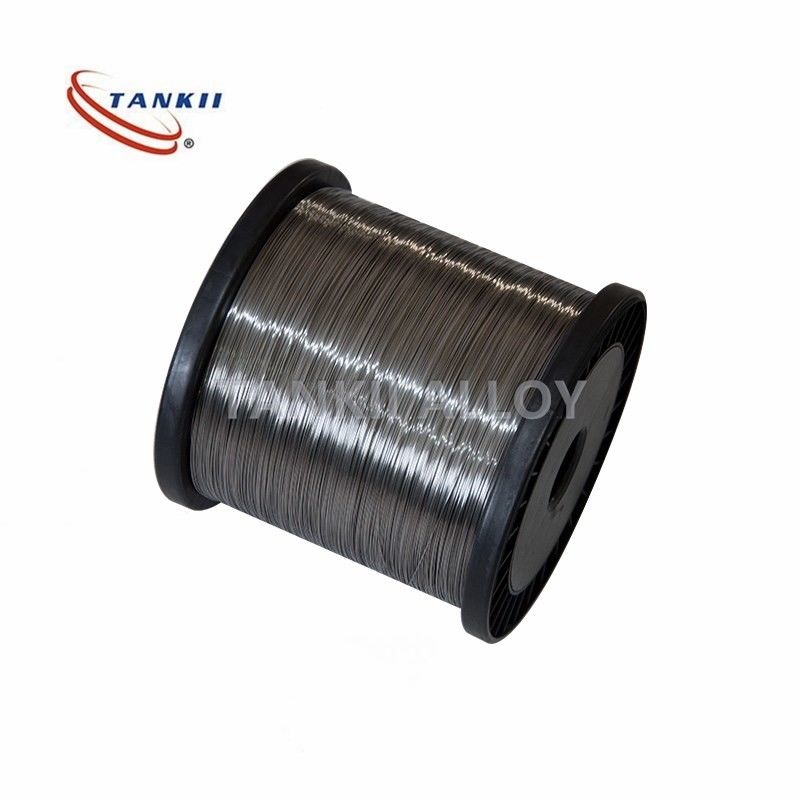

Kp/Kn 0.3mm Chromel Alume K Type Thermocouple Extension Bare Wire for Sensors
Thermocouple wire and thermocouple strip for use at temperatures up to 1260°C (2300°F).Our thermocouple wire is supplied with bright or oxidized surface according to standard or special EMF requirements.
Each individual arm is calibrated against platinum and the EMF values are shown on each coil or spool.
Our thermocouple alloys are supplied according to the following standards shown below. Where older standards are still in use (which are not equivalent to those listed below), we can supply different EMF values upon request.
Thermocouple temperature range and tolerance
| Type | Standard | Operating temperature range (°C) | Tolerance(°C) | |||
| Long term | Short term | Grade | Temperature range | Tolerance | ||
| Type K | GB/T2614 K | 1200 | 1300 | I | -40~1100 | ±1.5°C/±0.4%t |
| II | -40~1300 | ±2.5°C/±0.75%t | ||||
| Type N | GB/T17615 N | 1200 | 1300 | I | -40~1100 | ±1.5°C/±0.4%t |
| II | -40~1300 | ±2.5°C/±0.75%t | ||||
| Type E | GB/T4993 E | 750 | 900 | I | -40~800 | ±1.5°C/±0.4%t |
| II | -40~900 | ±2.5°C/±0.75%t | ||||
| Type J | GB/T4994 J | 600 | 750 | I | 0~750 | ±1.5°C/±0.4%t |
| II | ±2.5°C/±0.75%t | |||||
| Type T | GB/T2903 T | 300 | 350 | I | -40~350 | ±0.5°C/±0.4%t |
| II | ±1°C/±0.75%t | |||||
| III | -200~40 | ±1°C/±1.5%t | ||||
Tankii's thermocouple products list includes the following:
