Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: Nickel 200/Nickel Alloy 200/N6
Payment & Shipping Terms
Minimum Order Quantity: 10kg
Price: USD28-30/kg
Packaging Details: usually packed on the spool, film cover on the wire, all the spool putted in the carton, then put the carton on the wooden pallet or in the wooden case
Delivery Time: 7-10 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200ton/Year
Material: |
Pure Nickel |
Shape: |
Round Wire |
Color: |
Bright |
Temper: |
Soft |
Package: |
Packed On The Spool |
Application: |
Fuse In The Lighting |
Density: |
8.9 |
Melting Point: |
1453 |
Boiling Point: |
2732 |
Material: |
Pure Nickel |
Shape: |
Round Wire |
Color: |
Bright |
Temper: |
Soft |
Package: |
Packed On The Spool |
Application: |
Fuse In The Lighting |
Density: |
8.9 |
Melting Point: |
1453 |
Boiling Point: |
2732 |

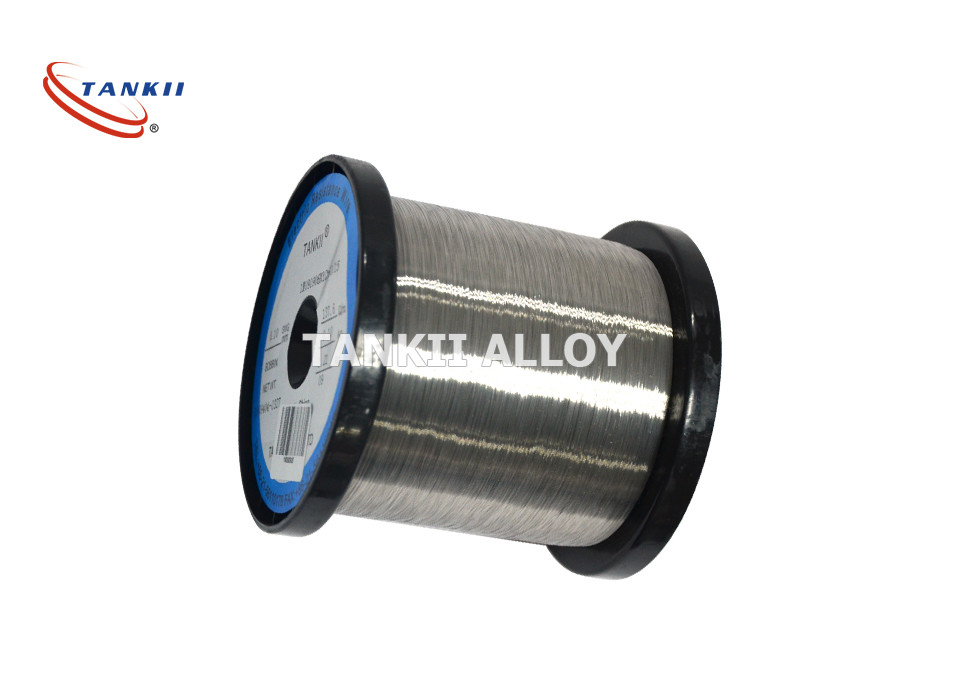

TANKII Manufactured Pure Nickel Wire Diameter 0.025mm Ni200 Purity Over 99.6%
Nickel has high chemical stability and good corrosion resistance in many media. Its standard electrode position is -0.25V, which is positive than iron and negative than copper.Nickel exhibits good corrosion resistance in the absence of dissolved oxygen in dilute non-oxidized properties (e.g., HCU, H2SO4), especially in neutral and alkaline solutions.This is because nickel has the ability to passivate, forming a dense protective film on the surface, which prevents nickel from further oxidation.
Main application fields:
Chemical and chemical engineering, generator anti-wet corrosion components (water inlet heater and steam pipe), pollution control equipment (waste gas sulfur removal equipment), etc.
5.>The purity can be reached to 99.99%, the super thin can be reached to 0.02mm
It has good mechanical strength,corrosion-resistant and heat-resistance strength.
It is widely used in electric apparatus,chemical machinery,good processing equipment,rechargeable batteriesomputers, cellular Phone, power tools, camcorders and so on.
Chemical Composition
| Grade | Element Composition/% | |||||||
| Ni+Co | Mn | Cu | Fe | C | Si | Cr | S | |
| Ni201 | ≥99.0 | ≤0.35 | ≤0.25 | ≤0.30 | ≤0.02 | ≤0.3 | ≤0.2 | ≤0.01 |
| Ni200 | ≥99.0 | /≤0.35 | ≤0.25 | ≤0.30 | ≤0.15 | ≤0.3 | ≤0.2 | ≤0.01 |
Propertis
| Density | Melting point | Coefficient of expansion | Modulus of rigidity | Modulus of elasticity | Electrical resistivity | |
| Ni200 | 8.9g/cm3 | 1446°C | 13.3 µm/m °C (20-100°C) | 81kN/mm2 | 204kN/mm2 | 9.6μW• cm |
| Ni201 | 1446°C | 13.1µm/m °C(20-100°C) | 82kN/mm2 | 207kN/mm2 | 8.5μW• cm |
| Diameter(mm) | Tolerance(mm) | Diameter(mm) | Tolerance(mm) |
| 0.03-0.05 | ±0.005 | >0.50-1.00 | ±0.02 |
| >0.05-0.10 | ±0.006 | >1.00-3.00 | ±0.03 |
| >0.10-0.20 | ±0.008 | >3.00-6.00 | ±0.04 |
| >0.20-0.30 | ±0.010 | >6.00-8.00 | ±0.05 |
| >0.30-0.50 | ±0.015 | >8.00-12.0 | ±0.4 |
Specification of Cold-drawing Strip Type
| Thickness(mm) | Tolerance(mm) | Width(mm) | Tolerance(mm) |
| 0.05-0.10 | ±0.010 | 5.00-10.0 | ±0.2 |
| >0.10-0.20 | ±0.015 | >10.0-20.0 | ±0.2 |
| >0.20-0.50 | ±0.020 | >20.0-30.0 | ±0.2 |
| >0.50-1.00 | ±0.030 | >30.0-50.0 | ±0.3 |
| >1.00-1.80 | ±0.040 | >50.0-90.0 | ±0.3 |
| >1.80-2.50 | ±0.050 | >90.0-120.0 | ±0.5 |
| >2.50-3.50 | ±0.060 | >120.0-250.0 | ±0.6 |
