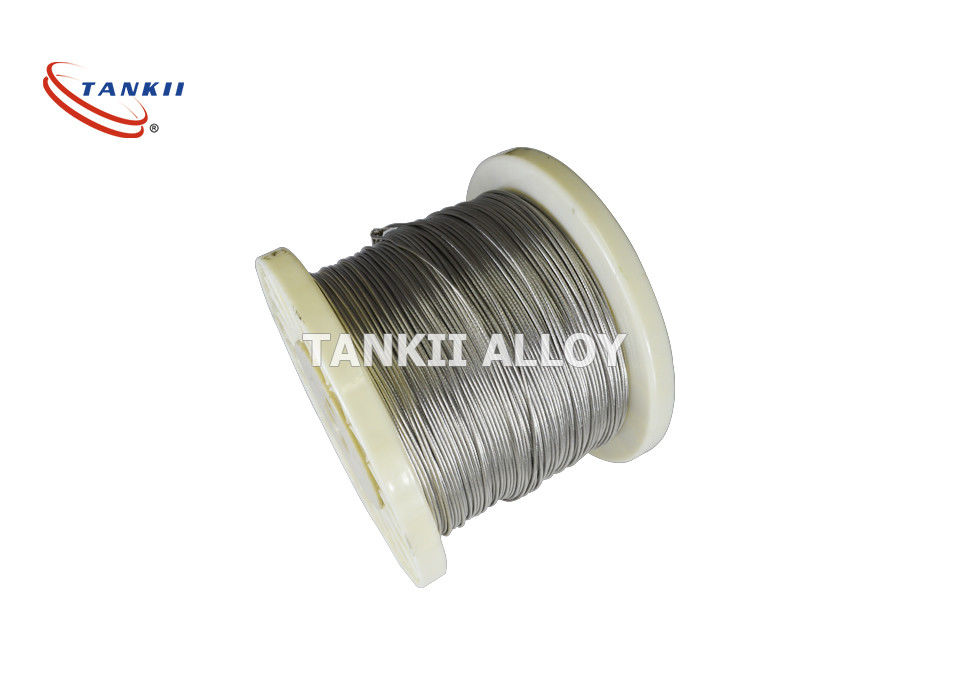

Stranded Nickel Alloy Wire Nichrome 60 / Nikrothal 6 / Mws - 675 For Resistor

Stranded Nickel Alloy Wire Nichrome 60 / Nikrothal 6 / Mws - 675 For Resistor
Stranded Nickel Alloy Wire Nichrome 60 / Nikrothal 6 / Mws - 675 For Resistor Stranded Nickel Alloy Wire Nichrome 60 / Nikrothal 6 / Mws - 675 For Resistor

Large Image :  Stranded Nickel Alloy Wire Nichrome 60 / Nikrothal 6 / Mws - 675 For Resistor

Product Details:
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: Ni60Cr15
Payment & Shipping Terms:
Minimum Order Quantity: 25 kg
Packaging Details: on spool
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 ton/30days

Stranded Nickel Alloy Wire Nichrome 60 / Nikrothal 6 / Mws - 675 For Resistor

Description
State: Bright And Annealed Soft Shape: Round Wire
Grade: NiCr Alloy Application: Industry
Condition: Soft Annealed Feature: High Resistance
High Light:

Stranded Nickel Alloy Wire

,

Stranded Heating Resistance Wire

,

Resistor Nickel Alloy Wire



Stranded Nickel Alloy Wire (Nichrome 60) /Nikrothal 6/MWS-675

N6 Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,
Electroloy, Nichrome, Alloy C, Nikrothal 6, MWS-675, Stablohm 675
N7 Nikrothal 70, Chromel 70/30, N7, Hytemco, HAI-NiCr 70, Balco, Tophet 30,
Resistohm 70, Cronix 70, Stablohm 710
N8 Chromel A, Nikrothal 80, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm
80, Cronix 80, Protoloy, Nikrothal 8, Alloy A, MWS-650, Stablohm 650

Description

Alloy Standard Strand Construction, mm Resistance,Ω/m Strand Diameter Nominal, mm Meter per Kilo
NiCr 80/20 19×0.544 0.233-0.269   26
NiCr 80/20 19×0.61 0.205-0.250
NiCr 80/20 19×0.523 0.276-0.306 2.67 30
NiCr 80/20 19×0.574   2.87 25
NiCr 80/20 37×0.385 0.248-0.302 2.76 26
NiCr 60/15 19×0.508 0.286-0.318
NiCr 60/15 19×0.523 0.276-0.304   30
Ni 19×0.574 0.020-0.027 2.87 21

Details

Propertes/Grade Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Main Chemical composition Ni Rest Rest 55.0-61.0 34.0-37.0 30.0-34.0
  Cr 20.0-23.0 28.0-31.0 15.0-18.0 18.0-21.0 18.0-21.0
  Fe ≤ 1.0 ≤ 1.0 Rest Rest Rest
Max. continuous service temp. of element 1200 1250 1150 1100 1100
Resistivity at 20oC (μ Ω · m) 1.09 1.18 1.12 1.04 1.04
Density (g/cm3) 8.4 8.1 8.2 7.9 7.9
Thermal conductivity(KJ/m· h· oC) 60.3 45.2 45.2 43.8 43.8
Coefficient of lines expansion(α × 10-6/oC) 18 17 17 19 19
Melting point (approx. )( oC) 1400 1380 1390 1390 1390
Elongation at rupture (%) > 20 > 20 > 20 > 20 > 20
Micrographic structure austenite austenite austenite austenite austenite
Magnetic properties nonmagnetic nonmagnetic nonmagnetic nonmagnetic nonmagnetic
Chemical Composition Nickel , Chrome
Condition Bright/Acid white/Oxidied Color
Grade Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe, Ni30Cr20 Ni80, Ni70,Ni60, Ni40,
Advantage Nichrome's metallurgical structure confers them a very good plasticity when cold.
Characteristics Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.





TANKII Brand Nichrome Alloy Wire NiCr6015/Nikrotahl 60
TANKII Brand Nichrome Alloy Wire NiCr6015/Nikrotahl 60
