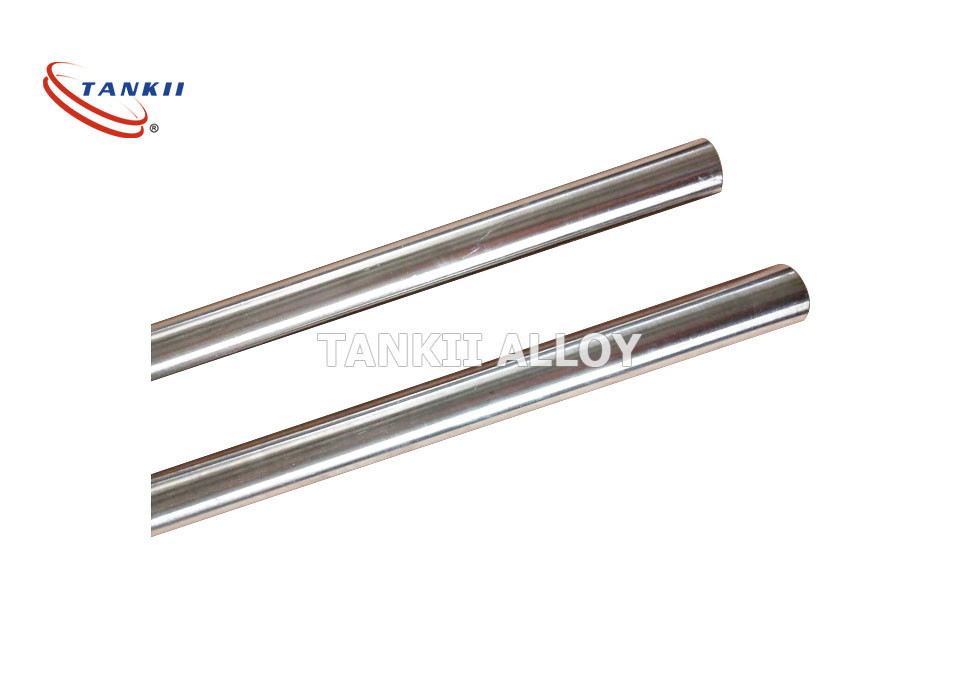

Electric Heating Resistance Rod FeCrAl 145 0cr25al5 Fecral

Product Details

Place of Origin: China Mainland

Brand Name: TANKII

Certification: ISO9001

Model Number: FeCrAl 145

Payment & Shipping Terms

Minimum Order Quantity: 5kg

Price: Negotiable

Packaging Details: Carton case

Delivery Time: 7~20 days after getting the payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 tons/year

Get Best Price
Contact Now
Specifications
Highlight:

Electric Heating Resistance Rod Fecral

,

FeCrAl 145 Resistance Rod

,

Electric Resistor Round Bar

Item:
FeCrAl Alloy 0Cr25Al5 Resistance Flat Wire / Ribbon Wire 0.12*1.2mm In Stock
MOQ:
5kg
Package:
On Bobbin, Carton Box
Leading Time:
7 Days
Application:
Resistor, Heating Elements
Item:
FeCrAl Alloy 0Cr25Al5 Resistance Flat Wire / Ribbon Wire 0.12*1.2mm In Stock
MOQ:
5kg
Package:
On Bobbin, Carton Box
Leading Time:
7 Days
Application:
Resistor, Heating Elements
Description
Electric Heating Resistance Rod FeCrAl 145 0cr25al5 Fecral

Heating Resistance Rod / Bar For Electric Resistance FeCrAl 145 0cr25al5 Fecral

General Description
FeCrAl alloy is made by a high-temperature, ferritic iron-chromium-aluminium alloy which can be used at temperatures up to 1350degrees. Typical applications for 0Cr21Al6Nb are as electrical heating elements in high-temperature furnaces in the heat treating, ceramics, glass, steel, and electronics industries.

Feature:
With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It is an environmental protection electric heating wire. And an alternative to the costly nichrome wire.Can be customized according to customer requirements



Grade
0Cr25Al5
Size
10-60mm
Surface
oxidized
Resistivity
1.42±0.07μΩ.m
Highest temperature
1250ºC
Density
7.1g/cm³
Tensile strength
750N/mm²
Elongation
≥12%
FeCrAl Alloy Grade Chemical Composition %
C P S Mn Si Cr Ni Al Fe Re Others
max(≤)
1Cr13Al4 0.12 0.025 0.025 0.7 ≤1.00 12.5-15.0 ---- 3.5-4.5 0.1 Bal.
0Cr15Al5 0.12 0.025 0.025 0.7 ≤1.00 14.5-15.5 ---- 4.5-5.3 0.1 Bal.
0Cr25Al5 0.06 0.025 0.025 0.7 ≤0.60 23.0-26.0 ≤0.60 4.5-6.5 0.1 Bal.
0Cr23Al5 0.06 0.025 0.025 0.7 ≤0.60 20.5-23.5 ≤0.60 4.2-5.3 0.1 Bal.
0Cr21Al6 0.06 0.025 0.025 0.7 ≤1.00 19.0-22.0 ≤0.60 5.0-7.0 0.1 Bal.
0Cr21Al4 0.06 0.025 0.025 0.7 ≤1.00 21.0-23.0 ≤0.60 3.0-5.2 0.1 Bal.
0Cr21Al6Nb 0.05 0.025 0.025 0.7 ≤0.60 21.0-23.0 ≤0.60 5.0-7.0 0.1 Bal.
0Cr27Al7Mo2 0.05 0.025 0.025 0.7 ≤0.40 26.5-27.8 ≤0.60 6.0-7.0 0.1 Bal.







Electric Heating Resistance Rod FeCrAl 145 0cr25al5 Fecral 0







Electric Heating Resistance Rod FeCrAl 145 0cr25al5 Fecral 1

Electric Heating Resistance Rod FeCrAl 145 0cr25al5 Fecral 2

Electric Heating Resistance Rod FeCrAl 145 0cr25al5 Fecral 3





Package of resistance wire :

Electric Heating Resistance Rod FeCrAl 145 0cr25al5 Fecral 4

Electric Heating Resistance Rod FeCrAl 145 0cr25al5 Fecral 5

Electric Heating Resistance Rod FeCrAl 145 0cr25al5 Fecral 6



Electric Heating Resistance Rod FeCrAl 145 0cr25al5 Fecral 7





Electric Heating Resistance Rod FeCrAl 145 0cr25al5 Fecral 8



Electric Heating Resistance Rod FeCrAl 145 0cr25al5 Fecral 9

Electric Heating Resistance Rod FeCrAl 145 0cr25al5 Fecral 10



Remark:




Please call me at +86-18017457857 or email (lisa@tankii.com) to me for more information on FeCrAl products.
