Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: Ni60Cr15
Payment & Shipping Terms
Minimum Order Quantity: 25 kg
Packaging Details: on spool
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 ton/30days
State: |
Bright And Annealed Soft |
Shape: |
Round Wire |
Grade: |
NiCr Alloy |
Application: |
Industry |
Condition: |
Soft Annealed |
Feature: |
High Resistance |
State: |
Bright And Annealed Soft |
Shape: |
Round Wire |
Grade: |
NiCr Alloy |
Application: |
Industry |
Condition: |
Soft Annealed |
Feature: |
High Resistance |

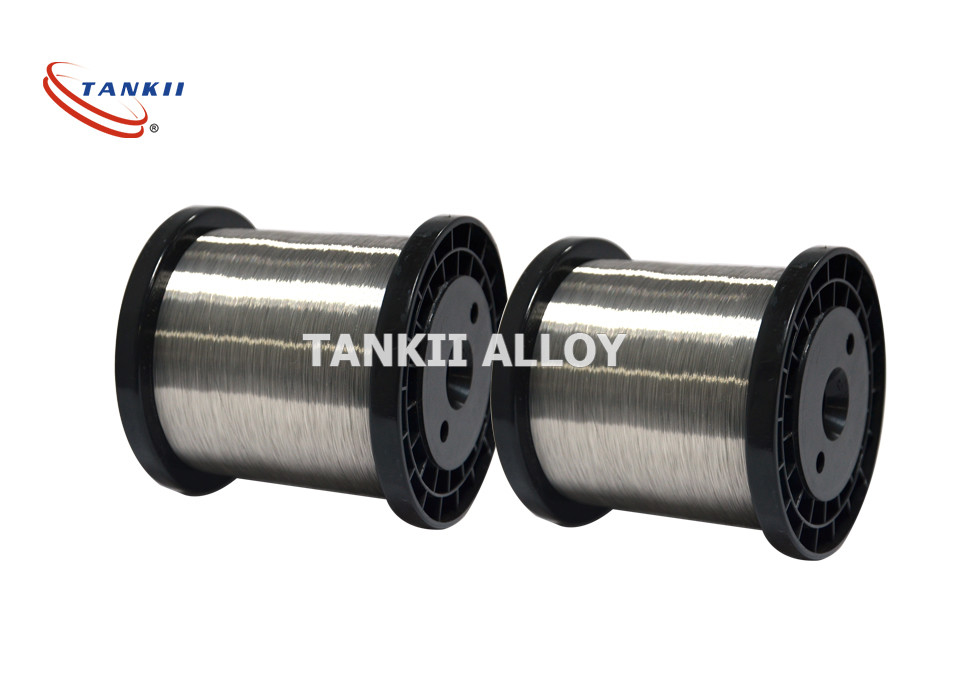

Sheathed Tubular Elements 1.4867 Resistance Wire Nicr6015 for Electric Heating Elements
Nickel chromium alloy with iron resistance electrothermal high resistivity, surface body sexual well. At high
temperature and high intensity, and a good performance and processing may welding nature widely used
metallurgical, electrical, mechanical components and electrical manufacturing industries for doing heat
resistance material.
Typical applications include metal-sheathed tubular elements used in hot plates, grills, toaster ovens, storage heaters, etc
NiCr Type:Cr20Ni80,Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr25Ni20 etc.Series electric flat belt, electric fire wire.
3.Product size:
Round wire dia.0.02-12mm;
flat strip thickness 0.03-5mm,flat strip width0.2-500mm.
1.4867 / NC6015 Resistance Wire 0.3mm Used For Metal-Sheathed Tubular Elements
Ni60Cr15
Chemical Content, %
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.08 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 15.0~18.0 | 55~61 | max 0.5 | Bal | - |
Mechanical Properties
| Max Continuous Service: Resisivity( 20ºC)/Ω·m: Density: Thermal Conductivity: Coefficient of Thermal Expansion: Melting Point: Elongation: Micrographic Structure: Magnetic Property |
1150ºC 1.11 +/-0.05 8.2 g/cm3 45.2 KJ/m·h·ºC 17.0 α×10-6/ºC 1390 ºC Min 20% Austenite Slightly |
1.4867 / NC6015 Resistance Wire 0.3mm Used For Metal-Sheathed Tubular Elements
Our Nichrome alloy are in the form of wire, ribbon, strip, coil.
Delivery conditions are:
Nichrome products sizes are:
Wire: 0.025mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.02*5.0mm-5.0*250mm
Bar: 10-100mm
Rohs Certified 1.4867 NiCr6015/NC6015 Resistance Wire 0.3mm Used Electronic Instruments
NiCr 80:20 - Industrial furnaces (upto 1200°C), electric cooking equipment, precision resistors.
NiCr 70:30 - Industrial furnaces (upto 1230°C) with alternating oxidizing/reducing atmosphere, precision resistors.
NiCr 60:15 - Industrial furnaces (upto 1100°C), electrically heated equipment, high-resistance and potentiometer resistors.
NiCr 40:20 - Domestic heating appliances (upto 1050°C), furnaces in carburising or semi-reducing atmosphere.
NiCr 30:20/ NiCr 20:25 - Industrial furnaces (upto 1050°C), heating elements of cooking equipment.
Application:
| Alloy | Standard Strand Construction, mm | Resistance,Ω/m | Strand Diameter Nominal, mm | Meter per Kilo |
| NiCr 80/20 | 19×0.544 | 0.233-0.269 | 26 | |
| NiCr 80/20 | 19×0.61 | 0.205-0.250 | ||
| NiCr 80/20 | 19×0.523 | 0.276-0.306 | 2.67 | 30 |
| NiCr 80/20 | 19×0.574 | 2.87 | 25 | |
| NiCr 80/20 | 37×0.385 | 0.248-0.302 | 2.76 | 26 |
| NiCr 60/15 | 19×0.508 | 0.286-0.318 | ||
| NiCr 60/15 | 19×0.523 | 0.276-0.304 | 30 | |
| Ni | 19×0.574 | 0.020-0.027 | 2.87 | 21 |
| Propertes/Grade | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Main Chemical composition | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤ 1.0 | ≤ 1.0 | Rest | Rest | Rest | |
| Max. continuous service temp. of element | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20oC (μ Ω · m) | 1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density (g/cm3) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Thermal conductivity(KJ/m· h· oC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion(α × 10-6/oC) | 18 | 17 | 17 | 19 | 19 | |
| Melting point (approx. )( oC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation at rupture (%) | > 20 | > 20 | > 20 | > 20 | > 20 | |
| Micrographic structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic properties | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | |
| Chemical Composition | Nickel , Chrome |
| Condition | Bright/Acid white/Oxidied Color |
| Grade | Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe, Ni30Cr20 Ni80, Ni70,Ni60, Ni40, |
| Advantage | Nichrome's metallurgical structure confers them a very good plasticity when cold. |
| Characteristics | Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots. |
