Lamp Grade Dumet Wire For Sealing Material 0.25 - 0.50mm

Name: Lamp Grade Dumet Wire For Sealing Material 0.25 - 0.50mm
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Dumet
Price: 499.05 USD
Availability: InStock

Product Details

Place of Origin: China Mainland

Brand Name: Tankii

Certification: ISO

Model Number: Dumet

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: In small bucket , Wooden case

Delivery Time: 5~10 days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 5000kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Lamp Grade Dumet Wire, Lamp Sealing Dumet Wire, Dumet Light Bulb Wire


Material:	Nickel Alloy	Size:	0.2~1.42mm
HS:	7408229000	Chemical:	Ni 41~43%, Fe Balance
Cu:	24-26%	Type:	Bare
Application:	Sealing Material	Color:	Red, Light Golden, Bright
Product Name:	Dumet Wire 0.35mm Red Color Used As Sealing Material For All Kinds Of Light Bulb

Material:	Nickel Alloy
Size:	0.2~1.42mm
HS:	7408229000
Chemical:	Ni 41~43%, Fe Balance
Cu:	24-26%
Type:	Bare
Application:	Sealing Material
Color:	Red, Light Golden, Bright
Product Name:	Dumet Wire 0.35mm Red Color Used As Sealing Material For All Kinds Of Light Bulb

Description

Lamp Grade Dumet Wire For Sealing Material 0.25 - 0.50mm

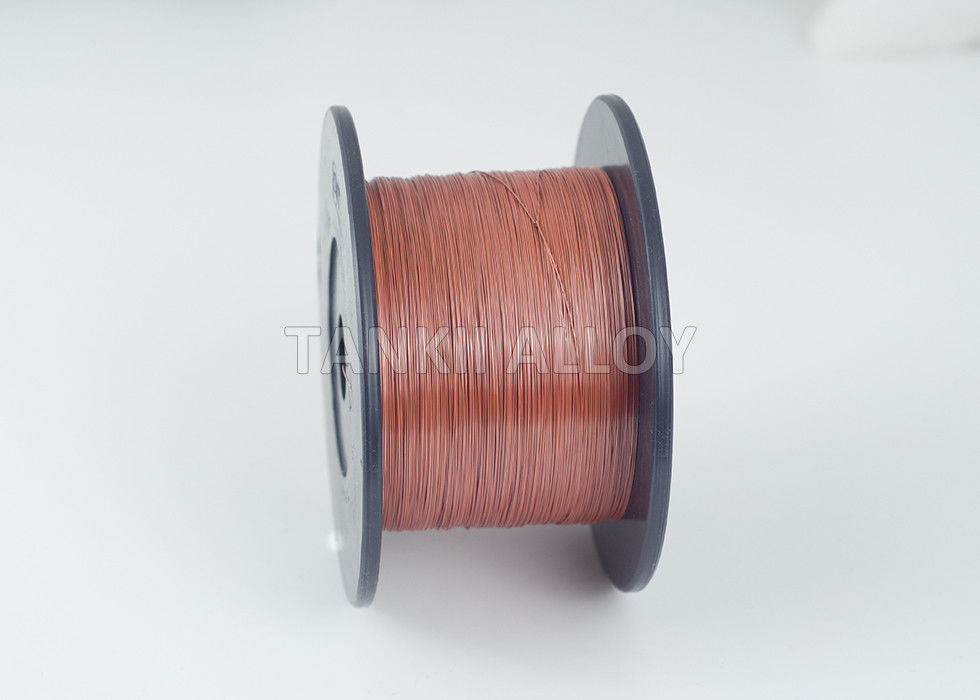

Dumet Wire 0.35mm Red Color Used as Sealing Material For All Kinds of Light Bulb

Ni 41~43%, Fe Balance

Dumet wire is the basic metal component of a Lead-in-Wire providing the required vacuum tight glass-to-metal seal. Dumet consists of a base wire and a sheath. The ratio of both compounds should be in well-balanced proportions. Only then is it guaranteed to obtain a vacuum tight conductor through glass. This principle is used mainly in the lighting and diode production.

Dumet wire consists of a nickel-iron core in an oxygen-free-high-conductivity copper sheath. It is available in various surface finishes: Electrically oxidised, borax coated, nickel plated, bare (uncoated).
Borated surface finish Dumet is used in Lead-in-wires for lamps. Dumet forms a glass-to-metal seal while manufacturing these lamps. The oxidised Dumet is used in Lead-in-wires, diodes and capacitor slug leads application.

Dimeter 0.2mm-0.6mm

	Ni%	C%	Mn%	Si%	S%	P%	Fe%
Core	41 - 43	0.05 max	1.0 max	0.30 max	0.02 max	0.02 max	Rest

White dumet

Product group	Use	Specifications	Technical parameters
White dumet	Insert type bulb for auto light and motorcycle light	Φ0.2-0.5mm	Ni(core wire)	41-43%
			Cu	24-26%
			Tensile strength	≤65kg/mm²
			elongation	≥20%
			Expansion coefficient	Radial:82-9210-7cm/cm/ºC Axial:62-6510-7cm/cm/ºC

Bright (anti humidity) dumet

Product group	Use	Specifications	Technical parameters
Bright (anti humidity) dumet	Lighting energy-saving lamps, ordinary lamp, small round bulb etc	Φ0.3-0.5mm	Ni(core wire)	41-43%
			Cu	21-30%
			Tensile strength	≤65kg/mm²
			elongation	≥20%
			Expansion coefficient	Radial:82-9210-7cm/cm/ºC Axial:62-6510-7cm/cm/ºC

Yellow dumet

Product group	Use	Specifications	Technical parameters
Yellow dumet	Energy-saving lamps, auto lamp light use	Φ0.3-0.5mm	Ni(core wire)	41-43%
			Cu	23-28%
			Tensile strength	≤65kg/mm²
			elongation	≥20%
			Expansion coefficient	Radial:82-9210-7cm/cm/ºC Axial:62-6510-7cm/cm/ºC

Red dumet

Product group	Use	Specifications	Technical parameters
Red dumet	General bulb, holiday light, mini bulb, Christmas lights, small round bulb	Φ0.3-0.5mm	Ni(core wire)	41-43%
			Cu	21-23%
			Tensile strength	≤65kg/mm²
			elongation	≥20%
			Expansion coefficient	Radial:82-9210-7cm/cm/ºC Axial:62-6510-7cm/cm/ºC

Tankii Package:

Carton Box, Wooden case

Delivery time: 5~20 days as per the order qty

Lamp Grade Dumet Wire For Sealing Material 0.25 - 0.50mm 0

Lamp Grade Dumet Wire For Sealing Material 0.25 - 0.50mm 1
