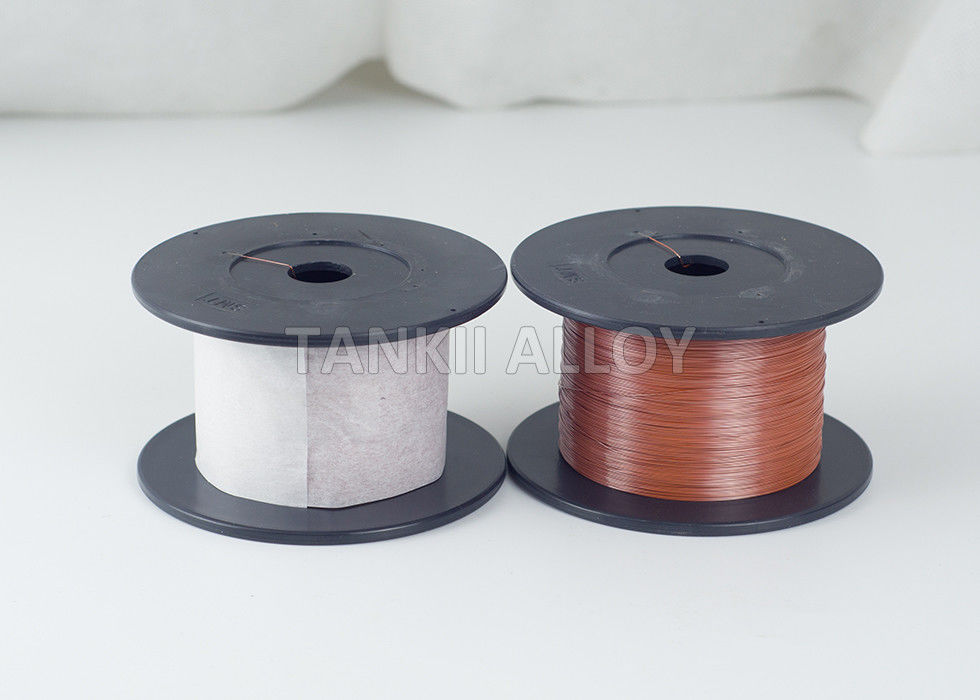

0.35mm Sealing Material Bare Dumet Wire For Light Bulb

0.35mm Sealing Material Bare Dumet Wire For Light Bulb
0.35mm Sealing Material Bare Dumet Wire For Light Bulb

Large Image :  0.35mm Sealing Material Bare Dumet Wire For Light Bulb

Product Details:
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO
Model Number: Dumet
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In small bucket , Wooden case
Delivery Time: 5~10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000kg/month

0.35mm Sealing Material Bare Dumet Wire For Light Bulb

Description
Material: Nickel Alloy Size: 0.2~1.42mm
HS: 7408229000 Chemical: Ni 41~43%, Fe Balance
Cu: 24-26% Type: Bare
Application: Sealing Material Color: Red, Light Golden, Bright
Product Name: Dumet Wire 0.35mm Red Color Used As Sealing Material For All Kinds Of Light Bulb
High Light:

Light Bulb Bare Dumet Wire

,

Sealing Material Dumet Wire

,

Dumet Lamp Wire 0.35mm

Dumet Wire 0.35mm Red Color Used as Sealing Material For All Kinds of Light Bulb



Ni 41~43%, Fe Balance

Dumet wire is the basic metal component of a Lead-in-Wire providing the required vacuum tight glass-to-metal seal. Dumet consists of a base wire and a sheath. The ratio of both compounds should be in well-balanced proportions. Only then is it guaranteed to obtain a vacuum tight conductor through glass. This principle is used mainly in the lighting and diode production.

Dumet wire consists of a nickel-iron core in an oxygen-free-high-conductivity copper sheath. It is available in various surface finishes: Electrically oxidised, borax coated, nickel plated, bare (uncoated).
Borated surface finish Dumet is used in Lead-in-wires for lamps. Dumet forms a glass-to-metal seal while manufacturing these lamps. The oxidised Dumet is used in Lead-in-wires, diodes and capacitor slug leads application.


In order to produce dumet wire, some key processes must be precisely controlled.
In the set-up line, the cladding is realized: a Copper clad on a core wire (e.g. Nickel-Iron).
This
Copper cladded wire is welded to achieve an endless length and drawn to obtain the requested diameter.
Finally the surface of the dumet has to be treated to guarantee a good adhesion to the glass.
Depending on the application requirements this well-defined surface treatment can be done in either ways: Borating, oxidizing or nickel-plating.


Dimeter 0.2mm-0.6mm



  Ni% C% Mn% Si% S% P% Fe%
Core 41 - 43 0.05 max 1.0 max 0.30 max 0.02 max 0.02 max Rest






White dumet

Product group Use Specifications Technical parameters
White dumet Insert type bulb for auto light and motorcycle light Φ0.2-0.5mm Ni(core wire) 41-43%
Cu 24-26%
Tensile strength ≤65kg/mm²
elongation ≥20%
Expansion coefficient Radial:82-92*10-7cm/cm/ºC
Axial:62-65*10-7cm/cm/ºC



Bright (anti humidity) dumet

Product group Use Specifications Technical parameters
Bright (anti humidity) dumet Lighting energy-saving lamps, ordinary lamp, small round bulb etc Φ0.3-0.5mm Ni(core wire) 41-43%
Cu 21-30%
Tensile strength ≤65kg/mm²
elongation ≥20%
Expansion coefficient Radial:82-92*10-7cm/cm/ºC
Axial:62-65*10-7cm/cm/ºC



Yellow dumet

Product group Use Specifications Technical parameters
Yellow dumet Energy-saving lamps, auto lamp light use Φ0.3-0.5mm Ni(core wire) 41-43%
Cu 23-28%
Tensile strength ≤65kg/mm²
elongation ≥20%
Expansion coefficient Radial:82-92*10-7cm/cm/ºC
Axial:62-65*10-7cm/cm/ºC



Red dumet

Product group Use Specifications Technical parameters
Red dumet General bulb, holiday light, mini bulb, Christmas lights, small round bulb Φ0.3-0.5mm Ni(core wire) 41-43%
Cu 21-23%
Tensile strength ≤65kg/mm²
elongation ≥20%
Expansion coefficient Radial:82-92*10-7cm/cm/ºC
Axial:62-65*10-7cm/cm/ºC



0.35mm Sealing Material Bare Dumet Wire For Light Bulb 0



Tankii Package:

Carton Box, Wooden case

Delivery time: 5~20 days as per the order qty



0.35mm Sealing Material Bare Dumet Wire For Light Bulb 1

0.35mm Sealing Material Bare Dumet Wire For Light Bulb 2

0.35mm Sealing Material Bare Dumet Wire For Light Bulb 3
