1/16 Inch 1.6mm NiCr 6015 Thermal Spray Wire For Bond Coating

Product Details

Place of Origin: CHINA

Brand Name: TANKII

Certification: ISO9001

Model Number: NiCr6015

Payment & Shipping Terms

Minimum Order Quantity: 15KG

Price: Negotiation

Packaging Details: On Spool

Delivery Time: 5-10 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20, 000kg/month

Get Best Price
Contact Now
Specifications
Highlight:

NiCr 6015 Thermal Spray Wire

,

Bond Coating Thermal Spray Wire

,

Thermal Spray Nichrome Alloy Wire

Package:
15kg/spool
State:
Bright Annealed
Diameter:
1.6mm,2.0mm
Package:
15kg/spool
State:
Bright Annealed
Diameter:
1.6mm,2.0mm
Description
1/16 Inch 1.6mm NiCr 6015 Thermal Spray Wire For Bond Coating

1/16 Inch 1.6mm NiCr6015 Thermal Spray Wire for Bond Coating



Nickel chromium alloy with iron resistance electrothermal high resistivity, surface body sexual well. At high
temperature and high intensity, and a good performance and processing may welding nature widely used
metallurgical, electrical, mechanical components and electrical manufacturing industries for doing heat
resistance material.

Typical applications include metal-sheathed tubular elements used in hot plates, grills, toaster ovens, storage heaters, etc
1.About Nichrome NiCr6015 wire
Nichrome alloy NiCr6015 characterized by high resistivity, good oxidation resistance ,good form stability and good ductility and excellent weldability. It is suitable for use at temperatures up to 1150°C.

2.NiCr6015 has many other Grade name:
Ni60Cr15,Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,Electroloy, Nichrome, Alloy C, Alloy 675,Nikrothal 6, MWS-675, Stablohm 675,NiCrC

3.Chemical Composition of NiCr6015
C P S Mn Si Cr Ni Al Fe Other
Max
0.08 0.02 0.015 0.60 0.75~1.60 15.0~18.0 55.0~61.0 Max 0.50 Bal. -

4.Typical Mechanical properties of Nicr6015
Yield strength Tensile Strength Elongation
Mpa Mpa %
370 730 35

5.Temperature Factors Of Electrical Resistivity
20ºC 100ºC 200ºC 300ºC 400ºC 500ºC 600ºC
1 1.011 1.024 1.038 1.052 1.064 1.069
700ºC 800ºC 900ºC 1000ºC 1100ºC 1200ºC 1300ºC
1.073 1.078 1.088 1.095 1.109 - -


Applications:
—For vacuum coating
—For making valves grid, inner components of vacuum valves
—Components insides the electron tubes
—For making lead, supporting wire
—For Electronic components
—For battery production
—Strong base of the filter
—manufacture of connections for heating elements as well as heating spirals in spark-plugs

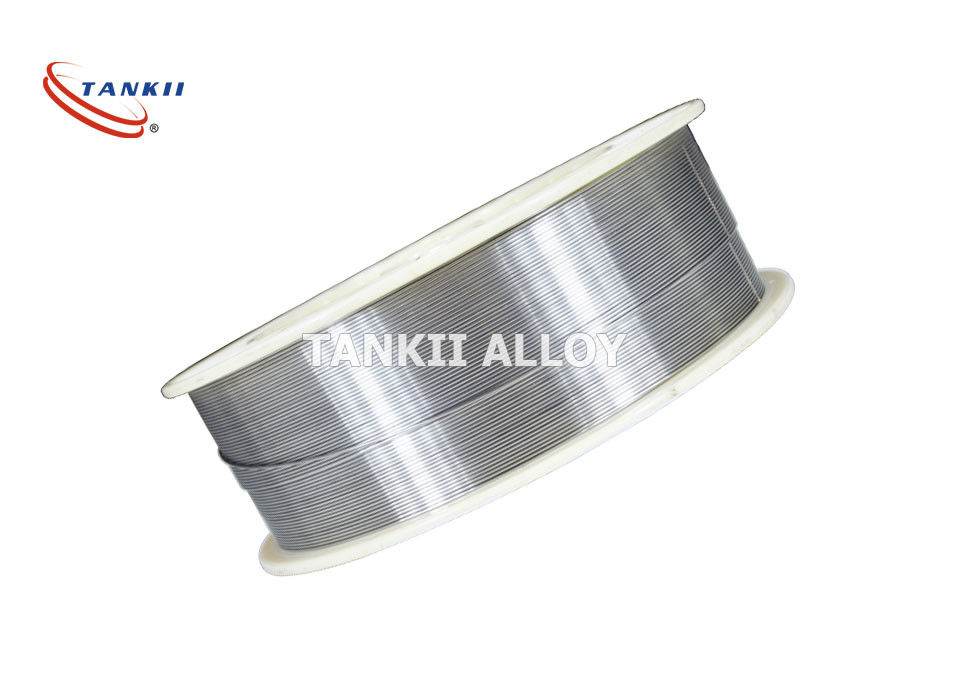

1/16 Inch 1.6mm NiCr 6015 Thermal Spray Wire For Bond Coating 01/16 Inch 1.6mm NiCr 6015 Thermal Spray Wire For Bond Coating 1
1/16 Inch 1.6mm NiCr 6015 Thermal Spray Wire For Bond Coating 2
1/16 Inch 1.6mm NiCr 6015 Thermal Spray Wire For Bond Coating 3
1/16 Inch 1.6mm NiCr 6015 Thermal Spray Wire For Bond Coating 4


Packaging & Shipping

Packaging: Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)
For the Thermal spray wires, we pack the wires on spools. Then put spools into cartons, Then put the cartons onto pallet.
Shipping: We cooperation with many logistics company, We can provide express, sea transportation, air transportation, and rail way transportation based on customers' requirement.





Our Services

1) We can provide a free sample for testing.
2) Customized lable, packing, OEM service
3) Mill test certificate will be provided after production, If it is necessary.
4) Good packing methods to keep goods no damage during delivery
5) We are cooperation with many famous forwarder, will try our best to choose the safety, convenience, quick, and cheap mode of transportation for our customers.
