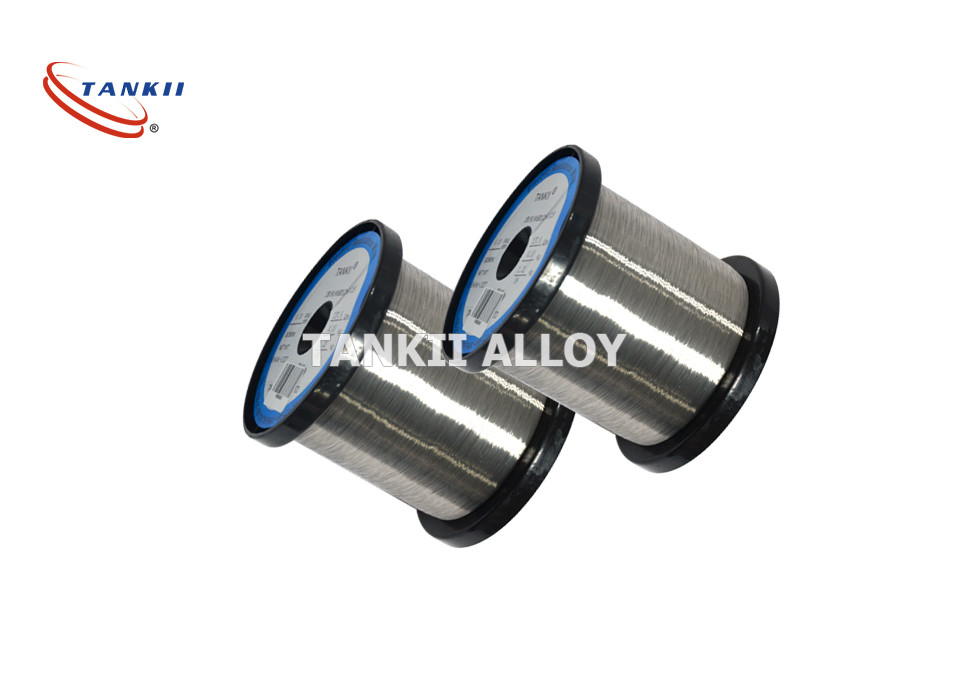

CN49W Bright Annealed Alloy Electric Resistance Wire For Elements 0.37mm

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001,SGS

Model Number: CuNi 44

Payment & Shipping Terms

Minimum Order Quantity: 5kg

Payment Terms: Western Union, T/T

Get Best Price
Contact Now
Specifications
Highlight:

Heating Resistance Wire Bright Annealed

,

Electric High Resistance Wire 0.37mm

,

Alloy Heat Resistant Electrical Cable CN49W

State:
Bright Annealed
Color:
Bright
Grade:
CuNi 44
Conductor Material:
Copper
Jacket:
None
Color:
Requirement
State:
Bright Annealed
Color:
Bright
Grade:
CuNi 44
Conductor Material:
Copper
Jacket:
None
Color:
Requirement
Description
CN49W Bright Annealed Alloy Electric Resistance Wire For Elements 0.37mm

CuNi44 /CN49W Alloy Wires Bright Annealed Resistance Wire DIN125 0.37mm for electric elements

1. CuNi44, also called Constantan, has a very low temperature coefficient, high electrical resistance, high ductility and non-corroding properties. It is suitable for use at temperatures up to 600° C (1110° F). As a very malleable, very ductile alloy, it has a very good resistance to oxidation.

The alloy is non-magnetic. It is suitable for electrical resistors, potentiometers, heating wires, heating cables and mats. Ribbons are used for heating of bimetals. Another field of application is manufacturing of thermocouples because it develops a high electromotive force (EMF) in association with others metals.

2. Chemical Composition
Alloy Ni% Mn% Fe% Cu%
CuNi44 43 Max 0.5 - Bal.

3. Products and services
1. Pass: ISO9001 certification;
2. Fine after-sale services;
3. Small order accepted;
4. Samples available;

4. Size
Wires: 0.018-10mm Ribbons: 0.05*0.2-2.0*6.0mm
Strips: 0.08*5.0-5.0*250mm Bars: D10-100mm

Chemical Content, %

Ni Mn Fe Si Cu Other ROHS Directive
Cd Pb Hg Cr
44 1% 0.5 - Bal - ND ND ND ND

Mechanical Properties
Max Continuous Service Temp 400ºC
Resisivity at 20ºC 0.49±5%ohm mm2/m
Density 8.9 g/cm3
Thermal Conductivity -6(Max)
Melting Point 1280ºC
Tensile Strength,N/mm2 Annealed,Soft 340~535 Mpa
Tensile Strength,N/mm3 Cold Rolled 680~1070 Mpa
Elongation(anneal) 25%(Min)
Elongation(cold rolled) ≥Min)2%(Min)
EMF vs Cu, μV/ºC (0~100ºC) -43
Micrographic Structure austenite
Magnetic Property Non


Application of Constantan
Constantan is a copper-nickel alloy that contains specific minor amounts of additional
elements to achieve precise values for the temperature coefficient of resistivity. Careful
control of melting and conversion practices results in a very low level of pinholes at
ultra-thin thicknesses. The alloy is used extensively for foil resistors and strain gauges.




Resistance Alloy- Constantan Sizes / Temper Capabilities
Condition: Bright, Annealed, Soft
Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
Rod, Bar diameter 1mm-30mm
Strip: Thickness 0.01mm-7mm, Width 1mm-280mm

Resistance alloy constantan wire material:

Constantan, CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi40 (6J40), CuNi44.
Characteristics
Constantan has a number of special characteristics due to which it is known as the most versatile alloy that is available. Some of its important characteristics are:
High specific heat resistance
Negligible temperature Coefficient
Easily ductile
Resistant to atmospheric corrosion
Can be easily soldered and molded





OTHER Chemical Composition

1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.

2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.

4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.

5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.

6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays. Pls contact with me whenever you need: Mobile: +86-18017457857
