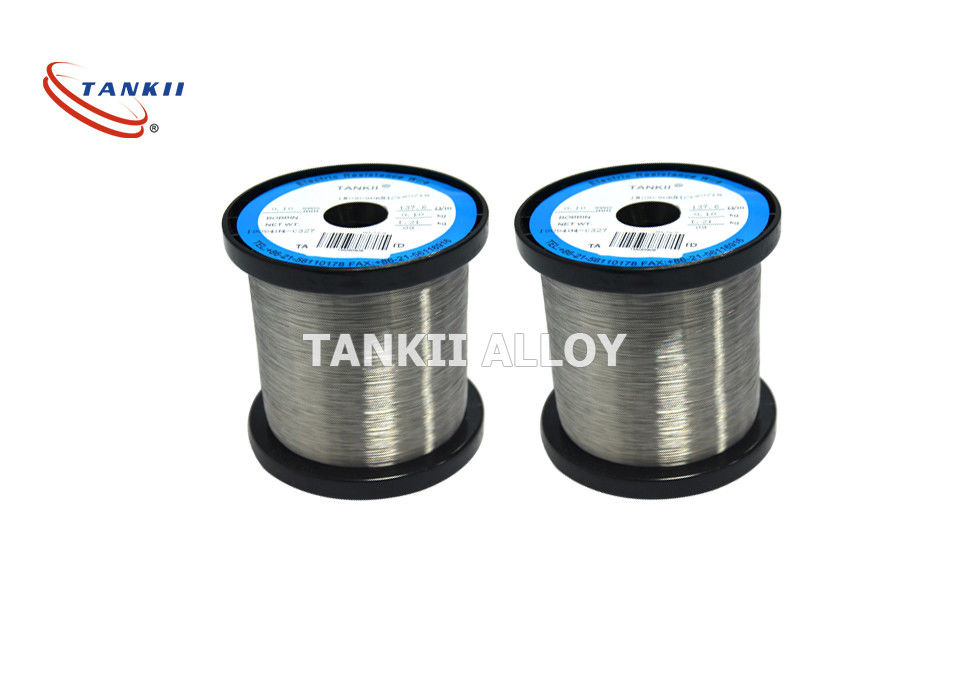

Constantan Low Resistance Wire Copper Nickel Alloy Type T Thermocouples

Constantan Low Resistance Wire Copper Nickel Alloy Type T Thermocouples
Constantan Low Resistance Wire Copper Nickel Alloy Type T Thermocouples Constantan Low Resistance Wire Copper Nickel Alloy Type T Thermocouples Constantan Low Resistance Wire Copper Nickel Alloy Type T Thermocouples

Large Image :  Constantan Low Resistance Wire Copper Nickel Alloy Type T Thermocouples

Product Details:
Place of Origin: China
Brand Name: TANKII
Certification: ISO9001,SGS
Model Number: CuNi 44
Payment & Shipping Terms:
Minimum Order Quantity: 5kg
Payment Terms: Western Union, T/T

Constantan Low Resistance Wire Copper Nickel Alloy Type T Thermocouples

Description
Application: Construction Conductor Material: Copper
Jacket: Rubber Insulation: XLPE
Conductor: 7/19 Stranded Copper Name: Fire Resistant Cables
High Light:

Constantan Low Resistance Wire

,

Low Resistance Wire Type T Thermocouples

,

Copper Nickel Wire Low Resistance

Low Resistance Constantan Copper Nickel Alloy / CuNi 44 Wire

Constantan Wire Definition

Resistance alloy with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". CuNi44 Alloy wire also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits. CuNi44/ CuNi40 /CuNi45 Constantan Copper Nickel Alloy Wire is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.

Chemical Content, %

Ni Mn Fe Si Cu Other ROHS Directive
Cd Pb Hg Cr
44 1.50% 0.5 - Bal - ND ND ND ND

Mechanical Properties
Max Continuous Service Temp 400ºC
Resisivity at 20ºC 0.49±5%ohm mm2/m
Density 8.9 g/cm3
Thermal Conductivity -6(Max)
Melting Point 1280ºC
Tensile Strength,N/mm2 Annealed,Soft 340~535 Mpa
Tensile Strength,N/mm3 Cold Rolled 680~1070 Mpa
Elongation(anneal) 25%(Min)
Elongation(cold rolled) ≥Min)2%(Min)
EMF vs Cu, μV/ºC (0~100ºC) -43
Micrographic Structure austenite
Magnetic Property Non


Constantan Wire Tradenames:
Cuprothal, Alloy 294, Cuprothal 294, Nico, MWS-294, Cupron, Copel, Alloy 45,
Neutrology, Advance, CuNi 102, Cu-Ni 44, Konstantan





OTHER Chemical Composition

1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.

2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.

4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.

5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.

6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays. Pls contact with me whenever you need: Mobile: +86-18017457857
