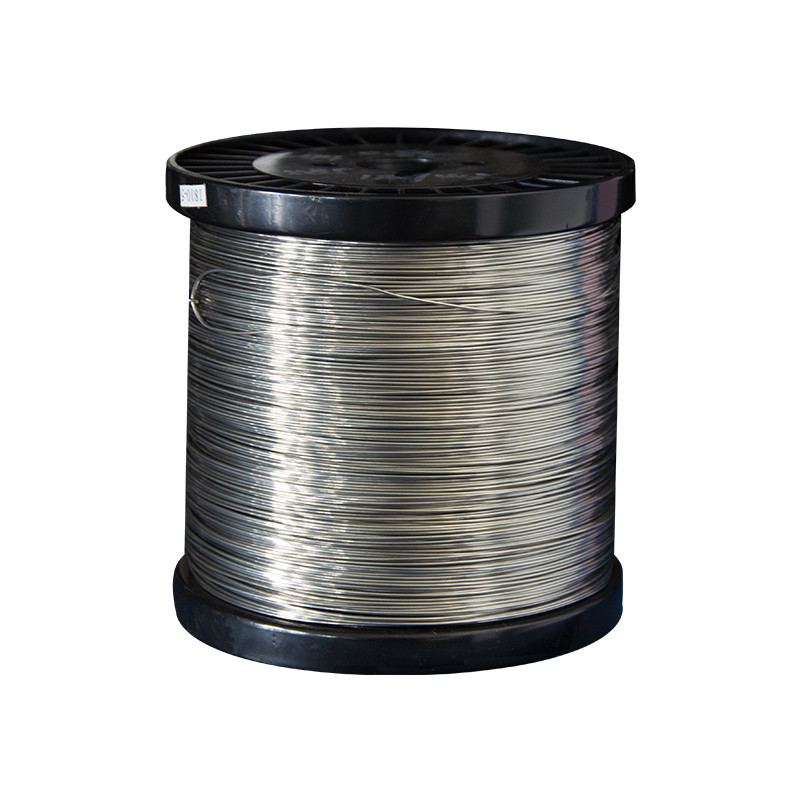

CuNi44 Anti Oxidation Electric Resistance Wire Constantan Copper Nickel Alloy

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001,SGS

Model Number: CuNi 44

Payment & Shipping Terms

Minimum Order Quantity: 5kg

Get Best Price
Contact Now
Specifications
Highlight:

Heating Resistance Wire Anti Oxidation

,

Constantan Copper Resistance Heating Wire

,

Heating Copper Wire Electric Resistance CuNi44

Application:
Construction
Conductor Material:
Copper
Insulation Material:
XLPE
Color:
Requirement
Insulation:
PVC
Name:
Fire Resistant Cables,fire Retardant Rated Proof Electrical Wrie
Sheath:
PVC
Application:
Construction
Conductor Material:
Copper
Insulation Material:
XLPE
Color:
Requirement
Insulation:
PVC
Name:
Fire Resistant Cables,fire Retardant Rated Proof Electrical Wrie
Sheath:
PVC
Description
CuNi44 Anti Oxidation Electric Resistance Wire Constantan Copper Nickel Alloy

Constantan Strip (CuNi44Mn) Copper Nickel Electric Resistance Heating Ribbon

Constantan Wire Definition

Resistance alloy with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". CuNi44 Alloy wire also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits. CuNi44/ CuNi40 /CuNi45 Constantan Copper Nickel Alloy Wire is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.

Chemical Content(%) CuNi44

Ni Mn Fe Si Cu Other ROHS Directive
Cd Pb Hg Cr
44 1.50% 0.5 - Bal - ND ND ND ND

Mechanical Properties CuNi44

Max Continuous Service Temp 400 ºC
Resistivity at 20ºC 0.49 ± 5% ohm*mm2/m
Density 8.9 g/cm3
Temperature Coefficient of Resistance < -6 ×10-6/ºC
EMF VS Cu (0~100ºC) -43 μV/ºC
Melting Point 1280 ºC
Tensile Strength Min 420 Mpa
Elongation Min 25%
Micrographic Structure Austenite
Magnetic Property Non.


Product features:

1)Excellent anti-oxidation and mechanical strength at high temperature;

2)High resistivity and low temperature coefficient of resistance;

3)Excellent reelability and forming performance;

4)Excellent welding performace







OTHER Chemical Composition

1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.

2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.

4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.

5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.

6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays. Pls contact with me whenever you need: Mobile: +86-18017457857
