Product Details
Place of Origin: China Mainland
Brand Name: TANKII
Certification: ISO9001
Model Number: NiCr6015
Payment & Shipping Terms
Minimum Order Quantity: 10g to 1kg
Price: Negotiable
Packaging Details: Carton case
Delivery Time: 7~20 days after getting the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 tons/year
Item: |
ISO Certified 46 SWG Nikrothal 60 Resistance Superfine Wire For Aerospace Instruments |
Size: |
46SWG-（0.06mm） |
MOQ: |
1 Spool |
Application: |
Precision Resistor, Heating Wire |
Package: |
Bobbin, Spools, Carton Box |
Leading Time: |
3 -10 Dyas After Getting The Payment |
Certificate: |
Mill's Test Certificate |
Supplier: |
Shanghai Tankii |
Item: |
ISO Certified 46 SWG Nikrothal 60 Resistance Superfine Wire For Aerospace Instruments |
Size: |
46SWG-（0.06mm） |
MOQ: |
1 Spool |
Application: |
Precision Resistor, Heating Wire |
Package: |
Bobbin, Spools, Carton Box |
Leading Time: |
3 -10 Dyas After Getting The Payment |
Certificate: |
Mill's Test Certificate |
Supplier: |
Shanghai Tankii |
ISO Certified 46 SWG Nikrothal 60 Resistance Superfine Wire For Aerospace Instruments
NiChrome 60 wire
Melting Temperature: 1350°C (2462°F)
Maximum Operating Temperature: 1150°C (2100°F)
Density: 0.2979 lbs/cubic in.
Specific heat capacity @ 68°F: 0.11 Btu/lb°F
Thermal Expansion: 14 x 10 to the -6 per °C
Electrical Resistance wire Stiock size: nicr8020 -0.056mm, 0.061mm, 0.071mm and 0.08mm thinner than human hair
NiCr6015 common name: Cronifer II extra, nicr6015, ni60cr15, N6, Tophet C, resisohm60, nikhrothal 60
Main application:
1. new energy material roller kiln,
2. kiln heating,
3. regenerative boiler
4. Metallurgical machinery,
5. industrial electric furnace wire,
6. ceramic heating core,
7. household electric furnace,
8. test furnace,
9. hot air gun
Tankii mainly supply the following Types of resistance wire:
1. Nichrome alloy wire
2. FeCrAl (iron-chromium-aluminium) alloy wire
3. Constantan wire
4. Copper Nickel alloy wire
5. Manganin wire
Tankii Resistance wire is wire intended for making electrical resistors.
It is better if the alloy used has a high resistivity, since a shorter wire can then be used.
In many situations, the stability of the resistor is of primary importance, and thus the alloy's temperature coefficient of resistivity and corrosion resistance play a large part in material selection.
Parameters of resistance wires:
Nichrome alloy wire:
|
Performance/
material
|
Cr10Ni90
|
Cr20Ni80
|
Cr30Ni70
|
Cr15Ni60
|
Cr20Ni35
|
Cr20Ni30
|
|
|
Composition
|
Ni
|
90
|
Rest
|
Rest
|
55.0-61.0
|
34.0-37.0
|
30.3-34.0
|
|
Cr
|
10
|
20.0-23.0
|
28.0-31.0
|
15.0-18.0
|
18.0-21.0
|
18.0-21.0
|
|
|
Fe
|
--
|
≤1.0
|
≤1.0
|
Rest
|
Rest
|
Rest
|
|
| Max. continuous service temp. of element(ºC) | 1200 | 1200 | 1250 | 1150 | 1100 | 1100 | |
|
Melting Point
|
1400
|
1400
|
1380
|
1390
|
1390
|
1390 |
|
|
Resistivity
|
--
|
1.09+-0.05
|
1.18+-0.05
|
1.12+-0.05
|
1.00+-0.05
|
1.04+-0.05
|
|
|
Density (g/cm3)
|
8.7
|
8.4
|
8.1
|
8.2
|
7.9
|
7.9
|
|
|
Elongation at rupture
|
≥20
|
≥20
|
≥20
|
≥20
|
≥20
|
≥20
|
|
| T.S.(MPa) | ≥490 | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 | |
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Manganin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
ISO Certified 46 SWG Nikrothal 60 Resistance Superfine Wire For Aerospace Instruments

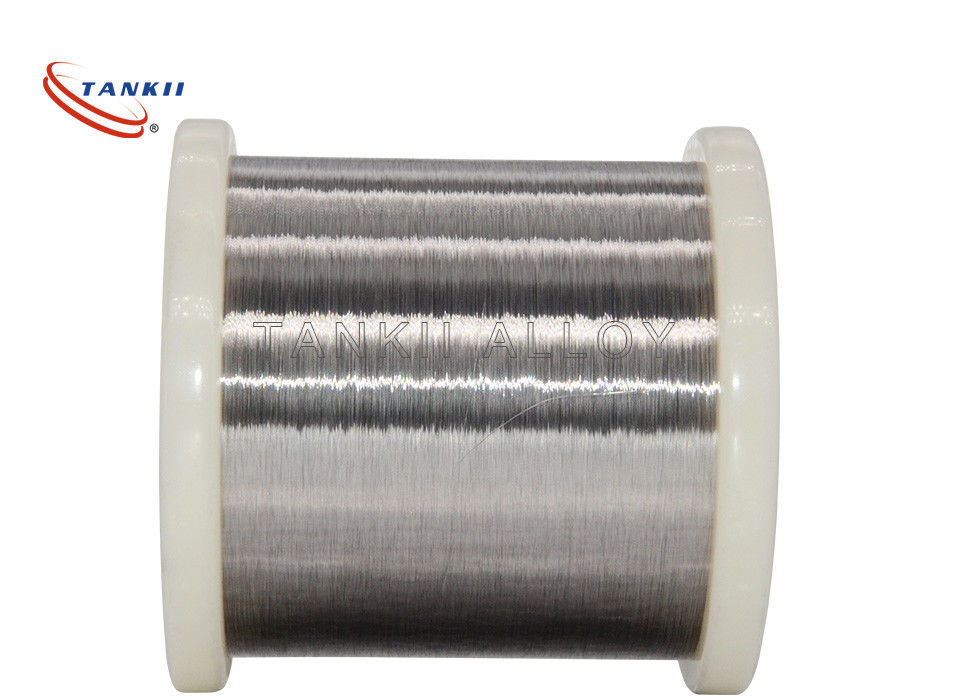

Resistance wire pictures:
Package of resistance wire :
Please call me at +86-18017475212 or email to me for more information on NiChrome products.
