Item: |
NiCrA Resistance Wire Stock Size 0.0223mm 0.031mm To 0.08mm For Precision Elements |
Stock Size: |
0.0223mm To 0.08mm |
MOQ: |
10g To 1kg |
Application: |
Precision Resistor, Heating |
Package: |
Bobbin, Spools, Carton Box |
Leading Time: |
3 Dyas After Getting The Payment |
Certificate: |
Mill's Test Certificate |
Supplier: |
Tankii |
Item: |
NiCrA Resistance Wire Stock Size 0.0223mm 0.031mm To 0.08mm For Precision Elements |
Stock Size: |
0.0223mm To 0.08mm |
MOQ: |
10g To 1kg |
Application: |
Precision Resistor, Heating |
Package: |
Bobbin, Spools, Carton Box |
Leading Time: |
3 Dyas After Getting The Payment |
Certificate: |
Mill's Test Certificate |
Supplier: |
Tankii |
NiCrA Resistance Wire Stock Size 0.0223mm 0.031mm To 0.08mm For Precision Elements
NiCr A common name: nicr8020, ni80cr20, N8, Tophet A
This resistance wire is Nichrome 80, an alloy nominally composed of 80 percent nickel and 20 percent chromium. This mixture gives the wire great mechanical strength and resistance to oxidation at high temperatures.
Tankii mainly supply the following Types of resistance wire:
1. Nichrome alloy wire
2. FeCrAl (iron-chromium-aluminium) alloy wire
3. Constantan wire
4. Copper Nickel alloy wire
5. Manganin wire
Tankii Resistance wire is wire intended for making electrical resistors.
It is better if the alloy used has a high resistivity, since a shorter wire can then be used.
In many situations, the stability of the resistor is of primary importance, and thus the alloy's temperature coefficient of resistivity and corrosion resistance play a large part in material selection.
NiCrA Resistance Wire Stock Size 0.0223mm 0.031mm To 0.08mm For Precision Elements
Parameters of resistance wires:
Nichrome alloy wire:
|
Performance/
material
|
Cr10Ni90
|
Cr20Ni80
|
Cr30Ni70
|
Cr15Ni60
|
Cr20Ni35
|
Cr20Ni30
|
|
|
Composition
|
Ni
|
90
|
Rest
|
Rest
|
55.0-61.0
|
34.0-37.0
|
30.3-34.0
|
|
Cr
|
10
|
20.0-23.0
|
28.0-31.0
|
15.0-18.0
|
18.0-21.0
|
18.0-21.0
|
|
|
Fe
|
--
|
≤1.0
|
≤1.0
|
Rest
|
Rest
|
Rest
|
|
| Max. continuous service temp. of element(ºC) | 1200 | 1200 | 1250 | 1150 | 1100 | 1100 | |
|
Melting Point
|
1400
|
1400
|
1380
|
1390
|
1390
|
1390 |
|
|
Resistivity
|
--
|
1.09+-0.05
|
1.18+-0.05
|
1.12+-0.05
|
1.00+-0.05
|
1.04+-0.05
|
|
|
Density (g/cm3)
|
8.7
|
8.4
|
8.1
|
8.2
|
7.9
|
7.9
|
|
|
Elongation at rupture
|
≥20
|
≥20
|
≥20
|
≥20
|
≥20
|
≥20
|
|
| T.S.(MPa) | ≥490 | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 | |
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Manganin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.

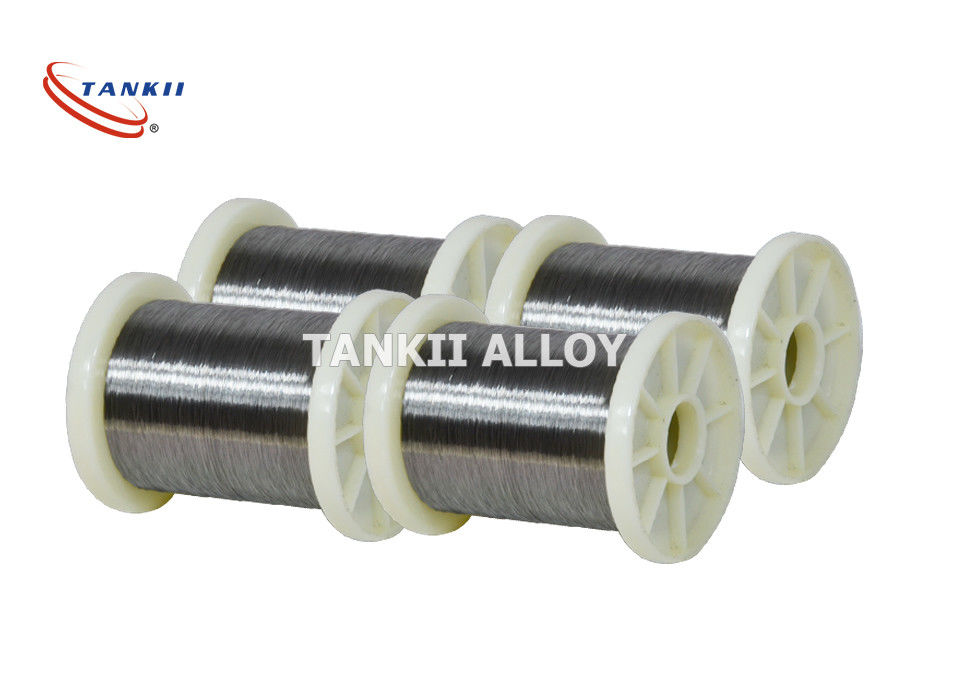

Resistance wire pictures:
Package of resistance wire :
Please call me at +86-18017475212 or email to me for more information on NiChrome products.
