Product Details
Place of Origin: China Mainland
Brand Name: TANKII
Certification: ISO9001
Model Number: NiCr8020
Payment & Shipping Terms
Minimum Order Quantity: 1kg
Price: Negotiable
Packaging Details: Carton case
Delivery Time: 7~20 days after getting the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 tons/year
Item: |
NiCr8020 Electric Resistance Wire Stock Size Dia 0.08mm For Heating Cable |
Stock Size: |
0.08mm |
MOQ: |
1kg |
Package: |
Bobbin, Spools, Carton Box |
Leading Time: |
7 Dyas After Getting The Payment |
Application: |
Resistor, Heating |
Certificate: |
Mill's Test Certificate |
Supplier: |
Tankii |
Item: |
NiCr8020 Electric Resistance Wire Stock Size Dia 0.08mm For Heating Cable |
Stock Size: |
0.08mm |
MOQ: |
1kg |
Package: |
Bobbin, Spools, Carton Box |
Leading Time: |
7 Dyas After Getting The Payment |
Application: |
Resistor, Heating |
Certificate: |
Mill's Test Certificate |
Supplier: |
Tankii |

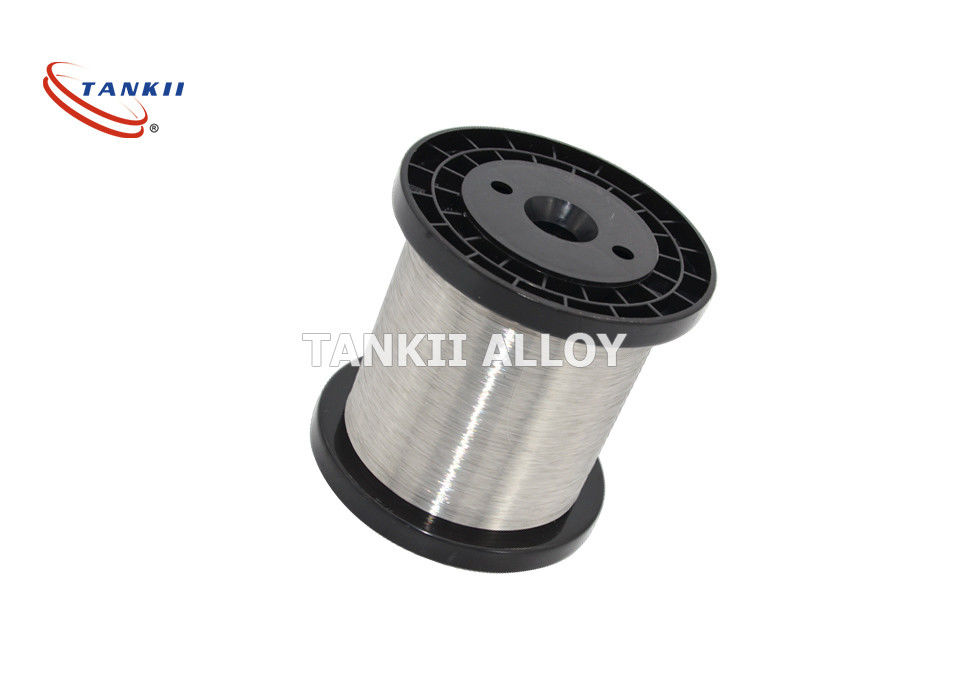

NiCr8020 Electric Resistance Wire Stock Size Dia 0.08mm For Heating Cable
Tankii Resistance wire is wire intended for making electrical resistors.
It is better if the alloy used has a high resistivity, since a shorter wire can then be used.
In many situations, the stability of the resistor is of primary importance, and thus the alloy's temperature coefficient of resistivity and corrosion resistance play a large part in material selection.
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Manganin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
Main Types of resistance wire:
1. Nichrome alloy wire
2. FeCrAl (iron-chromium-aluminium) alloy wire
3. Constantan wire
4. Copper Nickel alloy wire
5. Manganin wire
NiCr8020 Electric Resistance Wire Stock Size Dia 0.08mm For Heating Cable
Parameters of resistance wires:
Nichrome alloy wire:
|
Performance/
material
|
Cr10Ni90
|
Cr20Ni80
|
Cr30Ni70
|
Cr15Ni60
|
Cr20Ni35
|
Cr20Ni30
|
|
|
Composition
|
Ni
|
90
|
Rest
|
Rest
|
55.0-61.0
|
34.0-37.0
|
30.3-34.0
|
|
Cr
|
10
|
20.0-23.0
|
28.0-31.0
|
15.0-18.0
|
18.0-21.0
|
18.0-21.0
|
|
|
Fe
|
--
|
≤1.0
|
≤1.0
|
Rest
|
Rest
|
Rest
|
|
| Max. continuous service temp. of element(ºC) | 1200 | 1200 | 1250 | 1150 | 1100 | 1100 | |
|
Melting Point
|
1400
|
1400
|
1380
|
1390
|
1390
|
1390 |
|
|
Resistivity
|
--
|
1.09+-0.05
|
1.18+-0.05
|
1.12+-0.05
|
1.00+-0.05
|
1.04+-0.05
|
|
|
Density (g/cm3)
|
8.7
|
8.4
|
8.1
|
8.2
|
7.9
|
7.9
|
|
|
Elongation at rupture
|
≥20
|
≥20
|
≥20
|
≥20
|
≥20
|
≥20
|
|
| T.S.(MPa) | ≥490 | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 | |
Resistance wire pictures:
Package of resistance wire :
Please call me at +86-18017475212 or email to me for more information on NiChrome products.
