Product Details
Place of Origin: China Mainland
Brand Name: TANKII
Certification: ISO9001
Model Number: FeCrAl
Payment & Shipping Terms
Minimum Order Quantity: 1kg
Price: Negotiable
Packaging Details: Carton case
Delivery Time: 7~20 days after getting the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 tons/year
Item: |
FeCrAl Alloy 0Cr25Al5 Resistance Flat Wire / Ribbon Wire 0.12*1.2mm In Stock |
Stock Size: |
0.12*1.2mm, 0.12*1.8mm |
MOQ: |
1kg |
Package: |
On Bobbin, Carton Box |
Leading Time: |
3 Days |
Application: |
Resistor, Heating Elements |
Certificate: |
Mill's Test Certificate |
Supplier: |
Tankii Alloy |
Item: |
FeCrAl Alloy 0Cr25Al5 Resistance Flat Wire / Ribbon Wire 0.12*1.2mm In Stock |
Stock Size: |
0.12*1.2mm, 0.12*1.8mm |
MOQ: |
1kg |
Package: |
On Bobbin, Carton Box |
Leading Time: |
3 Days |
Application: |
Resistor, Heating Elements |
Certificate: |
Mill's Test Certificate |
Supplier: |
Tankii Alloy |
FeCrAl Alloy 0Cr25Al5 Resistance Flat Wire / Ribbon Wire 0.12*1.2mm In Stock
Resistance Ribbon wire – Normally produced from round wire in a singular multiple pass rolling process, ribbon products range in size from thicknesses as small as .0005″, and widths as large as .100″.
Ribbon products usually are supplied with round edges, on spools that are paper sectioned to enhance despooling.
Tankii Main Types of resistance flat wire:
1. Nichrome alloy wire
2. FeCrAl (iron-chromium-aluminium) alloy wire
3. Constantan wire
4. Copper Nickel alloy wire
5. Manganin wire
FeCrAl Alloy 0Cr25Al5 Resistance Flat Wire / Ribbon Wire 0.12*1.2mm In Stock
Parameters of resistance wires:
FeCrAl (iron-chromium-aluminium) alloy wire:
| Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy |
||||||||
| Properties Grade |
1Cr13Al4 |
0Cr25Al5 |
0Cr21Al6 |
0Cr23Al5 |
0Cr21Al4 |
0Cr21Al6Nb |
0Cr27Al7Mo2 |
|
| Main Chemical Composition (%) |
Cr |
12.0-15.0 |
23.0-26.0 |
19.0-22.0 |
22.5-24.5 |
18.0-21.0 |
21.0-23.0 |
26.5-27.8 |
| Al |
4.0-6.0 |
4.5-6.5 |
5.0-7.0 |
4.2-5.0 |
3.0-4.2 |
5.0-7.0 |
6.0-7.0 |
|
| Re |
opportune |
opportune |
opportune |
opportune |
opportune |
opportune |
opportune |
|
| Fe |
Bal. |
Bal. |
Bal. |
Bal. |
Bal. |
Bal. |
Bal. |
|
| Nb0.5 |
Mo1.8-2.2 |
|||||||
|
Max Continuous Service Temperature(oC) |
950 |
1250 |
1250 |
1250 |
1100 |
1350 |
1400 |
|
| Resisivity 20℃ (Ωmm2/m) |
1.25 ±0.08 |
1.42 ±0.06 |
1.42 ±0.07 |
1.35 ±0.07 |
1.23 ±0.07 |
1.45 ±0.07 |
1.53 ±0.07 |
|
| Density(g/cm3) |
7.4 |
7.1 |
7.16 |
7.25 |
7.35 |
7.1 |
7.1 |
|
| Thermal Conductivity |
52.7 |
46.1 |
63.2 |
60.2 |
46.9 |
46.1 |
45.2 |
|
| (KJ/m@h@℃) |
||||||||
|
Coefficient of Thermal Expansion(α×10-6/℃) |
15.4 |
16 |
14.7 |
15 |
13.5 |
16 |
16 |
|
|
Approximate Melting Point( ℃) |
1450 |
1500 |
1500 |
1500 |
1500 |
1510 |
1520 |
|
| Tensile Strength(N/mm2) |
580-680 |
630-780 |
630-780 |
630-780 |
600-700 |
650-800 |
680-830 |
|
| Elongation(%) |
>16 |
>12 |
>12 |
>12 |
>12 |
>12 |
>10 |
|
| Section Variation |
65-75 |
60-75 |
65-75 |
65-75 |
65-75 |
65-75 |
65-75 |
|
| Shrink Rate (%) |
||||||||
|
Repeatedly Bend Frequency(F/R) |
>5 |
>5 |
>5 |
>5 |
>5 |
>5 |
>5 |
|
| Hardness (H.B.) |
200-260 |
200-260 |
200-260 |
200-260 |
200-260 |
200-260 |
200-260 |
|
| Continuous Service Time |
no |
≥80/1300 |
≥80/1300 |
≥80/1300 |
≥80/1250 |
≥50/1350 |
≥50/1350 |
|
| Micrographic Structure |
Ferrite |
Ferrite |
Ferrite |
Ferrite |
Ferrite |
Ferrite |
Ferrite |
|
| Magnetic Property |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
Magnetic |
Magnetic | |
FeCrAl Alloy 0Cr25Al5 Resistance Flat Wire / Ribbon Wire 0.12*1.2mm In Stock

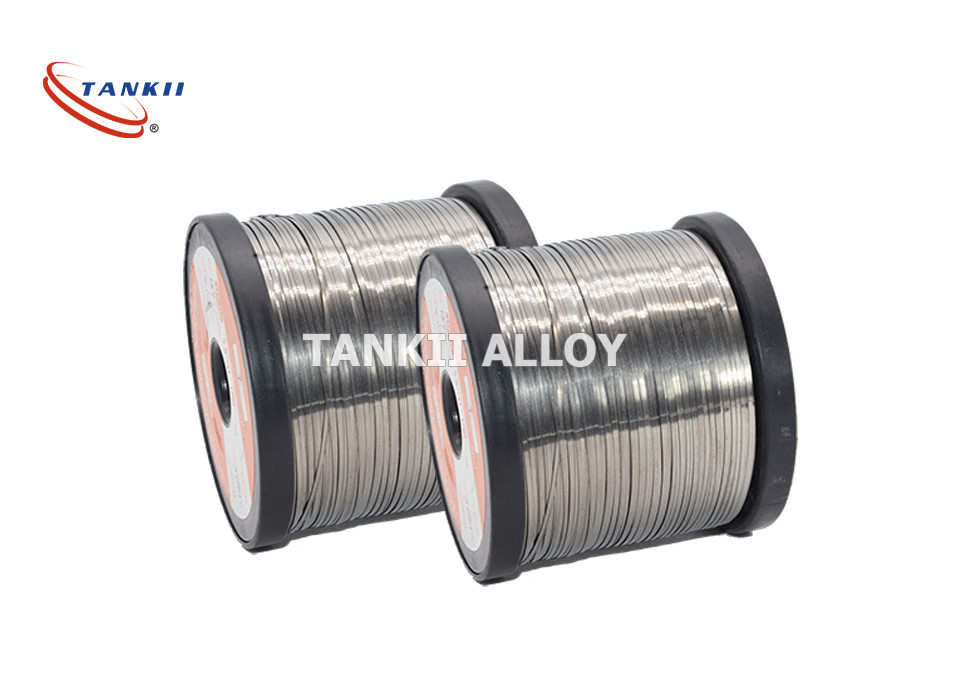

Resistance flat wire pictures:
Copper nickel alloy flat wires:
Package of resistance wire :
Please call me at +86-18017475212 or email to me for more information on FeCrAl products.
