Rolling Processes Flat Electric Resistance Wire 0Cr23Al5 FeCrAl Alloy

Product Details

Place of Origin: China Mainland

Brand Name: TANKII

Certification: ISO9001

Model Number: FeCrAl

Payment & Shipping Terms

Minimum Order Quantity: 5~40kg

Price: Negotiable

Packaging Details: Carton case

Delivery Time: 7~20 days after getting the payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 tons/year

Get Best Price
Contact Now
Specifications
Highlight:

Electric Resistance FeCrAl Alloy Wire

,

0Cr23Al5 Flat Ribbon Wire

,

Alloy Electric Resistance Wire Rolling

Item:
0Cr23Al5 FeCrAl Alloy Resistance Flat Wire Ribbon Wire 0.23*1.1mm
Stock Size:
0.23*1.1mm
Package:
On Bobbin, Carton Box
Leading Time:
3 Days
MOQ:
Based On Stock Qty
Application:
Resistor, Heating Elements
Certificate:
RoHS , Mill's Test Certificate
Supplier:
Tankii Alloy
Item:
0Cr23Al5 FeCrAl Alloy Resistance Flat Wire Ribbon Wire 0.23*1.1mm
Stock Size:
0.23*1.1mm
Package:
On Bobbin, Carton Box
Leading Time:
3 Days
MOQ:
Based On Stock Qty
Application:
Resistor, Heating Elements
Certificate:
RoHS , Mill's Test Certificate
Supplier:
Tankii Alloy
Description
Rolling Processes Flat Electric Resistance Wire 0Cr23Al5 FeCrAl Alloy





0Cr23Al5 FeCrAl Alloy Resistance Flat Wire Ribbon Wire 0.23*1.1mm



Tankii supplies three basic types of flat conductors: ribbon (flat wire), strip, and foil or sheet.

All three products are produced in a series of rolling processes, and are supplied with round, or sharp-edge constructions.







Main Types of resistance flat wire:

1. Nichrome alloy wire

2. FeCrAl (iron-chromium-aluminium) alloy wire

3. Constantan wire

4. Copper Nickel alloy wire

5. Manganin wire





Parameters of resistance wires:



0Cr23Al5 FeCrAl Alloy Resistance Flat Wire Ribbon Wire 0.23*1.1mm


FeCrAl (iron-chromium-aluminium) alloy wire:

Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy

Properties Grade

1Cr13Al4

0Cr25Al5

0Cr21Al6

0Cr23Al5

0Cr21Al4

0Cr21Al6Nb

0Cr27Al7Mo2

Main Chemical Composition
(%)


Cr

12.0-15.0

23.0-26.0

19.0-22.0

22.5-24.5

18.0-21.0

21.0-23.0

26.5-27.8

Al

4.0-6.0

4.5-6.5

5.0-7.0

4.2-5.0

3.0-4.2

5.0-7.0

6.0-7.0

Re

opportune

opportune

opportune

opportune

opportune

opportune

opportune

Fe

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.













Nb0.5

Mo1.8-2.2


Max Continuous Service

Temperature(oC)


950

1250

1250

1250

1100

1350

1400

Resisivity 20℃ (Ωmm2/m)

1.25
±0.08


1.42
±0.06


1.42
±0.07


1.35
±0.07


1.23
±0.07


1.45
±0.07


1.53
±0.07


Density(g/cm3)

7.4

7.1

7.16

7.25

7.35

7.1

7.1

Thermal Conductivity

52.7

46.1

63.2

60.2

46.9

46.1

45.2

(KJ/m@h@℃)


Coefficient of Thermal

Expansion(α×10-6/℃)

15.4

16

14.7

15

13.5

16

16


Approximate Melting

Point( ℃)

1450

1500

1500

1500

1500

1510

1520

Tensile Strength(N/mm2)

580-680

630-780

630-780

630-780

600-700

650-800

680-830

Elongation(%)

>16

>12

>12

>12

>12

>12

>10

Section Variation

65-75

60-75

65-75

65-75

65-75

65-75

65-75

Shrink Rate (%)


Repeatedly Bend

Frequency(F/R)


>5

>5

>5

>5

>5

>5

>5

Hardness (H.B.)

200-260

200-260

200-260

200-260

200-260

200-260

200-260

Continuous Service Time

no

≥80/1300

≥80/1300

≥80/1300

≥80/1250

≥50/1350

≥50/1350

Micrographic Structure

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Magnetic Property

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic



0Cr23Al5 FeCrAl Alloy Resistance Flat Wire Ribbon Wire 0.23*1.1mm

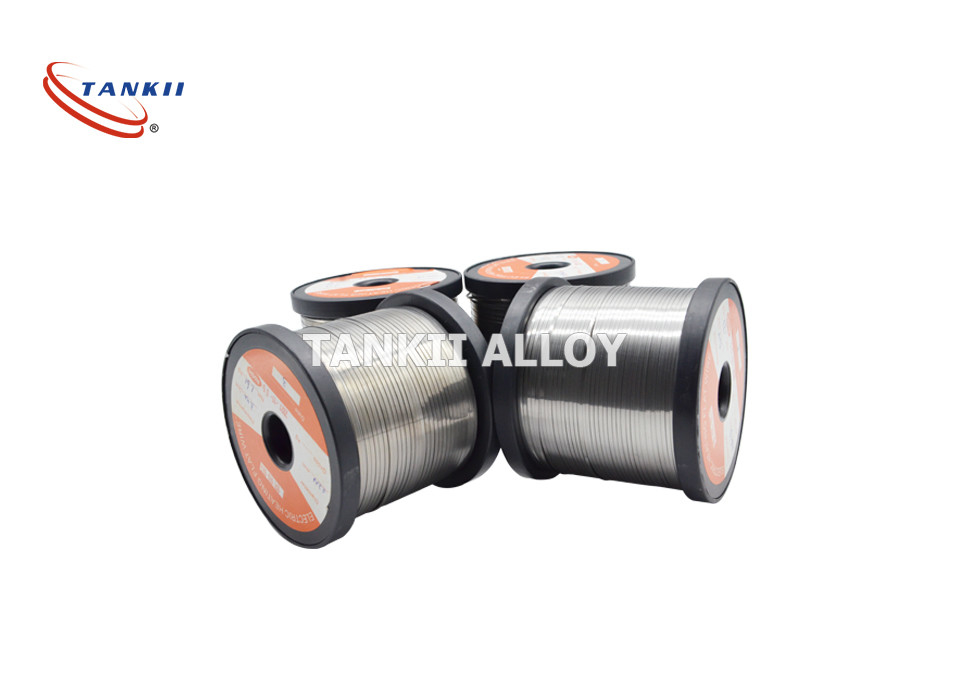

Resistance flat wire pictures:



Rolling Processes Flat Electric Resistance Wire 0Cr23Al5 FeCrAl Alloy 0





Copper nickel alloy  flat wires:

Rolling Processes Flat Electric Resistance Wire 0Cr23Al5 FeCrAl Alloy 1









Rolling Processes Flat Electric Resistance Wire 0Cr23Al5 FeCrAl Alloy 2

Rolling Processes Flat Electric Resistance Wire 0Cr23Al5 FeCrAl Alloy 3

Rolling Processes Flat Electric Resistance Wire 0Cr23Al5 FeCrAl Alloy 4





Package of resistance wire :

Rolling Processes Flat Electric Resistance Wire 0Cr23Al5 FeCrAl Alloy 5

Rolling Processes Flat Electric Resistance Wire 0Cr23Al5 FeCrAl Alloy 6

Rolling Processes Flat Electric Resistance Wire 0Cr23Al5 FeCrAl Alloy 7



Rolling Processes Flat Electric Resistance Wire 0Cr23Al5 FeCrAl Alloy 8





Rolling Processes Flat Electric Resistance Wire 0Cr23Al5 FeCrAl Alloy 9



Rolling Processes Flat Electric Resistance Wire 0Cr23Al5 FeCrAl Alloy 10

Rolling Processes Flat Electric Resistance Wire 0Cr23Al5 FeCrAl Alloy 11












Please call me at +86-18017475212 or email to me for more information on FeCrAl products.
