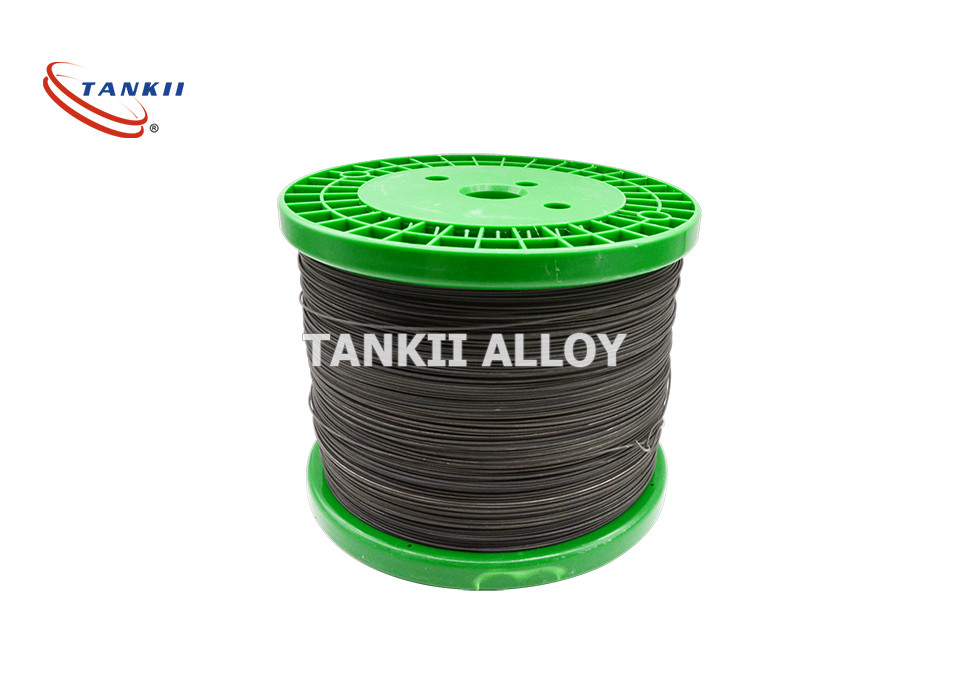

TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface

TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface
TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface

Large Image :  TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface

Product Details:
Place of Origin: China Mainland
Brand Name: TANKII
Certification: ISO9001
Model Number: N8 / A1/AF /Alloy750/875/815
Payment & Shipping Terms:
Minimum Order Quantity: 5~40kg
Price: Negotiable
Packaging Details: Carton case
Delivery Time: 7~20 days after getting the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 tons/year

TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface

Description
Item: TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface Dia: 1.5mm
Package: On Bobbin, Spools, Wooden Box Leading Time: 7~20 Dyas Or As Per Order Qty
MOQ: 5~40kg As Per Request Application: Resistor, Heating Elements
Certificate: Rohs , Mill's Test Certificate Supplier: Tankii Alloy
High Light:

Electric Resistance Wire Oxidized Surface

,

FeCrAl Alloy Wire Resistance

,

1.5mm Alloy Heating Elements Wire





TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface



Resistance wire is designed to resist the flow of electricity which turns electrical energy into heat.



Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Manganin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.





Main Types of resistance wire:

1. Nichrome alloy wire

2. FeCrAl (iron-chromium-aluminium) alloy wire

3. Constantan wire

4. Copper Nickel alloy wire

5. Manganin wire





Parameters of resistance wires:


TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface


FeCrAl (iron-chromium-aluminium) alloy wire:

Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy

Properties Grade

1Cr13Al4

0Cr25Al5

0Cr21Al6

0Cr23Al5

0Cr21Al4

0Cr21Al6Nb

0Cr27Al7Mo2

Main Chemical Composition
(%)


Cr

12.0-15.0

23.0-26.0

19.0-22.0

22.5-24.5

18.0-21.0

21.0-23.0

26.5-27.8

Al

4.0-6.0

4.5-6.5

5.0-7.0

4.2-5.0

3.0-4.2

5.0-7.0

6.0-7.0

Re

opportune

opportune

opportune

opportune

opportune

opportune

opportune

Fe

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.













Nb0.5

Mo1.8-2.2


Max Continuous Service

Temperature(oC)


950

1250

1250

1250

1100

1350

1400

Resisivity 20℃ (Ωmm2/m)

1.25
±0.08


1.42
±0.06


1.42
±0.07


1.35
±0.07


1.23
±0.07


1.45
±0.07


1.53
±0.07


Density(g/cm3)

7.4

7.1

7.16

7.25

7.35

7.1

7.1

Thermal Conductivity

52.7

46.1

63.2

60.2

46.9

46.1

45.2

(KJ/m@h@℃)


Coefficient of Thermal

Expansion(α×10-6/℃)

15.4

16

14.7

15

13.5

16

16


Approximate Melting

Point( ℃)

1450

1500

1500

1500

1500

1510

1520

Tensile Strength(N/mm2)

580-680

630-780

630-780

630-780

600-700

650-800

680-830

Elongation(%)

>16

>12

>12

>12

>12

>12

>10

Section Variation

65-75

60-75

65-75

65-75

65-75

65-75

65-75

Shrink Rate (%)


Repeatedly Bend

Frequency(F/R)


>5

>5

>5

>5

>5

>5

>5

Hardness (H.B.)

200-260

200-260

200-260

200-260

200-260

200-260

200-260

Continuous Service Time

no

≥80/1300

≥80/1300

≥80/1300

≥80/1250

≥50/1350

≥50/1350

Micrographic Structure

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Magnetic Property

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic









Resistance wire pictures:



TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface 0

TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface 1

TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface 2

Copper nickel alloy wires:

TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface 3









TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface 4

TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface 5

TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface 6





Package of resistance wire :

TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface 7

TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface 8

TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface 9



TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface 10





TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface 11



TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface 12

TK A1 FeCrAl Alloy Electric Resistance Wire Dia 1.5mm Oxidized Surface 13












Please call me at +86-18017475212 or email to me for more information on FeCrAl products.
