Product Details
Place of Origin: China Mainland
Brand Name: TANKII
Certification: ISO9001
Model Number: Tubular Heat Exchanger
Payment & Shipping Terms
Minimum Order Quantity: 10pc
Price: usd5~10/pc
Packaging Details: In Coil
Delivery Time: 5~20 days after getting the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 tons/year
Item: |
0cr23al5 Fecral Chromium Aluminum Alloy Heating Element Resistant Wire |
Package: |
Wooden Pallet/case |
Leading Time: |
7~20 Dyas After Getting The Payment |
Material: |
FeCrAl Alloy , NiCr Alloy |
Type: |
Air Heater,Duct Heater,Infrared Heater,Immersion Heater,Resistance Furnace |
Condition: |
New |
Weight: |
All Depends |
After-sales Service Provided: |
Online Support |
Item: |
0cr23al5 Fecral Chromium Aluminum Alloy Heating Element Resistant Wire |
Package: |
Wooden Pallet/case |
Leading Time: |
7~20 Dyas After Getting The Payment |
Material: |
FeCrAl Alloy , NiCr Alloy |
Type: |
Air Heater,Duct Heater,Infrared Heater,Immersion Heater,Resistance Furnace |
Condition: |
New |
Weight: |
All Depends |
After-sales Service Provided: |
Online Support |

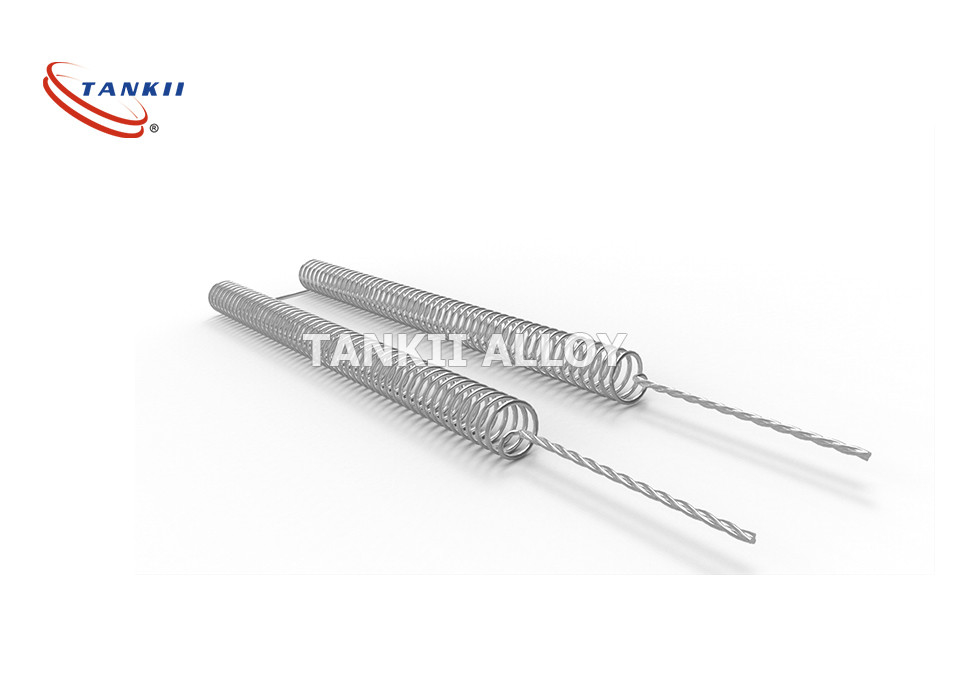

0Cr23Al5 Fecral Chromium Aluminum Alloy Heating Element Resistant Wire
Tankii's Furnace electric heating element is characterisized by excellent oxidation resistance and very good form stability resulting in long element life. They are typically used in electrical heating elements in industrial furnaces and home appliances.
Stainless Steel Finned tubular heating elements for forced air heating is designed for use in natural and forced convection space heating. our range of finned air heaters are suitable for increased heat transfer surface area and where higher wattage is required. Featuring rugged construction, these finned heaters can be used in a multitude of industrial environments.
Finned tubular heaters are used for forced convection heating, air or gas heating heating systems. Finned tubular heaters/heating elements are customized to meet your specific application needs.
Normal composition% of Chromel AA / Ni80Cr20
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.03 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 20.0~23.0 | Bal. | Max 0.50 | Max 1.0 | - |
Typical Mechanical properties(1.0mm) of Chromel AA / Ni80Cr20
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 420 | 810 | 30 |
Typical Physical properties of Chromel AA / Ni80Cr20
| Density (g/cm3) | 8.4 |
| Electrical resistivity at 20ºC(Om*mm2/m) | 1.09 |
| Conductivity coefficient at 20ºC (WmK) | 15 |
| Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/ºC |
| 20 ºC- 1000ºC | 18 |
| Specific heat capacity of Chromel AA / Ni80Cr20 | |
| Temperature | 20ºC |
| J/gK | 0.46 |
| Melting point (ºC) | 1400 |
| Max continuous operating temperature in air (ºC) | 1200 |
| Magnetic properties | non-magnetic |
| Temperature Factors Of Electrical Resistivity of Chromel AA / Ni80Cr20 | |||||
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 600ºC |
| 1 | 1.006 | 1.012 | 1.018 | 1.025 | 1.018 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1300ºC |
| 1.01 | 1.008 | 1.01 | 1.014 | 1.021 | - |
| Power |
(10kw to 40kw Customizable) |
| voltage |
(30v to 380v Customizable) |
| Cold resistance |
(Customizable) |
| material |
FeCrAl (FeCrAl ,NiCr,HRE or Kanthal ) |
| specification |
Tailor-made |
| Weight |
Tailor-made |
0Cr23Al5 Fecral Chromium Aluminum Alloy Heating Element Resistant Wire
Types:
Stainless Steel heating element
Normal steel tubular heating element
steel heating element with copper coated
Aluminum heating element .
Infrared quartz heating element
Copper heating element
heater plate
heating plate
0Cr23Al5 Fecral Chromium Aluminum Alloy Heating Element Resistant Wire
The heating element can be made in different shape: round , square , retangular...
We supply heating element for different kind of electric appliance , home used, commercial used and industrial used:
For example :
Toaster heating element
Oven heating element
Grill heating element
heater heating element
heater plate for coffe machine or electric water boiler
rice cooker heating element
air conditioner heating element
Heating element for industrial electric equiments:
heating element for hot runner
heating element for central air condittioner
heating element for water mold heater and oil mold heater
heating element for steamer
heating element for commerical used oven etc...
Heating element for material dryer
Heating element for food making systerm
we are able to make the heating element according to your requiments, if there is any project, pls contact us.Industrial Used Heating Element, Heater for Industrial Oven, Food Equipment
0Cr23Al5 Fecral Chromium Aluminum Alloy Heating Element Resistant Wire
Features:
1, Mechanically-bonded continuous fin assures excellent heat transfer and helps prevent fin vibration at high air velocities.
2, Tube diameter: 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm
3, Several standard formations and mounting bushings available.
3, Standard fin is SUS304, other Sheath and fin material available
4, 120V, 208V, 240V, 480V available, Special voltage/wattages avaiable
5, Various shape: Straight type, U type, W type, Roud type and so on
0Cr23Al5 Fecral Chromium Aluminum Alloy Heating Element Resistant Wire
When you inquiry, pls sspecify the following details
1) If have drawing, it will be helpful.
2) Power, voltage, shape
3) Working temperature
4) Material requirement
5) Quantity
6) Other requirement required.
Welcome to contact us if there is any plan on heating elements requirement.
