Quartz Tube SUS304 /316 / 321 Furnace Heating Element

Product Details

Place of Origin: China Mainland

Brand Name: TANKII

Certification: ISO9001

Model Number: Tubular Heat Exchanger

Payment & Shipping Terms

Minimum Order Quantity: 50pc

Price: usd0.5~5/pc

Packaging Details: In Coil

Delivery Time: 5~20 days after getting the payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 tons/year

Get Best Price
Contact Now
Specifications
Highlight:

321 electric furnace elements

,

Quartz Tube furnace elements

Package:
Wooden Box
Leading Time:
7~20 Dyas After Getting The Payment
Item:
Customized SUS304 /316 / 321 Heating Element With Quartz Tube Used For Barbecue
Material:
FeCrAl , NiCr
Package:
Wooden Box
Leading Time:
7~20 Dyas After Getting The Payment
Item:
Customized SUS304 /316 / 321 Heating Element With Quartz Tube Used For Barbecue
Material:
FeCrAl , NiCr
Description

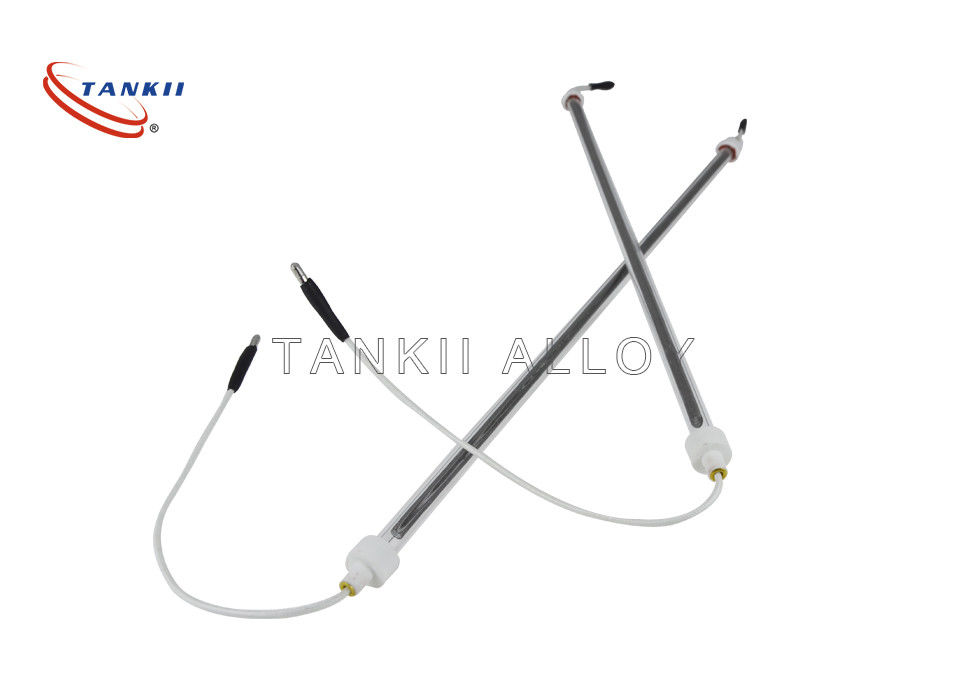

Quartz Tube SUS304 /316 / 321 Furnace Heating Element

Customized  SUS304 /316 / 321 Heating Element With Quartz Tube Used For Barbecue



The heating element can be made in different shape: round , square , retangular...
The heating tube is made of surface anti-oxidation insulated electric wire and high-quality quartz tube / Ceramic tube.

It can be tightly wound and used vertically, with the characteristics of fast heating and long service life.

It can be installed and used in any direction without protection atmosphere or vacuum protection.

It is easy to assemble and low in cost.

The maximum service temperature can reach 1300 ℃, and the service life shall not be less than 20000 hours.

Widely used in all kinds of electric heaters and heating equipment, especially suitable for making heating elements in devices such as high temperature far-infrared radiator, electric oven, etc.



Types:
Stainless Steel heating element
Normal steel tubular heating element
steel heating element with copper coated
Aluminum heating element .
Infrared quartz heating element
Copper heating element
heater plate
heating plate



Customized SUS304 /316 / 321 Heating Element With Quartz Tube Used For Barbecue



OEM designed customized heating element and heater for different kind of electric appliance: home appliance and electric industrial equipment

Stainless Steel Finned tubular heating elements for forced air heating is designed for use in natural and forced convection space heating. our range of finned air heaters are suitable for increased heat transfer surface area and where higher wattage is required. Featuring rugged construction, these finned heaters can be used in a multitude of industrial environments.

Finned tubular heaters are used for forced convection heating, air or gas heating heating systems. Finned tubular heaters/heating elements are customized to meet your specific application needs.





Customized SUS304 /316 / 321 Heating Element With Quartz Tube Used For Barbecue



Sheath material Stainless Steel 304/321/316,Incoloy800/840
Heat intensity Not exceeding 30Wcm2 (advisable)
Tolerance of length +/-1.5%
Tolerance of diameter -0.01 a -0.06 m/m
Escape of current (when cold) ≤0.1mA a 242 v
Insulation (when cold) 5 Min Ohmios 500 Watts minimum
Dielectric strength 1500v. 1/seg
Tolerance of cut of connexion +/-15 mlm
Power tolerance (w) Power tolerance (w)
Wattage tolerance +5 percent, -10 percent




Features:
1, Mechanically-bonded continuous fin assures excellent heat transfer and helps prevent fin vibration at high air velocities.
2, Tube diameter: 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm
3, Several standard formations and mounting bushings available.
3, Standard fin is SUS304, other Sheath and fin material available
4, 120V, 208V, 240V, 480V available, Special voltage/wattages avaiable
5, Various shape: Straight type, U type, W type, Roud type and so on





When you inquiry, pls sspecify the following details

1) If have drawing, it will be helpful.
2) Power, voltage, shape
3) Working temperature
4) Material requirement
5) Quantity
6) Other requirement required.



Customized SUS304 /316 / 321 Heating Element With Quartz Tube Used For Barbecue
