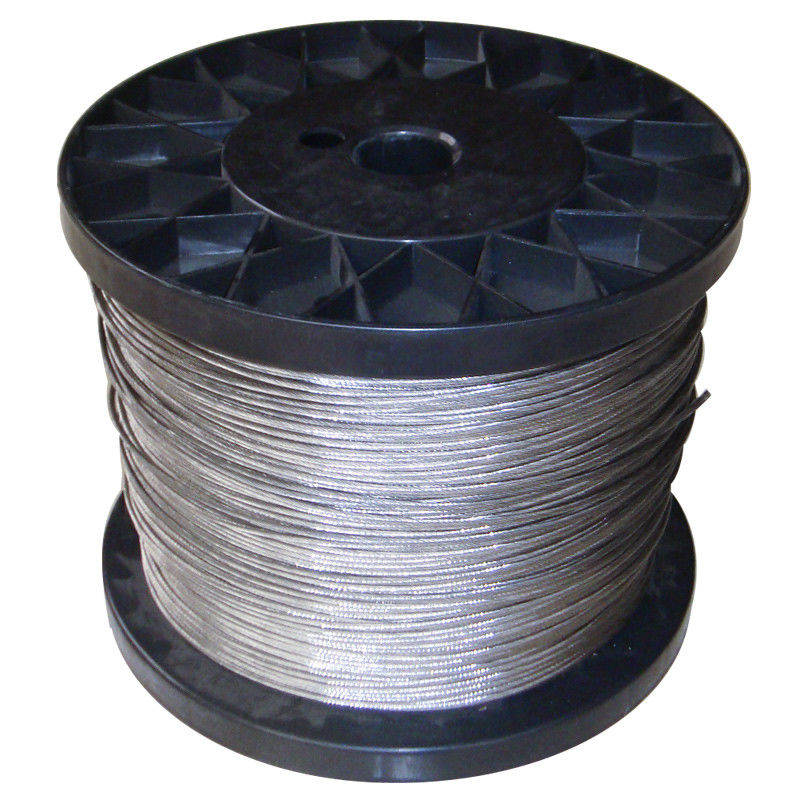

Solid Nicr Stranded Wire Bright Annealed Soft Twist Wire

Solid Nicr Stranded Wire Bright Annealed Soft Twist Wire
Solid Nicr Stranded Wire Bright Annealed Soft Twist Wire Solid Nicr Stranded Wire Bright Annealed Soft Twist Wire

Large Image :  Solid Nicr Stranded Wire Bright Annealed Soft Twist Wire

Product Details:
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: Ni 200
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Price: negotiation
Packaging Details: spool+plastic bag+carton+pallet for resistance wires
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20, 000kg/month

Solid Nicr Stranded Wire Bright Annealed Soft Twist Wire

Description
Color: Sliver Or Polish Conductor Material: Ni
Condition:: Bright Annelaed Soft Conductor Type:: Solid
Usual Size: 0.523mm X 18 & 0.574mm Diamter Range: 0.018-10mm O
High Light:

Nicr Stranded Wire

,

Bright Annealed Soft Twist Wire

,

Solid Nicr Alloy

Pure nickel twist wire/nicr stranded wire (Ni 200 / Ni201)





Pure Nickel Stranded wire( 19 wires)

Pure nickel wire has good high temperature strength, the characteristics of low resistivity.
Nickel wire series products are: nickel wire, pure nickel wire, nickel wire, nickel wire, 0.025 mm N4 interchange nickel wire, nickel N6 wire;Nickel wire highest purity can reach 99.99%!!!!!!.The finest can reach 0.025 mm!
Pure nickel wire production cycle: 3 to 7 days or so
The state: hard state/half hard/soft state
The characteristics of
1, have solderability, high electrical conductivity, appropriate linear expansion coefficient
2, good high temperature strength, low resistivity
3, high melting point, corrosion resistance, good mechanical performance, under the hot cold state has good pressure workability, degassing, suitable for radio, electric light source, machinery manufacturing, chemical industry, are important structural materials in the vacuum electronic devices.


Nickel Mnaganese Alloy
Nickel 212 Wire

Low resistance cold tail wire, available in 19 multi-strand on 100m/328' roll.

Composition: About 97% Ni, 3% Mn.

Usage: Used in Heating Element Repair Kit ,Heating Copre Wire,Ceramics.

Diameter of each strand: 0.5mm,0.55mm(Normally),other sizes can be available upon your request.

We can also supply you the other pure nickel alloy, such as Ni200, Ni201 etc, the purity of some products are above 99.9% and 99.5%-99.9%.

If you are interested in our products,please feel free to keep us informed,and you will get the most competitive price and shorter delivery time from us.

Propertes/Grade Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Main Chemical composition Ni Rest Rest 55.0-61.0 34.0-37.0 30.0-34.0
  Cr 20.0-23.0 28.0-31.0 15.0-18.0 18.0-21.0 18.0-21.0
  Fe ≤ 1.0 ≤ 1.0 Rest Rest Rest
Max. continuous service temp. of element 1200 1250 1150 1100 1100
Resistivity at 20oC (μ Ω · m) 1.09 1.18 1.12 1.04 1.04
Density (g/cm3) 8.40 8.10 8.20 7.90 7.90
Thermal conductivity(KJ/m· h· oC) 60.3 45.2 45.2 43.8 43.8
Coefficient of lines expansion(α × 10-6/oC) 18.0 17.0 17.0 19.0 19.0
Melting point (approx. )( oC) 1400 1380 1390 1390 1390
Elongation at rupture (%) > 20 > 20 > 20 > 20 > 20
Micrographic structure austenite austenite austenite austenite austenite
Magnetic properties nonmagnetic nonmagnetic nonmagnetic nonmagnetic nonmagne




Solid Nicr Stranded Wire Bright Annealed Soft Twist Wire 0



Solid Nicr Stranded Wire Bright Annealed Soft Twist Wire 1



Solid Nicr Stranded Wire Bright Annealed Soft Twist Wire 2
