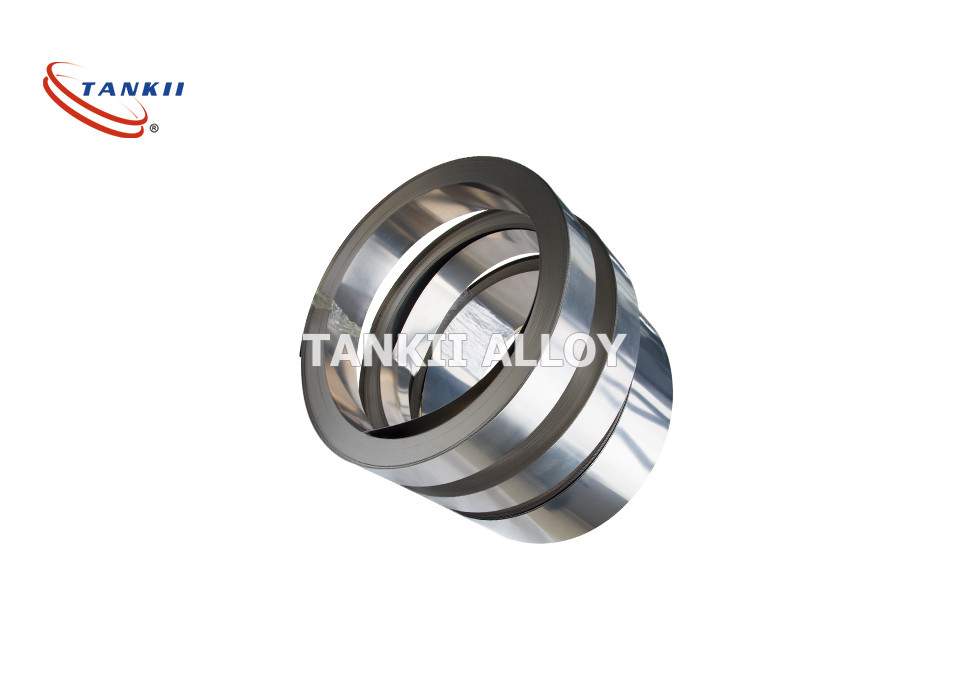

Ni81mn6 Soft Magnetic Precision Alloy Initial Permeability Strip

Ni81mn6 Soft Magnetic Precision Alloy Initial Permeability Strip
Ni81mn6 Soft Magnetic Precision Alloy Initial Permeability Strip Ni81mn6 Soft Magnetic Precision Alloy Initial Permeability Strip Ni81mn6 Soft Magnetic Precision Alloy Initial Permeability Strip

Large Image :  Ni81mn6 Soft Magnetic Precision Alloy Initial Permeability Strip

Product Details:
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001 SGS
Model Number: Ni81mn6
Payment & Shipping Terms:
Minimum Order Quantity: 200 KG
Price: negotiable
Packaging Details: Wooned Case
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Tons per month

Ni81mn6 Soft Magnetic Precision Alloy Initial Permeability Strip

Description
Model NO.: Ni81mn6 Material: Ni-Mo-Fe Alloy
Density: 8.85 G/cm3 Resistivity: 0.6
OEM: Yes Surface: Bright
HS Code: 75052200 Melting Point: 1460 C
High Light:

Ni81mn6 Soft Magnetic Precision Alloy

,

Permeability Strip Precision Alloy

,

Bright Soft Magnetic Alloy

6-81 Mo-Permalloy Soft Magnetic Alloy Ni81mn6 Initial Permeability Strip







Soft magnetic alloy are in weak magnetic field with high permeability and low coercive force of alloys.This kind of alloy are widely used in radio electronics, precision instruments and meters, remote control and automatic control system, the combination is mainly used for energy conversion and information processing, the two aspects of is an important material in the national economy.
Introduction to the

Chemical composition

composition C P S Mn Si
Content(%) 0.03 0.02 0.02 ≤1 ≤0.3
composition Ni Cr Mo Cu Fe
Content(%) 80.5~81.5 - 5.8~6.2 - Bal


Heat treatment system

shop sign Annealing medium heating temperature Keep the temperature time/h Cooling rate

1j86
Dry hydrogen or vacuum, pressure is not greater than 0.1 Pa Along with the furnace heating up 1100~1150ºC
3~6
In 100 ~ 200 ºC / h speed cooling to 600 ºC, fast to 300 ºC draw a charge


Soft magnetic alloy outer magnetic field under the action of easy magnetization, basic disappear after removal of magnetic field of magnetic induction intensity and magnetic alloys.



Usage
It is mostly used in small transformers, pulse transformers, relays, transformer, magnetic amplifier, electromagnetic clutch,the reactor coreand magnetic shielding which work inweak magnetic orsecondary magnetic field.

Features
1).Low coercivity and magnetic hysteresis loss;
2).High resistivity and loweddy-currentloss;
3).High initialmagnetic permeability and maximum magnetic permeability;
4).High saturation magnetic flux density;

Packing detail

1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
