Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001 SGS
Model Number: FeCrAl
Payment & Shipping Terms
Minimum Order Quantity: 100 KG
Price: negotiable
Packaging Details: Wooned Case
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Tons per month
Material: |
FeCrAl Alloy |
Resistivity: |
1.45 |
Surface: |
Bright |
Sample: |
Accepted Small Order |
Thickness: |
0.01mm Min. |
Material: |
FeCrAl Alloy |
Resistivity: |
1.45 |
Surface: |
Bright |
Sample: |
Accepted Small Order |
Thickness: |
0.01mm Min. |

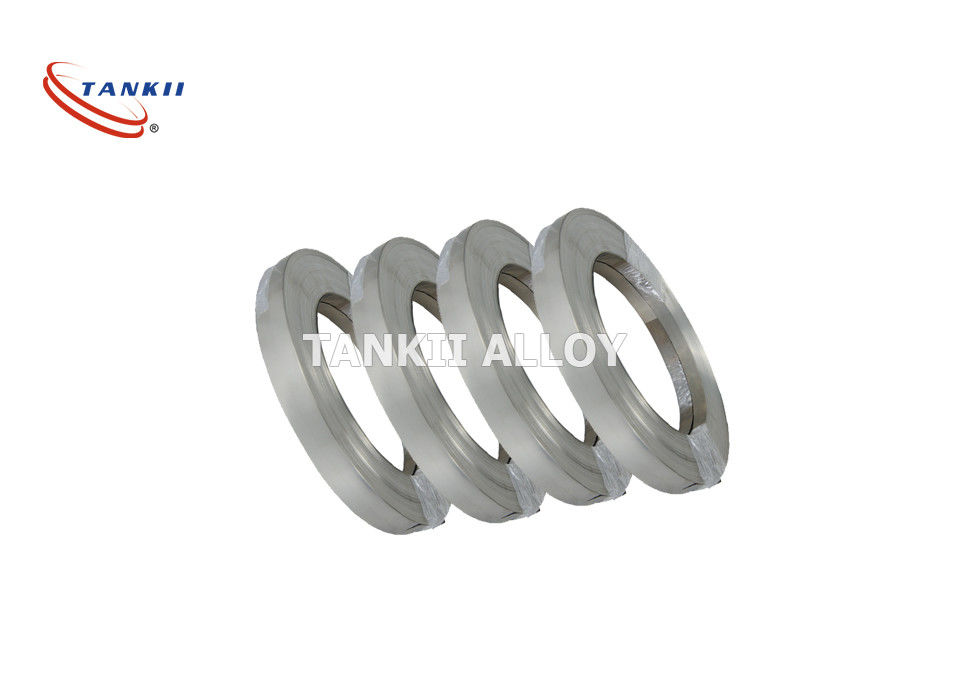

Aluchrom Y heating resistor foil
ASTM B603, DIN 17470, JIS C2520, GB/T1234.
Our advantage: High quality, short delivery time, small MOQ.
Characteristics: Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
Usage: Resistance heating elements; Material in metallurgy; Household appliances; Mechanical manufacturing and other industries.
Packing detail: Spool, coil, wooden case(as per client's requiryment)
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD.
Alloy |
Cr% |
Al% |
Fe% |
Re% |
Nb% |
0Cr21Al6Nb |
21.0-23.0 |
5.0-7.0 |
Bal. |
Adequacy |
0.5 |
Properties
Alloy |
Specific Resistance (at 20° C) (µ Ω -m) |
Hardness HB |
Linear Expansion Coeff. (T=20 - 1000° C) x10-6 |
Maximum Operating Temperature of Element (° C) |
0Cr21Al6Nb |
1.45± 0.07 |
200-260 |
16.0 |
1350 |
| rand name | 1Cr13Al4 | 0Cr25Al5 | 0Cr21Al6 | 0Cr23Al5 | 0Cr21Al4 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
| Main chemical composition% | Cr | 12.0-15.0 | 23.0-26.0 | 19.0-22.0 | 22.5-24.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.0 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
| RE | opportune amount |
opportune amount |
opportune amount |
opportune amount |
opportune amount |
opportune amount |
opportune amount |
|
| Fe | Rest | Rest | Rest | Rest | Rest | Rest | Rest | |
| Nb0.5 | Mo1.8-2.2 | |||||||
| Max.continuous service temp.of element (ºC) |
950 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | |
| Resistivity μΩ.m,20ºC |
1.25 | 1.42 | 1.42 | 1.35 | 1.23 | 1.45 | 1.53 | |
| Density (g/cm3 ) |
7.4 | 7.10 | 7.16 | 7.25 | 7.35 | 7.10 | 7.10 | |
| Thermal conductivity KJ/m.h.ºC |
52.7 | 46.1 | 63.2 | 60.2 | 46.9 | 46.1 | 45.2 | |
| Coefficient of lines expansion α×10-6/ºC |
15.4 | 16.0 | 14.7 | 15.0 | 13.5 | 16.0 | 16.0 | |
| Melting pointºC | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 | |
| Tensile strength Mpa |
580-680 | 630-780 | 630-780 | 630-780 | 600-700 | 650-800 | 680-830 | |
| Elongation at rupture % |
>16 | >12 | >12 | >12 | >12 | >12 | >10 | |
| Variation of area % |
65-75 | 60-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | |
| Repeat bending frequency(F/R) |
>5 | >5 | >5 | >5 | >5 | >5 | >5 | |
| Hardness(H.B.) | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
| Micrographic structure |
Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | |
| Magnetic properties |
Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | |
