FeCrAl Resistance Heating Strip 1.0mm Width For Edge Wind Resistor

Name: FeCrAl Resistance Heating Strip 1.0mm Width For Edge Wind Resistor
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Alloy 134
Price: 111.80 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001 SGS

Model Number: Alloy 134

Payment & Shipping Terms

Minimum Order Quantity: 100 KG

Price: negotiable

Packaging Details: Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            FeCrAl Resistance Heating Strip, Edge Wind Resistor Fecral Alloy, Resistance Heating Strip 1.0mm


Material:	Fe-Cr-Al Alloy	Shape:	Strip / Tape / Wire
Surface:	Bright	Resistivity:	1.25
Width:	1.0mm Min

Material:	Fe-Cr-Al Alloy
Shape:	Strip / Tape / Wire
Surface:	Bright
Resistivity:	1.25
Width:	1.0mm Min

Description

FeCrAl Resistance Heating Strip 1.0mm Width For Edge Wind Resistor

Grade: Cr13Al4

1. Performance: High resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.

2. Usage: It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.

3. Diameter: 1.0-10.0mm
Other sizes are available upon your request.

Other FeCrAl Alloy: 1Cr15Al5, 0Cr21Al4, 0Cr21Al6, 0Cr23Al5, 0Cr25Al5, 0Cr21Al6Nb etc
Please email us for more detailed information.

Properties/Grade		Cr13Al4
Main Chemical composition(%)	Cr	12.0-15.0
	Al	4.0-6.0
	Fe	Balance
	Re	opportune

Max. continuous service temp. of element		950
Resistivity at 20oC (μ Ω · m)		1.25+-0.08
Density (g/cm3)		7.4
Thermal conductivity(KJ/m· h· oC)		52.7
Coefficient of lines expansion(α × 10-6/oC)		15.4
Melting point (approx. )( oC)		1450
Elongation at rupture (%)		≥ 16
Micrographic structure		Ferrite
Magnetic properties		magnetic

EFFECT OF COLD WORK

Cold working Cr13Al4 leads to a rapid increase in yield and tensile strength and an accompanying loss of ductility. With 10% cold reduction,

elongation falls below 10% and yield strength approaches 100 ksi. (690 MPa).

The work hardening rate of Cr13Al4 is below that of carbon steel and austenitic stainless alloys. The n-Value or work hardening coefficient

(measured between 10% strain and the ultimate strength) typically falls in the range of 0.145 - 0.170.

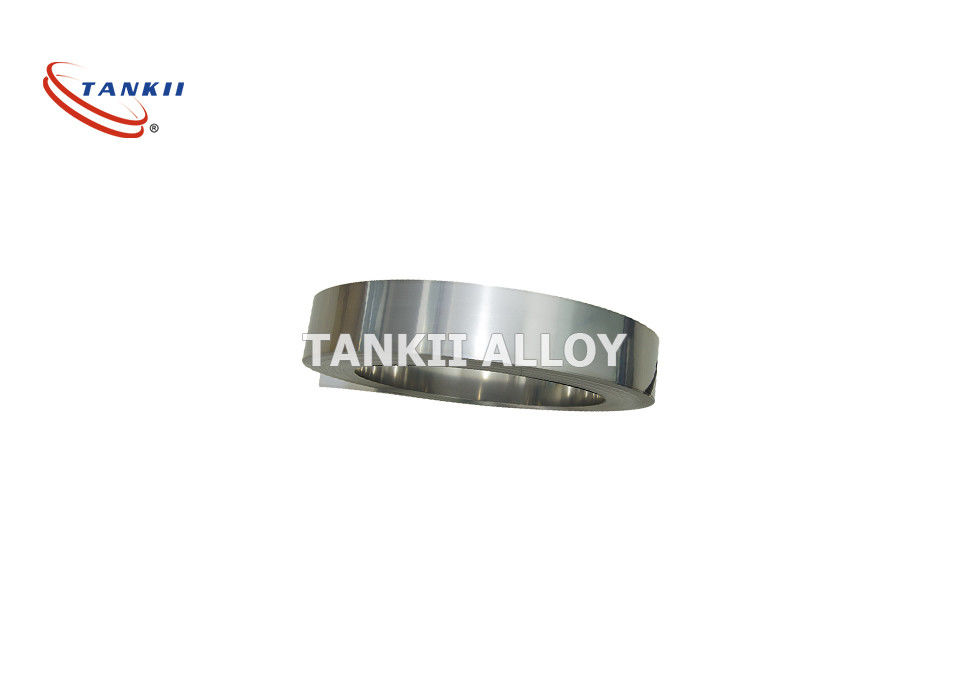

FeCrAl Resistance Heating Strip 1.0mm Width For Edge Wind Resistor 0
