Product Details:
|
| Diameter: | Soild Wire 0.16mm In Stock | MOQ: | One Spool, 1M , 10M,1kg |
|---|---|---|---|
| Wire Type: | Solid Wire Or 19*0.16mm | Material: | NiCrSi-NiSiMg |
| Surface: | Bright | Insulation: | Bare |
| Wire Class: | IEC 584-1 | Leading Time: | 1 Day |
| High Light: | NP Type N Thermocouple Wire,0.16mm Type N Thermocouple Wire,NiCrSi Thermocouple Wire |
||

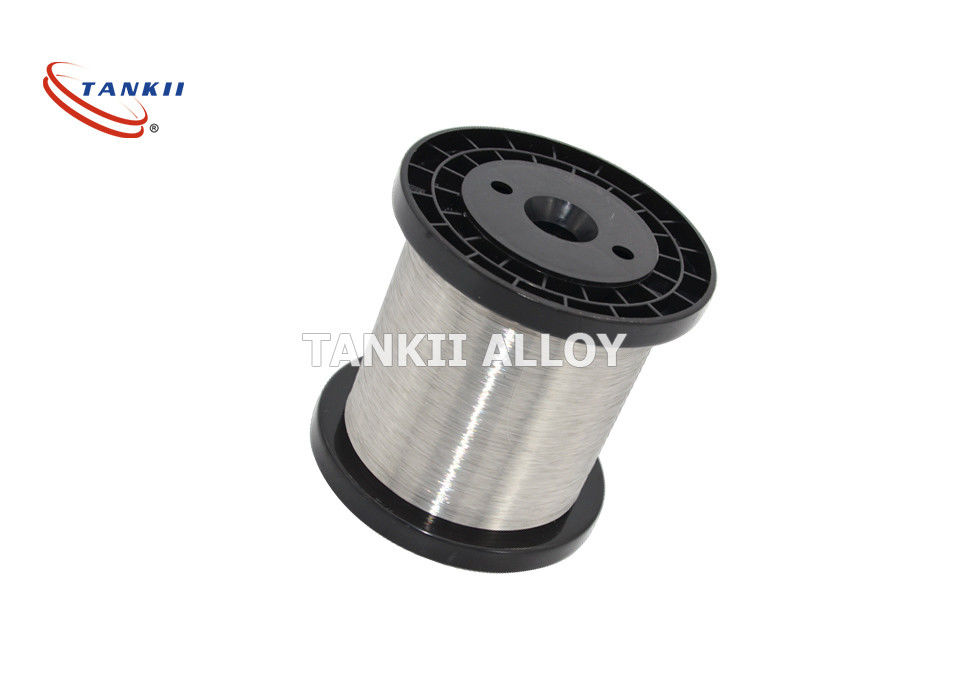

High Temperature Thermocouple NN NP 0.16mm Type N Thermocouple Wire Price
Thermocouple Wire (cable) is available in two grades; Thermocouple Grade wire & Extension Grade wire.
Typically, thermocouple grade is used to make the actual thermocouple sensor or sensing point (junction) itself , whereas thermocouple extension wire (cable) is used to connect thermocouple sensors to associated instrumentation systems, usually via an industrial terminal enclosure or thermocouple connector.
Type N thermocouple grade wire has greater emf stability and corrosion resistance than Type K, however the combination develops a lower emf output and cannot, therefore, be directly substituted.
The Type N thermocouple is composed of a nickel-14% chromium-1 1/2% silicon (+) wire versus a nickel 4 1/2% silicon-1/10% magnesium (-) wire. It was developed to be used under the same conditions as a Type K. Type N should be used in oxidizing or inert atmospheres with a service temperature range between -200°C and 1260°C (-330°F to 2300°F). The addition of silicon and chromium makes this type of thermocouple more resistant to Green-Rot and less drifting when compared to a Type K. The negative element, or NN, of a Type N thermocouple can be described by any of the following names: Nisil, nickel-silicon. The positive element, or NP, of a Type N thermocouple can be described by any of the following names: Nicrosil, nickel-chromium-silicon.
Type N Thermocouple (Nicrosil / Nisil): The Type N shares the same accuracy and temperature limits as the Type K. The type N is slightly more expensive. The type N has better repeatability between 572F to 932F (300C to 500C) compared to the type K.
Type N Temperature Range:
Consideration for bare wire type E thermocouple applications:
Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields,
such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Our products conform to the standards of IEC584 -1and IEC-2.
High Temperature Thermocouple NN NP 0.16mm Type N Thermocouple Wire Price
High Temperature Thermocouple NN NP 0.16mm Type N Thermocouple Wire Price
| Type | Tensile Strength | Elongation | EMF | ||
| (vs Platinum)(mV) | |||||
| N/mm² | % | 100℃ | 200℃ | 400℃ | |
| NNX | 625 | 25 | 0.969 | 1.951 | / |
| NPX | 692 | 26.7 | 1.800 | 3.968 | / |
| NN | 710 | 27 | 0.987 | 1.989 | 4.066 |
| NP | 615 | 30 | 1.789 | 3.947 | 8.894 |
Application:N type thermocouple
N type extension cable:
