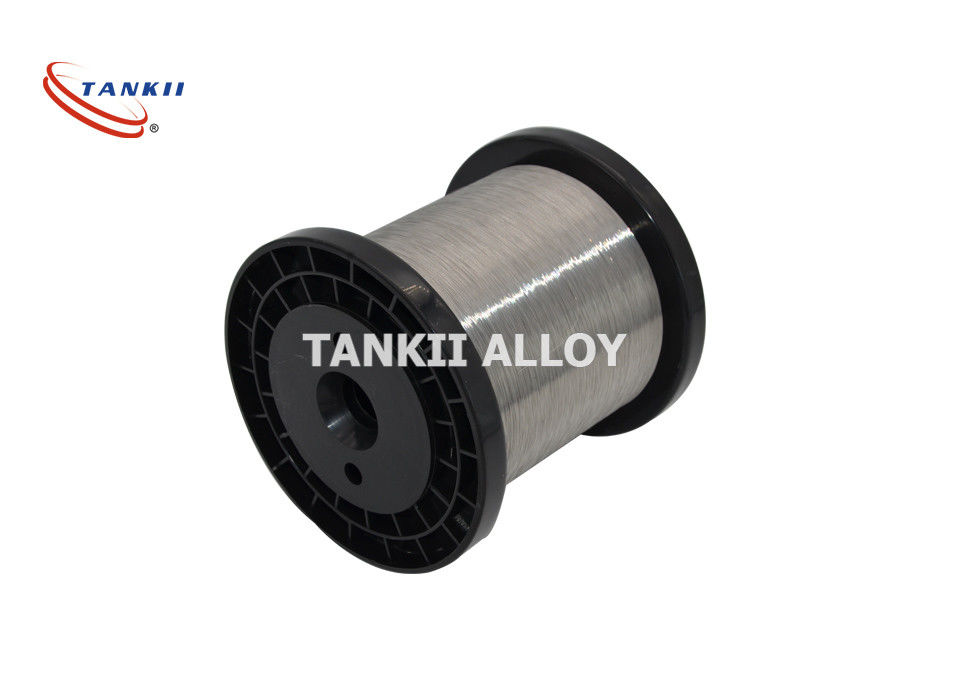

0Cr23Al5 Electric Resistance Fecral Alloy Wire For Furnace Heating

0Cr23Al5 Electric Resistance Fecral Alloy Wire For Furnace Heating
0Cr23Al5 Electric Resistance Fecral Alloy Wire For Furnace Heating

Large Image :  0Cr23Al5 Electric Resistance Fecral Alloy Wire For Furnace Heating

Product Details:
Place of Origin: Shanghai
Brand Name: Tankii
Certification: DIN, ASTM, JIS
Model Number: 0Cr23Al5
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Packaging Details: spool ,coil, or as clients' requirement
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000T/month

0Cr23Al5 Electric Resistance Fecral Alloy Wire For Furnace Heating

Description
Application: Furnace Heating Material: FeCrAl Alloy
Type: Wire Color: Nature Bright
Rated Voltage: 300/500v Rated Temperature: -60~450 Degrees Celsius
Packing: Wooden Case Moq: 20kgs
High Light:

Electric Resistance Fecral Alloy Wire

,

0Cr23Al5 Fecral Alloy Wire

,

Furnace Heating Fecral Alloy Wire

China wholesale FECRAL alloy 0Cr23Al5 electric resistance wire heating

We supply in the form of wire, foil, rod, bar, strip, sheet

FeCrAl alloy has the characteristic of high resistivity, low temperature resistance coefficient, high operating temperature, good anti-oxidation and anti-corrosion under high temperature.

It is widely used in industrial furnace, household appliances, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.



It can replace K-D in some places.

Main specifications and uses:
Conventional Product specifications: 0.05 ~ 10 mm

Uses: Mainly used in powder metallurgy furnace, diffusion furnace, radiant tube heater and all kinds of high-temperature furnace heating body.

User Manual
1. Rated Voltage: 220V/380V
2. The installation process to avoid knocking, to avoid the damp, hand-held stove wire, they should wear gloves. Wire should be installed after the furnace has remained flat, and prevent surface scratches, dirt, corrosion, or improper installation, by affecting the life of
3. In the rated voltage to use. In strong reducing atmosphere, acid atmosphere, an atmosphere of high humidity will affect the use of life;
4. Temperature before use should be in dry non-corrosive atmosphere, about 1000ºC spend a few hours, so that furnace wire protective film formed on the surface after normal use, so that can guarantee the normal life of furnace wire;
5. Furnace installation should ensure that the insulated wire good power to avoid touching furnace after the wire, guard against electric shock or burns.

If there is any question, pls be free to tell us.

Properties Grade 0Cr23Al5 / KAF /Alloy837
Cr Al Re Fe
22.5~24.5 4.2~5.0 Suitable Balance
Max Continuous Service Temperature(º C) Diameter 1.0-3.0
1250 C
Resisivity 20º C (Ω mm2/m) 1.35
Density(g/cm 3 ) 7.25
Approximate Melting Point( º C) 1500
Elongation (%) >12
Repeatedly Bend Frequency(F/R) 20º C >5
Continuous Service Time > 80/1300
Micrographic Structure Ferrite
