Product Details
Place of Origin: Shanghai
Brand Name: Tankii
Certification: DIN, ASTM, JIS
Model Number: 1Cr13al4
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Packaging Details: spool ,coil, or as clients' requirement
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000T/month
Application: |
Heating |

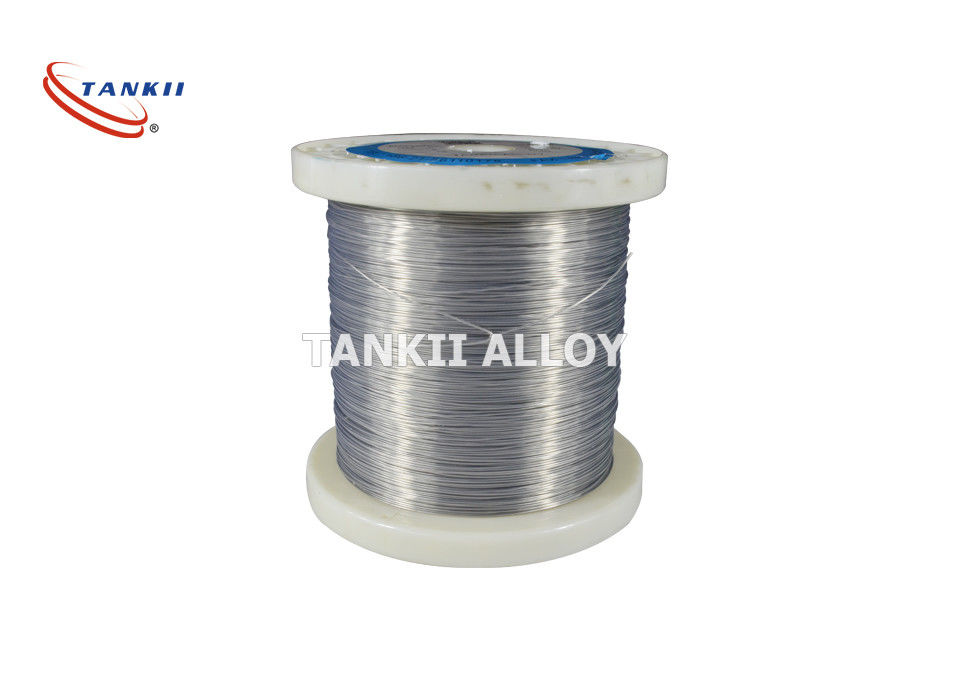

Product Name: |
1Cr13al4 |
Type: |
Wire |
Color: |
Nature |
Rated Voltage: |
300/500v |
Surface: |
Bright |
Rated Temperature: |
-60~450 Degrees Celsius |
Packing: |
Wooden Case |
Application: |
Heating |
Product Name: |
1Cr13al4 |
Type: |
Wire |
Color: |
Nature |
Rated Voltage: |
300/500v |
Surface: |
Bright |
Rated Temperature: |
-60~450 Degrees Celsius |
Packing: |
Wooden Case |
Chemical Content, %
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other | |
| Max | ||||||||||
| 0.12 | 0.025 | 0.020 | 0.50 | ≤0.7 | 12.0~15.0 | ≤0.60 | 4.0~6.0 | Balance | - | |
| Max Continuous Service Temperature: Resisivity 20ºC: Density: Thermal Conductivity: Coefficient of Thermal Expansion: Melting Point: Elongation: Micrographic Structure: Magnetic Property: |
950ºC 1.25ohm mm2/m 7.40g/cm3 52.7 KJ/m·h·ºC 15.4*10-6/ºC (20ºC~1000ºC) 1450ºC Min 16% Ferrite magnetic |
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1.000 | 1.005 | 1.014 | 1.028 | 1.044 | 1.064 | 1.090 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.120 | 1.132 | 1.142 | 1.150 | - | - | - |
Feature:
With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It i the ne environmental protection electric heating wire.And an alternative to the costly nichrome wire.Can be customized according to customer requirements
Usage:
It is widely used in industrial furnace, household electrical appliances, infrared heater, etc.
The key properties:
1.The thickness of surface insulation resistance to oxidation layer: 5-15 μ m.
2. Insulation resistance: multimeter detection infinity.
3.The voltage-endurance of insulating single layer is greater than the alternating voltage 60 ν without breakdown.
4. The use of voltage: 6-380 ν.
5. Using temperature: Maximum1200 ºC
6. Service life: not less than 6000 hours.
7.Thermal shock performance: Electric heating element can withstand the cold and hot impact 600-6000 times without deformation.
