Product Details:
Place of Origin: Shanghai
Brand Name: Tankii
Certification: DIN, ASTM, JIS
Model Number: 0cr23al5
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Packaging Details: spool ,coil, or as clients' requirement
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000T/month

Alloy 135 0cr23al5 Furnace Heating Element Corrosion Resistance

Description
Type: Strip Condition: New
Weight: Based Power Source: Electric
Voltage: 380v Warranty: 1 Year
Material: SIC Shape: Round Wire
Application: Furnace Heating MOQ: 20KG
High Light:

0cr23al5 Furnace Heating Element

,

Alloy 135 Furnace Heating Element

,

FeCrAl Furnace Heating Element

Quality Supplier alloy 135 /0cr23al5 Wire for Industrial Furnace Heating Elements

(Common Name:0Cr23Al5,Kanthal D, Kanthal, Alloy 815, Alchrome DK, Alferon 901, Resistohm 135,Aluchrom S, Stablohm 812)
Alloy135 is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.

Typical applications form Alloy135 are used in home appliances and industrial furnace,and kinds of elements in heaters and dryers.

Normal composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.06 0.025 0.025 0.70 Max 0.6 20.5~23.5 Max 0.60 4.2~5.3 Bal. -


Typical Mechanical properties(1.0mm)

Yield strength Tensile Strength Elongation
Mpa Mpa %
485 670 23


Typical Physical properties

Density (g/cm3) 7.25
Resistivity at 20ºC(мкОм*м) 1.3-1,4
Conductivity coefficient at 20ºC (WmK) 13
Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/ºC
20 ºC- 1000ºC 15



Specific heat capacity
Temperature 20ºC
J/gK 0.46
Melting point (ºC) 1500
Max continuous operating temperature in air (ºC) 1250
Magnetic properties non-magnetic


Temperature Factor of Electrical Resistivity

20ºC 100ºC 200ºC 300ºC 400ºC 500ºC 600ºC 700ºC 800ºC 900ºC 1000ºC 1100ºC 1200ºC 1300ºC
1 1.002 1.007 1.014 1.024 1.036 1.056 1.064 1.070 1.074 1.078 1.081 1.084 -


Style of supply

Alloy135W Wire D=0.03mm~8mm
Alloy135R Ribbon W=0.4~40mm T=0.03~2.9mm

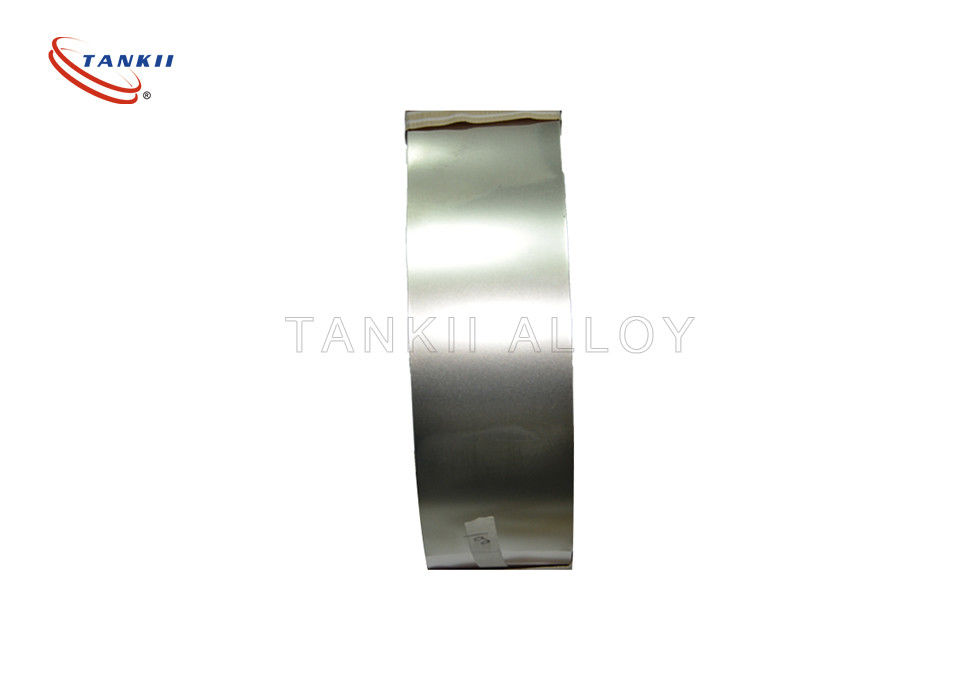

Alloy135S Strip W=8~250mm T=0.1~3.0mm
Alloy135F Foil W=6~120mm T=0.003~0.1mm
Alloy135B Bar Dia=8~100mm L=50~1000mm


FAQ

1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.

4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.

5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.

6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
