Product Details
Place of Origin: China
Brand Name: Tankii
Certification: Rohs
Model Number: 6J13
Payment & Shipping Terms
Minimum Order Quantity: 20kg per size
Packaging Details: Waterproof packing, in Wooden case
Delivery Time: 5~15 days as per the order qty
Payment Terms: T/T, Western Union
Supply Ability: 1000tons per year
Item: |

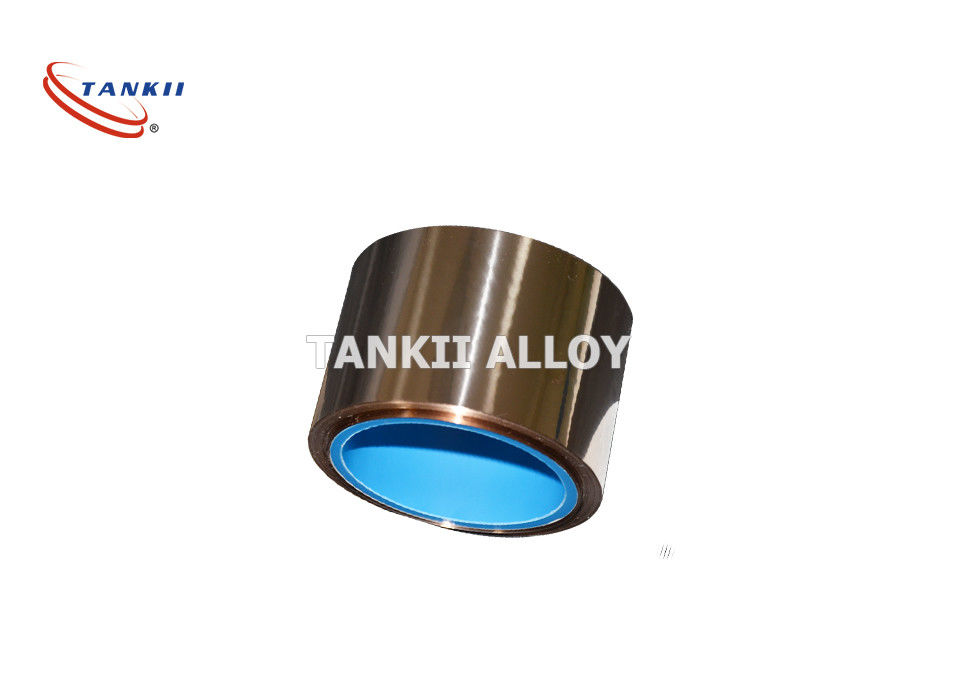

Manganese Bronze Precision Alloy 0.015mm Manganin Foil 6J12 /6J13 For Transducer |
Grade: |
6J12 /6J13 |
MOQ: |
20kg |
Lead Time: |
20 Days |
Item: |
Manganese Bronze Precision Alloy 0.015mm Manganin Foil 6J12 /6J13 For Transducer |
Grade: |
6J12 /6J13 |
MOQ: |
20kg |
Lead Time: |
20 Days |
Main chemical composition :
| Alloy type | Cu | Mn | Ni |
| 6J8 | rest | 8-10 | / |
| 6J12 | rest | 11-13 | 2-3 |
| 6J13 | rest | 11-13 | 2-5 |
Strip specification range
Thickness: 0.01-7 (mm) width: 5-300 (mm)
2. Characteristics:
The marked characteristics of manganese copper alloy is a very small temperature coefficient of resistance, low identical electromotive force, and has the special excellent resistance stability.
In the electrical and instrument measuring technology as well as the benchmark unit with a resistor is widely used.
Manganese copper alloy has good welding performance and machining performance, can form the fine silk, rolling piece, foil, but poor corrosion resistance and oxidation resistance.
3. Related parements of Manganin material:
| Item | 6J8 | 6J12 | 6J13 |
| Resistivity | 0.35±0.05 | 0.47±0.03 | 0.44±0.04 |
| TCRx10-6/°c | -5~+10 | -10~+20 | 0~40 |
| EMF V S Cu(0-100°c)uv/°c | ≤2 | ≤1 | ≤2 |
| Density(g/cm3) | 8.7 | 8.4 | 8.4 |
| Melting point (°c) | 960 | 960 | 960 |
| Tensile strength(MPa) | 490--539 | 490--539 | 490--539 |
| Elongation(%) | 10-30 | 10-30 | 10-30 |
| Service temperature(°c) | 10-80 | 5-45 | 10-80 |
4. Packing detail
1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
3. Products and services
5. Why pick us?
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Fast delivery;
Should have any question, please let me know freely,
