Product Details
Place of Origin: CHINA
Brand Name: Tankii
Model Number: Nickel alloy wire
Payment & Shipping Terms
Minimum Order Quantity: 15KG
Packaging Details: spool，coil
Delivery Time: 5-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000kg/month
Certification: |
ISO9001 |
Application: |
Resistance Heating Elements |
Type: |
Resistance Wire |
Color: |
Requirement |
Conductor: |
Nickel Wire |
Product Name: |
Ni80Cr20 Resistance Heating Flat Wire |
Packing: |
As Request |
Certification: |
ISO9001 |
Application: |
Resistance Heating Elements |
Type: |
Resistance Wire |
Color: |
Requirement |
Conductor: |
Nickel Wire |
Product Name: |
Ni80Cr20 Resistance Heating Flat Wire |
Packing: |
As Request |

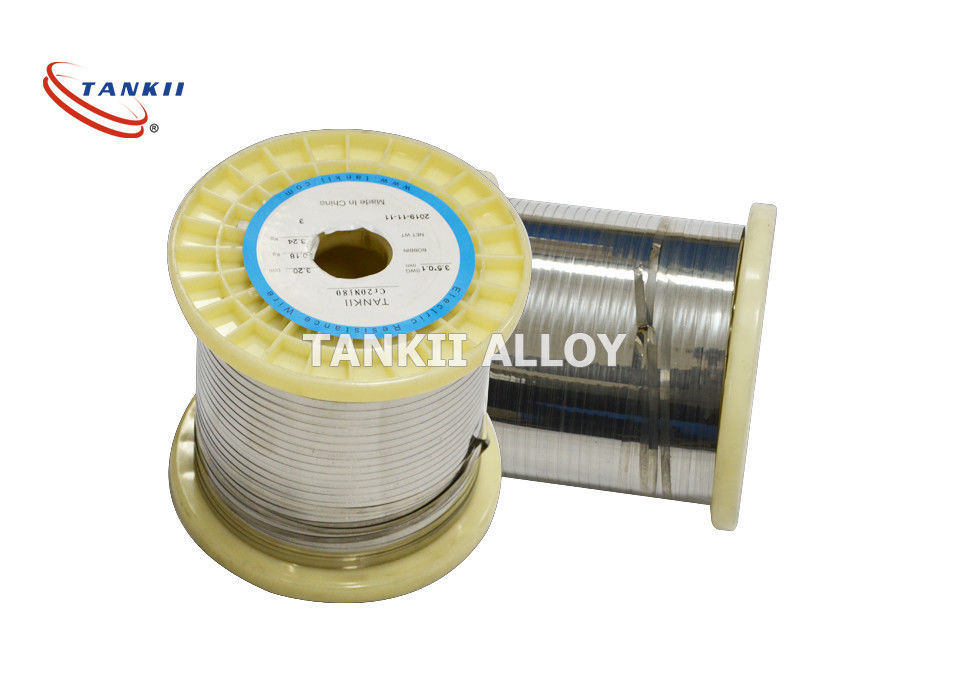

NiCrA/Tophet A/HAI-NiCr 80/Ni80Cr20 Resistance Flat Wire For Resistance Heating Elements
Chemical Composition and Main Properties of Nichrome |
||||||
| Properties Grade | NiCr 80/20 | NiCr 70/30 | NiCr 60/15 | NiCr 35/20 | NiCr 30/20 | |
| Main Chemical Composition | Ni | Balance | Balance | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤ 1.0 | ≤ 1.0 | Balance | Balance | Balance | |
| Max Continuous Service Temperature(oC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resisivity 20oC (Ω mm2/m) | 1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density (g/cm3) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Thermal Conductivity(KJ/m@ h@ oC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of Thermal Expansion(α × 10-6/oC) | 18 | 17 | 17 | 19 | 19 | |
| Melting Point( oC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation(%) | > 20 | > 20 | > 20 | > 20 | > 20 | |
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic Property | nonmagnetic | nonmagnetic | nonmagnetic | Weak magnetic | Weak magnetic |
|
