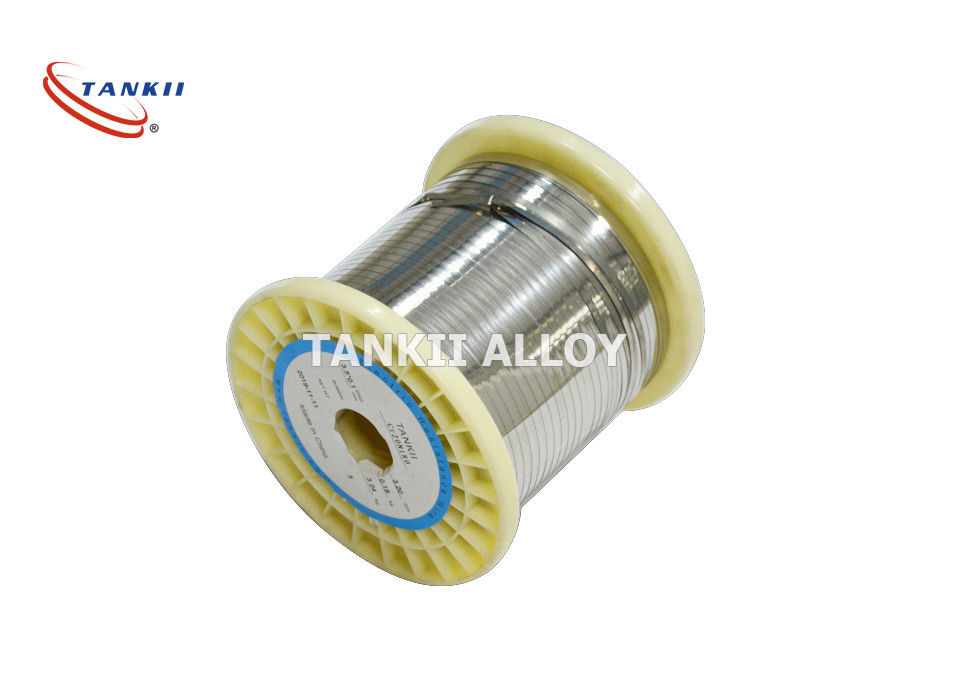

Ni80Cr20 Nickel Resistance Wire For Household Appliances

Name: Ni80Cr20 Nickel Resistance Wire For Household Appliances
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Nickel alloy wire
Price: 111.80 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Tankii

Certification: ISO 9001

Model Number: Nickel alloy wire

Payment & Shipping Terms

Minimum Order Quantity: 15KG

Packaging Details: spool，coil

Delivery Time: 5-30 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 2000kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Ni80Cr20 Nickel Resistance Wire, Metallurgical Nickel Resistance Wire, Anti Corrosion Nickel Resistance Wire


Application:	Heating	Type:	Flat Wire
Conductor:	Nickel Wire	Product Name:	Nikrothal 80 Ribbon
Certification:	ISO9001	Packing:	As Request

Application:	Heating
Type:	Flat Wire
Conductor:	Nickel Wire
Product Name:	Nikrothal 80 Ribbon
Certification:	ISO9001
Packing:	As Request

Description

Ni80Cr20 Nickel Resistance Wire For Household Appliances

Resistance Flat Wire (NiCr80/20) /Ni80Cr20/Cr20Ni80/X20H80/Nikrothal 80 Ribbon

Normal composition%

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.03	0.02	0.015	0.60	0.75~1.60	20.0~23.0	Bal.	Max 0.50	Max 1.0	-

Typical Mechanical properties(1.0mm)

Yield strength	Tensile Strength	Elongation
Mpa	Mpa	%
420	810	30

Nichrome Rod/Nichrome Wire (NiCr 80/20)

Chemical Composition: Nickel 80%, Chrome 20%

Condition: Bright/Acid white/Oxidied Color

Diameter: 0.018mm~1.6mm in spool, 1.5mm-8mm packing in coil, 8~60mm in rod

Nichrome Round Wire: Diameter 0.018mm~10mm

Nichrome Ribbon: Width 5~0.5mm, thickness 0.01-2mm

Nichrome Strip: Width 450mm~1mm, thickness 0.001m~7mm

Diameter: 1.5mm-8mm packing in coil, 8~60mm in rod

Grade: Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe, Ni30Cr20

Ni80, Ni70,Ni60, Ni40,

Nichrome's metallurgical structure confers them a very good plasticity when cold.

Production Standard: ASTM B603, DIN 17470, JIS C2520, GB/T1234.
Our advantage:High quality,short delivery time,small MOQ.
Characteristics:Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

Usage:Resistance heating elements;Material in metallurgy;Household appliances;Mechanical manufacturing and other industries.
