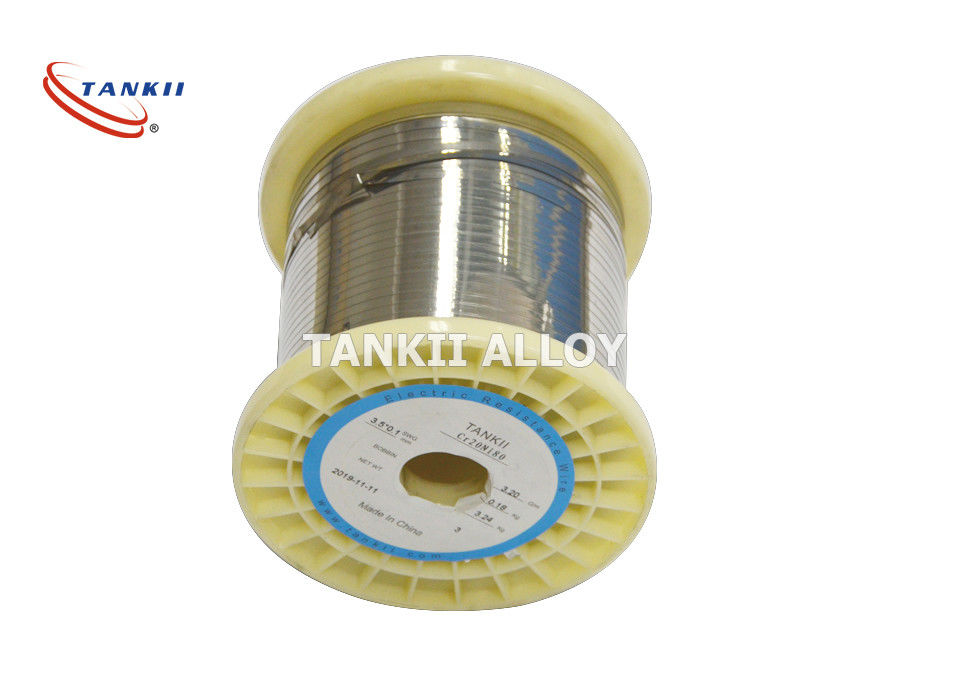

Resistohm 80 Nichrome Flat Wire Oxidation Resistance For Resistor

Name: Resistohm 80 Nichrome Flat Wire Oxidation Resistance For Resistor
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Nickel alloy flat wire
Price: 111.80 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Tankii

Certification: ISO 9001

Model Number: Nickel alloy flat wire

Payment & Shipping Terms

Minimum Order Quantity: 5KG

Packaging Details: spool，coil

Delivery Time: 5-30 days

Payment Terms: Western Union, T/T, L/C

Supply Ability: 2000kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Resistohm 80 Nichrome Flat Wire, Resistor Nichrome Flat Wire, Oxidation Resistance Nichrome Flat Wire


Material:	Nickel Alloy	Application:	Heating
Type:	Resistance Wire	Conductor Type:	Solid
Certification:	ISO9001	Packing:	As Request

Material:	Nickel Alloy
Application:	Heating
Type:	Resistance Wire
Conductor Type:	Solid
Certification:	ISO9001
Packing:	As Request

Description

Resistohm 80 Nichrome Flat Wire Oxidation Resistance For Resistor

High resistance Resistohm 80/Nikrothal 80/Nichrome flat Wire for resistor

NiCr 80/20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications for NiCr80/20 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements, Electric motor.

Normal composition%

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.03	0.02	0.015	0.60	0.75~1.60	20.0~23.0	Bal.	Max 0.50	Max 1.0	-

Typical Mechanical properties(1.0mm)

Yield strength	Tensile Strength	Elongation
Mpa	Mpa	%
420	810	30

Typical Physical properties

Density (g/cm3)	8.4
Electrical resistivity at 20ºC(Om*mm2/m)	1.09
Conductivity coefficient at 20ºC (WmK)	15

Coefficient of thermal expansion
Temperature	Coefficient of Thermal Expansion x10-6/ºC
20 ºC- 1000ºC	18

Specific heat capacity
Temperature	20ºC
J/gK	0.46

Melting point (ºC)	1400
Max continuous operating temperature in air (ºC)	1200
Magnetic properties	non-magnetic

Temperature Factors Of Electrical Resistivity
20ºC	100ºC	200ºC	300ºC	400ºC	600ºC
1	1.006	1.012	1.018	1.025	1.018
700ºC	800ºC	900ºC	1000ºC	1100ºC	1300ºC
1.01	1.008	1.01	1.014	1.021	-

Resistohm 80 Nichrome Flat Wire Oxidation Resistance For Resistor 0
