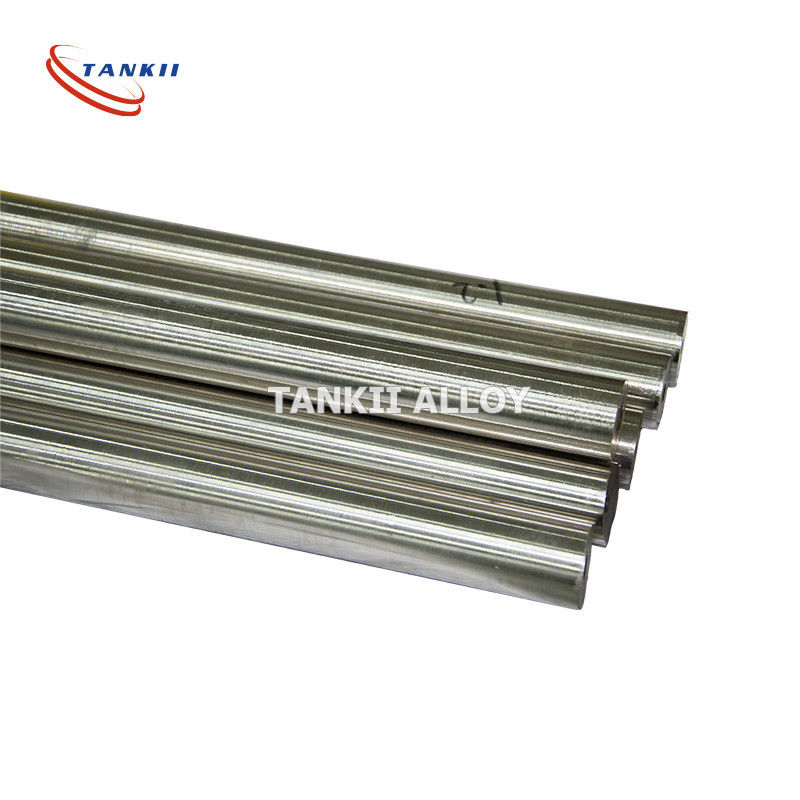

Bright Annealed Manganin 6j12 Precision Alloy ETFT Insulation

Bright Annealed Manganin 6j12 Precision Alloy ETFT Insulation
Bright Annealed Manganin 6j12 Precision Alloy ETFT Insulation Bright Annealed Manganin 6j12 Precision Alloy ETFT Insulation Bright Annealed Manganin 6j12 Precision Alloy ETFT Insulation

Large Image :  Bright Annealed Manganin 6j12 Precision Alloy ETFT Insulation

Product Details:
Place of Origin: Shanghai
Brand Name: Tankii
Certification: DIN, ASTM, JIS
Model Number: 6j12
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Price: 15-30$
Packaging Details: spool ,coil, or as clients' requirement
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000T/month

Bright Annealed Manganin 6j12 Precision Alloy ETFT Insulation

Description
Material: Copper Nickel Application: Heating
Insulation Material: ETFT Shape: Bar
Color: Requirement Surface: Bright Annealed
Feature: High Resistance MOQ: 20kg
Port: Shanghai
High Light:

Manganin 6j12 Copper Nickel Alloy

,

Bright Annealed Copper Nickel Alloy

,

ETFT Insulation Copper Nickel Alloy

Bright Annealed Manganin 6j12 Precision Alloy ETFT Insulation



Cu-Nickel Manganin 6j12 Bobbin for Precision Industry



6J12 is a copper -manganese nickel (CuMnNi alloy) for use at room temperature.



Similar Grade



GB JIS ASTM SW DIN W.Nr ROCT
6J12 - - Mangnin 47 - - -



Specification



GB/T 6145-1999





Product Forms



Wire,Ribbon,Strip,Tape



Chemical Compositions,%



Alloy Ni  Mn Cu
6J12 2-3 11-13 Rest



Physical Property



Max Continuous Service Temp 5-45℃ Elongation 6~15%
Resistivity at 20℃ 0.47ohm mm2/m EMF vs Cu,µV/℃(0~100℃) 1(max)
Density 8.9g/cm3 Tensile Strength of soft condition 343-539N/mm2
Thermal Conductivity 40kj/m·h·℃ Tensile Strength of hard condition >637 N/mm2
TCR at 20℃ -3~+20x10-6/℃ Hardness of soft condition 100-172 HV
Melting  Point  1450℃ Hardness of hard condition  140-300HV

Feature

The alloy is Characterized by very low thermal eelctromotives force (emf) compared to copper.



Application



6J12 IS Typically used for the manufacturing of resistance standards,precision wire resistors,potentiometers,shunts and other electrical and electronic components.



6j12 widely used for precision resistors with the highest  requirements,the resistors should be carefully stabilised and the application temperature should not exceed +60℃.Exceeding the maximum working temperature in air may result in a resistance drift  generated by oxidixing .Thus,the long term stability can be affected negatively.As  a result,

the resistivity  as  well as the  temperature coefficient  of the elextric resistance may slightly change.



It is also used as low cost replacement material for silver solder for hard metal mounting.The alloy's low emf vs copper makes it deal for use in electrical circuits,especially D.C., where a spurious thermal emf could cause malfunctioning of electronic equipment .Due to the low operating  temperature,the temperature  coefficient  of resistance is controlled to be low over a   range of 15 to 35℃.



Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.



Bright Annealed Manganin 6j12 Precision Alloy ETFT Insulation 0Bright Annealed Manganin 6j12 Precision Alloy ETFT Insulation 1Bright Annealed Manganin 6j12 Precision Alloy ETFT Insulation 2Bright Annealed Manganin 6j12 Precision Alloy ETFT Insulation 3Bright Annealed Manganin 6j12 Precision Alloy ETFT Insulation 4Bright Annealed Manganin 6j12 Precision Alloy ETFT Insulation 5Bright Annealed Manganin 6j12 Precision Alloy ETFT Insulation 6Bright Annealed Manganin 6j12 Precision Alloy ETFT Insulation 7
