Iron Chromium Aluminum FeCrAl Resistance Wire 0.05mm

Product Details

Place of Origin: China Mainland

Brand Name: TANKII

Certification: ISO9001

Model Number: 0Cr25Al5

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: Negotiable

Packaging Details: In Coil

Delivery Time: 7~20 days after getting the payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 tons/year

Get Best Price
Contact Now
Specifications
Highlight:

FeCrAl Resistance Wire 0.05mm

,

Ferritic Electric Resistance Wire

,

1.5mm Thick Electric Resistance Wire

Item:
Iron Chromium Aluminum Alloy -FeCrAl Heating Resistance Wire 0.05~8mm
Dia:
0.05~8mm
Package:
Bobbin, Spools, Wooden Box
Leading Time:
7~20 Dyas After Getting The Payment
Item:
Iron Chromium Aluminum Alloy -FeCrAl Heating Resistance Wire 0.05~8mm
Dia:
0.05~8mm
Package:
Bobbin, Spools, Wooden Box
Leading Time:
7~20 Dyas After Getting The Payment
Description
Iron Chromium Aluminum FeCrAl Resistance Wire 0.05mm





Iron Chromium Aluminum Alloy -FeCrAl Heating Resistance Wire 0.05~8mm​



Ferritic alloy, mainly contain iron, chromium, aluminum, design for working environment more than 1200℃

-0Cr25Al5 high temperature resistance up to 1250℃,mainly using for appliance, with advantage of high resistivity and good oxidation resistance.



Uses:  toasters and hair dryers, fan heaters, ceramic glass top heaters in ranges, boiling (hot) plates, suspended coil and straight wire elements for radiators, convection heaters, as porcupine elements for hot air guns, radiators,


1. Description



FECRAL  Has been used extensively as heating elements in industrial furnaces and electrical kilns.
FECRAL  Has less hot strength than Tophet alloys but much higher melting point.
Shanghai TANKII ALLOY MATERIAL Co., Ltd.
FECRAL AND ALCHROME ALLOY PRODUCER IN China, MOST PROFESSIONAL IN THE WORLD


2.Specification
1).Locomotive resistance strip:
Thickness:0.6mm-1.5mm
Width:60mm-90mm

2).Electric ceramic cooktop resistance strip:
Thickness:0.04mm-1.0mm
Width:5mm-12mm
Thickness&Width:(0.04mm-1.0mm)×12mm(above)

3).Low  resistance ribbon:
Thickness&Width:(0.2mm-1.5mm)*5mm

4).Industrial furnace ribbon:
Thickness:1.5mm-3.0mm
Width:10mm-30mm

5).Wire: Diameter:0.1mm-8mm




FECRAL HIGH RESISTANCE WIRES 0CR25AL5 WIRE USED FOR Heating Fans


3. Details of tankii  products

Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy

Properties Grade

1Cr13Al4

0Cr25Al5

0Cr21Al6

0Cr23Al5

0Cr21Al4

0Cr21Al6Nb

0Cr27Al7Mo2

Main Chemical Composition
(%)


Cr

12.0-15.0

23.0-26.0

19.0-22.0

22.5-24.5

18.0-21.0

21.0-23.0

26.5-27.8

Al

4.0-6.0

4.5-6.5

5.0-7.0

4.2-5.0

3.0-4.2

5.0-7.0

6.0-7.0

Re

opportune

opportune

opportune

opportune

opportune

opportune

opportune

Fe

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.













Nb0.5

Mo1.8-2.2

Max Continuous Service Temperature(oC)

950

1250

1250

1250

1100

1350

1400

Resisivity 20oC (Ωmm2/m)

1.25
±0.08


1.42
±0.06


1.42
±0.07


1.35
±0.07


1.23
±0.07


1.45
±0.07


1.53
±0.07


Density(g/cm3)

7.4

7.1

7.16

7.25

7.35

7.1

7.1

Thermal Conductivity

52.7

46.1

63.2

60.2

46.9

46.1

45.2

(KJ/m@h@oC)

Coefficient of Thermal Expansion(α×10-6/oC)

15.4

16

14.7

15

13.5

16

16

Approximate Melting Point( oC)

1450

1500

1500

1500

1500

1510

1520

Tensile Strength(N/mm2)

580-680

630-780

630-780

630-780

600-700

650-800

680-830

Elongation(%)

>16

>12

>12

>12

>12

>12

>10

Section Variation

65-75

60-75

65-75

65-75

65-75

65-75

65-75

Shrink Rate (%)

Repeatedly Bend Frequency(F/R)

>5

>5

>5

>5

>5

>5

>5

Hardness (H.B.)

200-260

200-260

200-260

200-260

200-260

200-260

200-260

Continuous Service Time

no

≥80/1300

≥80/1300

≥80/1300

≥80/1250

≥50/1350

≥50/1350

Micrographic Structure

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Ferrite

Magnetic Property

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic

Magnetic


Typical application areas of FeCrAl wires

  • Pre-heating of aluminium

  • Homogenising of aluminium

  • Heat treatment in the metallurgical industry

  • Drying of ore concentrates

  • Drying of materials in the wood processing industry

  • Roasting and drying in the food industry

  • Baking in large bakery ovens

  • Drying of chemicals

  • Drying and stoving of paints (stoving furnaces)

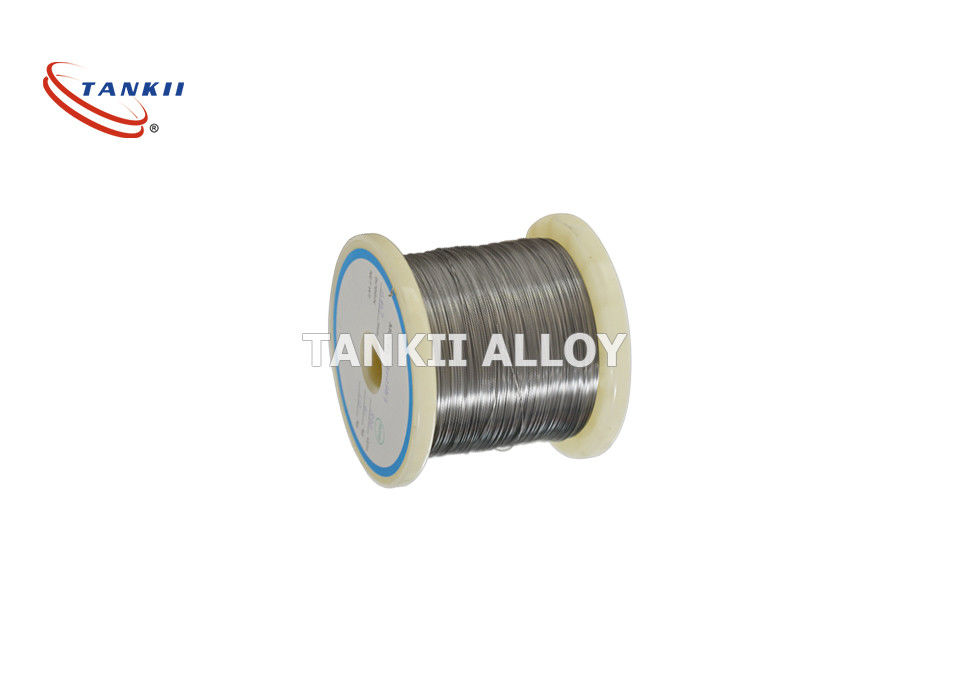

Iron Chromium Aluminum FeCrAl Resistance Wire 0.05mm 0

Iron Chromium Aluminum FeCrAl Resistance Wire 0.05mm 1
Please call me at +86-18017475212 or email to me for more information on FeCrAl products.
