Bayonet Air Water Furnace Heating Element For Industrial Appliance

Name: Bayonet Air Water Furnace Heating Element For Industrial Appliance
Brand: TANKII
SKU: bayonent heating elements
Rating: 4.9 (199 reviews)

Product Details

Place of Origin: Shanghai,China

Brand Name: TANKII

Certification: JIS,GB,DIN,BS,ASTM,AISI,CTI

Model Number: bayonent heating elements

Payment & Shipping Terms

Minimum Order Quantity: 20pcs

Packaging Details: on spool,paper box,wooden case/pallet,in coil

Delivery Time: 30days

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 600pcs per moth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Ceramic Bayonet Furnace Heating Element, 380v Furnace Heating Element, FeCrAl Furnace Heating Element


Port:	Shanghai,China	Brand:	Tankii
Condition:	New	Power Source:	Electric
Type:	Air Heater	Dimension:	Custom-made
Core Compenents:	Heating Tube	Warranty:	1 Year
Voltage:	380v	Working Temperature:	20℃-280℃
Key Selling Point:	Sustainable	Application:	Various Industries
Transport Package:	Standard Export Packing	OEM:	Available
Weight:	Based	After-sales Service Provided:	Online Support
Color:	Bright	Bend Strength:	>300 Kg
MOQ:	20pcs

Port:	Shanghai,China
Brand:	Tankii
Condition:	New
Power Source:	Electric
Type:	Air Heater
Dimension:	Custom-made
Core Compenents:	Heating Tube
Warranty:	1 Year
Voltage:	380v
Working Temperature:	20℃-280℃
Key Selling Point:	Sustainable
Application:	Various Industries
Transport Package:	Standard Export Packing
OEM:	Available
Weight:	Based
After-sales Service Provided:	Online Support
Color:	Bright
Bend Strength:	>300 Kg
MOQ:	20pcs

Description

Bayonet Air Water Furnace Heating Element For Industrial Appliance

Product Description

Bayonet heating element is constructed using several refractory ceramic blocks assembled together to the required length. The Nichrome wire heating element is inserted into the ceramic blocks, with a terminal block at one end.

This heating element assembly is then inserted into a pre-assembled special protection tube, when used in liquid immersion and gas application. However, bayonet heating element can also be used in direct air-heating application without the protection tube.

Specification

All heating element are custom-made, and the power ratings are according to the length of the bayonet heaters shown in the table below .

Both Ø29mm and Ø32mm heater will fit into a 1 ½ inch (Ø38mm) metal protection sheath.

The Ø45mm ceramic bobbin will fit into a 2 inch (Ø51.8mm) metal protection sheath.

Infrared heater	Ceramic bayonet heating element
Insulation	Alumina ceramic
Heating wire	NiCr 80/20 wire, FeCrAl wire
Voltage	12V-480V or as customer's demand
Power	100w-10000w based on your length
High temperature	1200-1400 degree celsius
Corrosion preventive	Yes
Material	Ceramic and Stainless Steel

Features

Offers a large area to heat liquids or semi-solid materials like wax, fats, oil and bitumen.

Suitable for indirect heating of gases and liquids, where it is inserted into a pocket or protection tube in the process tank, wherein, it can be repaired or replaced without draining the process tank.

Wide range of lengths, voltages and power is available to meet customers’ specific requirement.

Benefit

Simple and low-cost installation

Ease of maintenance and repair

Energy efficient as 100% of heat generated is within the solution

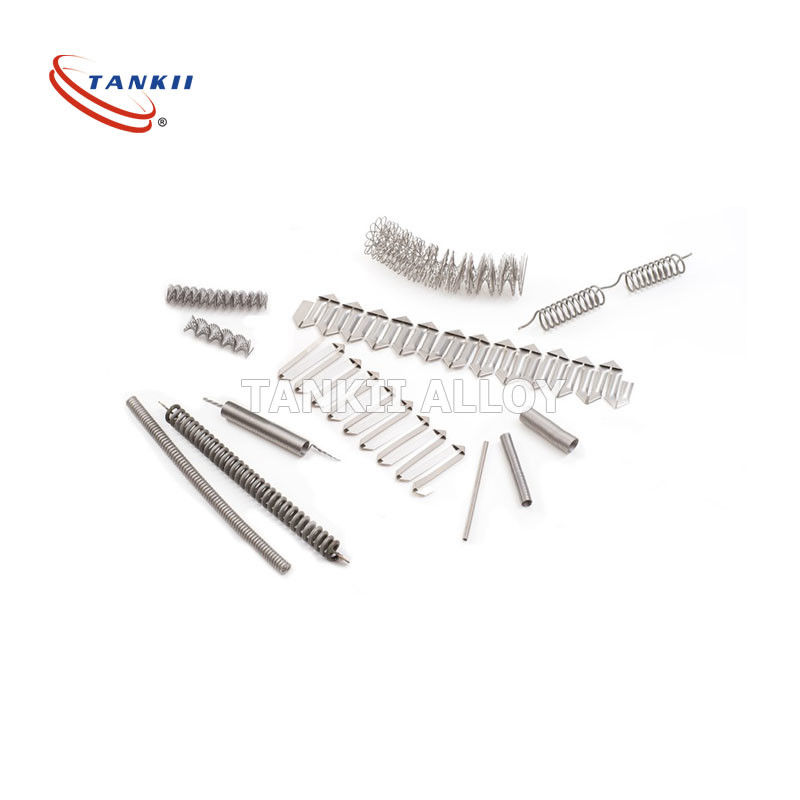

Bayonet Air Water Furnace Heating Element For Industrial Appliance 0
