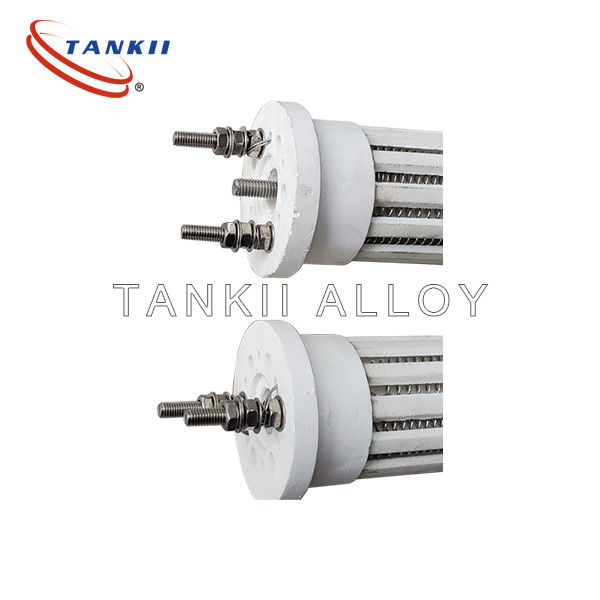

100w Stainless Steel Bayonet Furnace Heating Element For Industry

Product Details

Place of Origin: Shanghai,China

Brand Name: TANKII

Certification: CE,ISO9001,ISO14001

Model Number: bayonet heating element

Payment & Shipping Terms

Minimum Order Quantity: 20PCS

Price: $10~$25/KG

Packaging Details: on spool,paper box,wooden case/pallet,in coil

Delivery Time: 30days

Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability: 600PCS per moth

Get Best Price
Contact Now
Specifications
Highlight:

SS Bayonet Furnace Heating Element

,

100w Furnace Heating Element

,

ISO9001 Furnace Heating Element

Port:
Shanghai,China
Brand:
TANKII
Feature:
Sturdy Construction
Peimary Elements Alloys:
NiCr 80/20,Ni/Cr 70/30 And Fe/Cr/Al
Power Rating:
Up To 100 KW/element
Voltage:
24v~380v
Power:
100w~10000w
Max Working Temperature:
2280°F (1250°C)
Material:
Stainless Steel
MOQ:
20PCS
Port:
Shanghai,China
Brand:
TANKII
Feature:
Sturdy Construction
Peimary Elements Alloys:
NiCr 80/20,Ni/Cr 70/30 And Fe/Cr/Al
Power Rating:
Up To 100 KW/element
Voltage:
24v~380v
Power:
100w~10000w
Max Working Temperature:
2280°F (1250°C)
Material:
Stainless Steel
MOQ:
20PCS
Description
100w Stainless Steel Bayonet Furnace Heating Element For Industry

Production Description:

Bayonet heating elements are a reliable and efficient solution for electric heating applications. Bayonets are rugged, deliver a lot of power and are extremely versatile when used with radiant tubes.



These elements are custom designed for the voltage and input (KW) required to satisfy the application. There are a wide variety of configurations available in either large or small profiles. Mounting can be vertical or horizontal, with heat distribution selectively located according to the required process. Bayonet elements are designed with ribbon alloy and watt densities for furnace temperatures up to 1800°F (980°C




ELEMENT
O.D. (in.)
(NiCr ALLOY)
Max Kilowatts/Linear Foot ELEMENT
O.D. (in.)
(FeCrAl ALLOY)
UP TO 1000°F 1000°F To 1350°F 1350°F To 1700°F 1700°F TO 2050°F 2050°F TO 2250°F
2 3/4 2.38 2.20 1.88 1.56
      2.28 2.10 1.87 2 5/8
3 3/8 3.80 3.47 2.96 2.44
      3.83 3.48 3.12 3 1/8
3 3/4 4.57 4.14 3.48 2.94
      3.83 3.48 3.12 4 5/16
4 3/4 6.46 5.83 4.99 4.14
      3.83 5.40 4.90 4 7/8
5 3/4 7.26 6.59 5.68 4.68
      6.43 5.84 5.28 6
6 1/8 8.12 7.36 6.32 5.27
      7.28 6.60 6.00 6 3/4
7 3/4 9.76 8.86 7.62 6.36





Advantages

· Element replacement is fast and easy. Element changes can be made while the furnace is hot, following all plant safety procedures. All electrical and replacement connections can be made outside the furnace. No field welds are necessary; simple nut and bolt connections allow for quick replacements. In some cases, replacement can be completed in as little as 30 minutes depending on the size of the element complexity and accessibility.

· Each element is custom designed for peak energy efficiency. Furnace temperature, voltage, desired wattage and material selection are all used in the design process.

· Inspection of the elements can be performed outside the furnace.

· When necessary, as with a reducing atmosphere, bayonets can be operated in sealed alloy tubes.

· Repairing a SECO/WARWICK bayonet element may be an economical alternative. Consult us for current pricing and repair options.

Company Profile

Shanghai Tankii Alloy Material Co,. Ltd focus on the production of Nichrome alloy,thermocouple  wire,FeCrAl alloy,presicion alloy ,copper nickel alloy ,thermal spray alloy etc in the form of wire,sheet ,tape,strip,rod and plate. We 've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system .We own a complete set of advanced production flow of refining ,cold reduction ,drawing and heat treating etc. We also proudly have  independent R&D capacity.

Shanghai Tankii Alloy  Material Co,. Ltd has accumulated lots of experiences over 35 years in this field.During these years,more than 60 management elites and high science and technology talents were employed.They participated in every walk of the company life,which make our company keep blooming and invincible  in the  competitive market.

Based on the principle of "first quality ,sincere service",our managing ideology is pursuing technology innovation and creating the top brand in the alloy field.We persist in quality -the foundation of the survival.It is our forever ideology  to serve you with full heart and soul.We committed to provide customer all over the world with high-quality,competitive products and perfect service.

Our products,such as nichrome alloy,precision alloy,thermocouple wire,frcral alloy,copper nickel alloy,thermal spray alloy have been exported to over 60 countries in the world.

We are willing to establish strong and long-time partnership with our customers.

Most complete range of products dedicated to resistance,thermocouple and furnace manufacturers.

Quality with end to end production control

Technical support and customer service.100w Stainless Steel Bayonet Furnace Heating Element For Industry 0100w Stainless Steel Bayonet Furnace Heating Element For Industry 1100w Stainless Steel Bayonet Furnace Heating Element For Industry 2100w Stainless Steel Bayonet Furnace Heating Element For Industry 3
