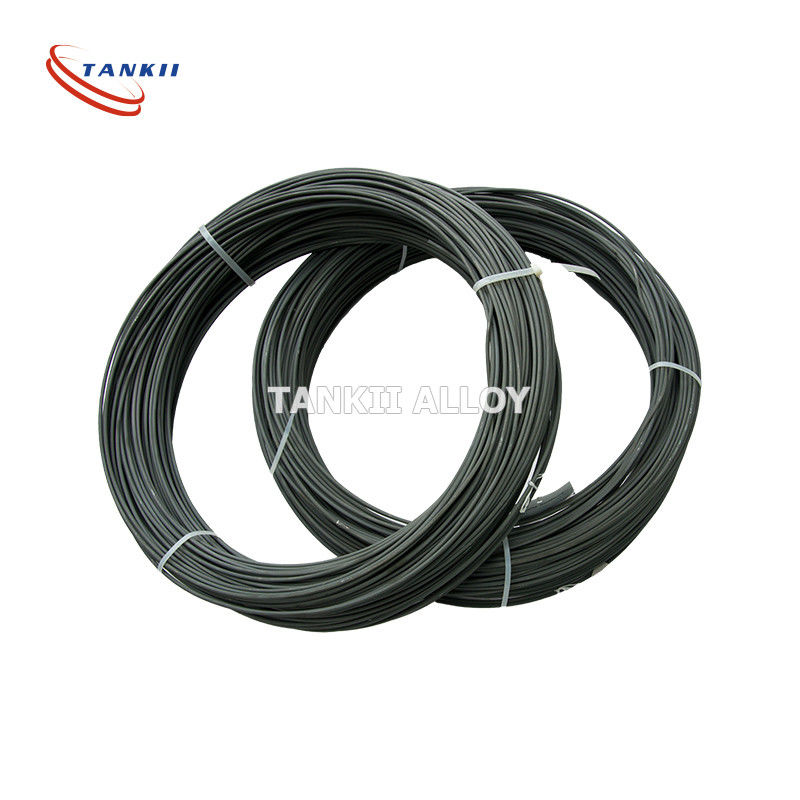

Superfine 0.1mm Type K Thermocouple Wire Oxidized

Product Details

Place of Origin: Shanghai

Brand Name: TANKII

Certification: ISO9001

Model Number: type K

Payment & Shipping Terms

Minimum Order Quantity: 30kg

Price: usd+65+kg

Packaging Details: Packaging:Plastic film inside , wooden box outside , choose the suitable packing, Alos it can be customized by the clients' demand.

Delivery Time: 8-20 days

Payment Terms: L/C, T/T, Western Union,paypal

Supply Ability: 200+ton+month

Get Best Price
Contact Now
Specifications
Highlight:

0.1mm Type K Thermocouple Wire

,

Superfine Type K Thermocouple Wire

,

Oxidized Type K Thermocouple Wire

Conductor Type:
Solid Bare
Application:
Heating
Conductor Material:
NrCr-NiSi
Surface:
Bright/ Oxidized
Conductor Type:
Solid Bare
Application:
Heating
Conductor Material:
NrCr-NiSi
Surface:
Bright/ Oxidized
Description
Superfine 0.1mm Type K Thermocouple Wire Oxidized

Product Description
Type K Thermocouple wire superfine wire 0.05mm 0.1mm

NiCr-NiSi (Type K) thermocouple finds the widest use in all basemetal thermocouple, at temperature above 500 °C.

Type K thermocouple has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:

(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.

Detailed Parameter

Chemical Composition

Conductor Name

Polarity

Code

Nominal Chemical Composition /%

Ni

Cr

Si

Ni-Cr

Positive

KP

90

10

--

Ni- Si

Negative

KN

97

--

3
Working Temperature

Diameter/mm

Long time Working temperature /ºC

Short period Working temperature /ºC

0.3

700

800

0.5

800

900

0.8,1.0

900

1000

1.2,1.6

1000

1100

2.0,2.5

1100

1200

3.2

1200

1300
Application:
Heating - Gas burners for ovens
Cooling - Freezers
Engine protection - Temperatures and surface temperatures
High temperature control - Iron casting


Superfine 0.1mm Type K Thermocouple Wire Oxidized 0Superfine 0.1mm Type K Thermocouple Wire Oxidized 1Superfine 0.1mm Type K Thermocouple Wire Oxidized 2Superfine 0.1mm Type K Thermocouple Wire Oxidized 3Superfine 0.1mm Type K Thermocouple Wire Oxidized 4
