2.0mm Ignition Plug 1400°C Iron Based Wire FeCrAl Alloy

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO 9001

Model Number: A1

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotatioin

Packaging Details: Spool,coil,cartoon

Delivery Time: 5-30 days

Payment Terms: T/T, Western Union

Supply Ability: 20000kg/month

Get Best Price
Contact Now
Specifications
Highlight:

Iron Based Wire FeCrAl Alloy

,

2.0mm Ignition Plug Wires

,

1400°C Fecral Wire

Product Name:
Spark Plug Wire
Shape:
Wire
Material:
FeCrAl
Application:
Spark Plug Wire
Size:
Customer's Requirement
Type:
Bare
Product Name:
Spark Plug Wire
Shape:
Wire
Material:
FeCrAl
Application:
Spark Plug Wire
Size:
Customer's Requirement
Type:
Bare
Description

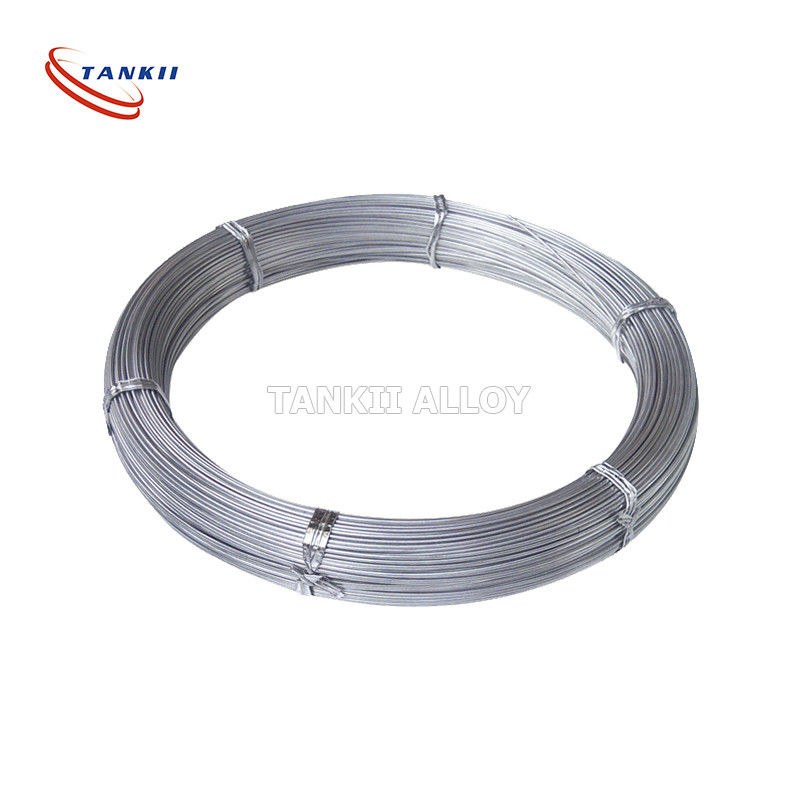

2.0mm Ignition Plug 1400°C Iron Based Wire FeCrAl Alloy

Iron Based Alloy Wire Customized Fecral Wire 1400°C Tk1 2.0mm For Ignition Plug Wires



Grade: CrAl 20/5, Cr25Al5, Cr21Al6Nb, TK1



Max working temperature: 1250~1400°c



Resistivity: 1.35~1.5 mm2 Ω/m



Diameter 6mm~14mm usually





Grade 1Cr13Al4 TK1 0Cr25Al5 0Cr20Al6Re 0Cr23Al5 0Cr19Al3 0Cr21Al6Nb 0Cr27Al7Mo2

Nominal

composition

%

Cr 12.0-15.0 22.0-26.0 23.0-26.0 19.0-22.0 22.5-24.5 18.0-21.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 5.0-7.0 4.5-6.5 5.0-7.0 4.2-5.0 3.0-4.2 5.0-7.0 6.0-7.0
Re opportune 0.04-1.0 opportune opportune opportune opportune opportune opportune
Fe Bal.   Bal. Bal. Bal. Bal. Bal. Bal.
              Nb0.5 Mo1.8-2.2
Resistivity 20ºC 1.25 1.48 1.42 1.40 1.35 1.23 1.45 1.53
Density(g/cm³) 7.4 7.1 7.1 7.16 7.25 7.35 7.1 7.1
Max continuous operating temperature(ºC) 650 1400 1250 1250 1250 1100 1350 1400























































Spark
When the high voltage produced by the ignition system is applied between the center electrode and ground electrode of the spark plug, the insulation between the electrodes breaks down, current flows in the discharge phenomenon, and an electrical spark is generated.



This spark energy trigger ignition and combustion in the compressed air-fuel mixture.
This discharge is of extremely brief duration (about 1/1000 of a second) and is extraordinarily complex.



The role of the spark plug is to reliably generate a strong spark between the electrodes accurately at the specified time to create the trigger for combustion of the gas mixture.
