Product Details
Place of Origin: Shanghai, China,
Brand Name: TANKII
Certification: ISO SGS
Model Number: Ceramic Band Heater
Payment & Shipping Terms
Minimum Order Quantity: 1 Pcs
Price: negotiable
Packaging Details: wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Pcs per Month
Heating Wire: |
NICR 80/20 Wire |
Types: |
Ceramic, Mica And Nozzle |
Heat Transfer Surface: |
Tubular Heat Exchanger |
Principle: |
Resistance Alloy Wire Heating |
Jacket Material: |
Stainless Steel 304 |
Transport Package: |
Carton And Wooden Box |
Heating Wire: |
NICR 80/20 Wire |
Types: |
Ceramic, Mica And Nozzle |
Heat Transfer Surface: |
Tubular Heat Exchanger |
Principle: |
Resistance Alloy Wire Heating |
Jacket Material: |
Stainless Steel 304 |
Transport Package: |
Carton And Wooden Box |
Industrial Extruder Barrel Mica/Ceramic/ Nozzle Band Heater

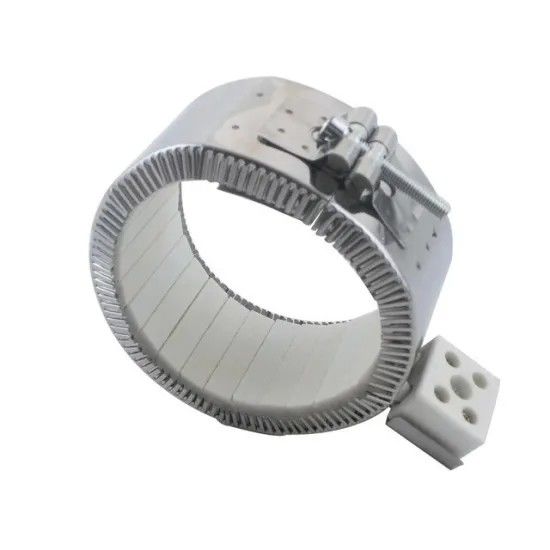

1-Ceramic Band Heater:
Ceramic band heaters are made of helically wound nickel chrome resistance coil precisely stretched and strung through steatite ceramic cores forming a flexible heating mat. It is then placed in flexible stainless steel housing with ceramic fibre insulation. These heaters are very flexible and can be fitted easily. Durable, ceramic band heaters provide excellent energy efficiency with their built-in ceramic fiber jackets. Unlike mica band heaters, ceramic heaters transfer heat through conduction and radiation and do not require tightening around the cylinder. Flexible, these heaters come in a wide variety of terminal styles, and with different clamping mechanisms, holes and cutouts.
Features:
1, Nickel-chrome wire in a outer wall composed of interlocking ceramic tiles
2, Inside medium-high temperature heaters up to 1200° F
3, Outside shell temperature: 350° - 450° F
4, Built-in ceramic fiber insulating mat
5, Stainless steel jacket
6, Minimum diameter: 60mm
7, Minimum width: 25.4MM
8, Thickness: 12mm
9, Broad range of terminal types and thicknesses of ceramic fiber insulation mats
| Industrial Heater | Ceramic Band Heater |
| Resistance Wire | NiCr 80/20 |
| sheath | 304 stainless steel |
| insulation | ceramic |
| Heater Voltage | 120V 220V 230V 240V 480V standard (other voltages available on request) |
| wavelength range | 2-10 microns |
| Operating Temperature | 300°C to 700°C (572°F - 1292°F) |
| Operating Life-Up | 20,000 hrs |
| radiation distance | 100 mm to 250 mm |
Applications:
1, Plastic processing machinery
2, Injection and blow moulding
3, Extruders
4, Hot runner bushings
When ordering please specify:
1, Inside diameter and width of the heater
2, Construction type
3, Wattage and voltage
4, Type of terminal
5, Drawing where special type of holes or cutouts required
