18AWG 21AWG N Type Thermocouple Bare Wire Nisil Nicrosil Material Bright Surface

18AWG 21AWG N Type Thermocouple Bare Wire Nisil Nicrosil Material Bright Surface
18AWG 21AWG N Type Thermocouple Bare Wire Nisil Nicrosil Material Bright Surface 18AWG 21AWG N Type Thermocouple Bare Wire Nisil Nicrosil Material Bright Surface 18AWG 21AWG N Type Thermocouple Bare Wire Nisil Nicrosil Material Bright Surface 18AWG 21AWG N Type Thermocouple Bare Wire Nisil Nicrosil Material Bright Surface

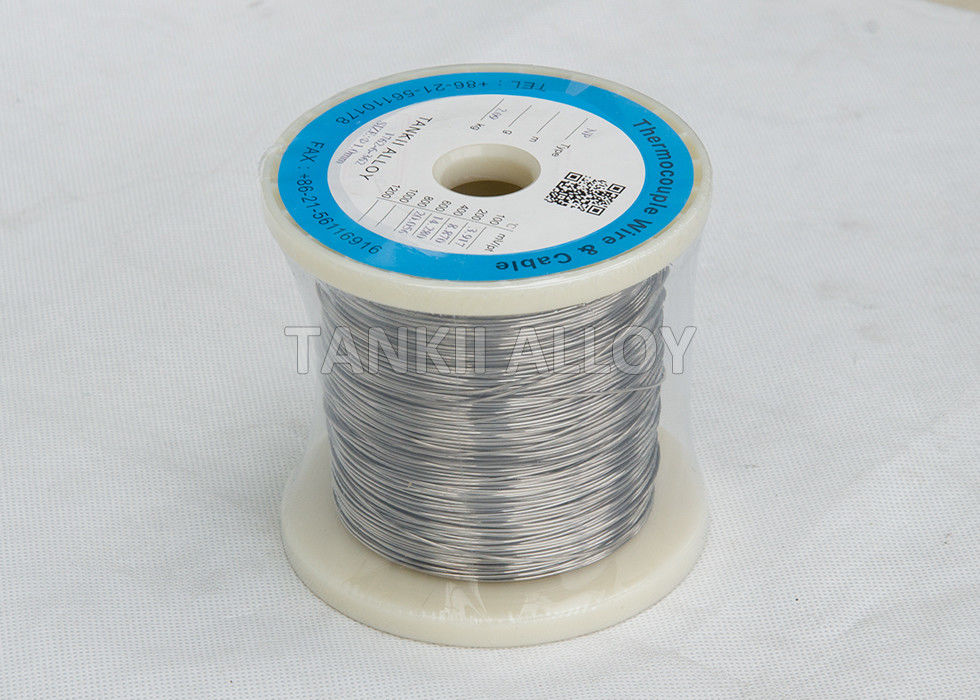

Large Image :  18AWG 21AWG N Type Thermocouple Bare Wire Nisil Nicrosil Material Bright Surface

Product Details:
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: N
Payment & Shipping Terms:
Minimum Order Quantity: 10kg per leg
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden box
Delivery Time: 5-7 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year

18AWG 21AWG N Type Thermocouple Bare Wire Nisil Nicrosil Material Bright Surface

Description
Material: NiCrSi NISi Surface: Bright
Diameter: 0.7mm, 1.0mm Wire Type: Solid Wire
Insulation: Customized Wire Class: IEC Class I , II
Leading Time: 5~20 Days As Per The Order Qty
High Light:

thermocouple lead wire

,

high temperature thermocouple wire


18AWG 21AWG N Type Thermocouple Wire Nisil Nicrosil Wire IEC Class One

A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.



NiCrSi thermocouple wire type N
The Type N thermocouple is composed of a nickel-14% chromium-1 1/2% silicon (+) wire versus a nickel 4 1/2% silicon-1/10% magnesium (-) wire. It was developed to be used under the same conditions as a Type K. Type N should be used in oxidizing or inert atmospheres with a service temperature range between -200°C and 1260°C (-330°F to 2300°F). The addition of silicon and chromium makes this type of thermocouple more resistant to Green-Rot and less drifting when compared to a Type K. The negative element, or NN, of a Type N thermocouple can be described by any of the following names: Nisil, nickel-silicon.The positive element, or NP, of a Type N thermocouple can be described by any of the following names: Nicrosil, nickel-chromium-silicon.




18AWG 21AWG N Type Thermocouple Wire Nisil Nicrosil Wire IEC Class One

Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

Our products conform to the standards of IEC584 -1and IEC-2.


Thermocouple strips, thermocouple connectors are available.

Application Range of thermocouple wire:

1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation

18AWG 21AWG N Type Thermocouple Wire Nisil Nicrosil Wire IEC Class One

Thermocouple Type and Temperature Range

Thermocouple type and index


Measurement Range

Type


Index



PtRh30-PtRh6

B 600~1700


PtRh13-Pt

R 0~1600


PtRh10-Pt

S 0~1600


NiCr-NiSi

K -200~1300


NiCr-CuNi (constantan)

E -200~900


Fe-CuNi (constantan)

J -40~750


Cu-CuNi (constantan)

T -200~350


NiCrSi-NiSi

N -200~1300


The allowable grade and Tolerance are obtained at 0℃

Thermocouple
Type

Grade

Temperature range

Allowable Tolerance /℃
Type B 600~1700 ±0.25% t
600~800 ±4
800~1700 ±0.5%t
Type R(S) 0~1100 ±1
1100~1600 ±[1+(t-1100) ×0.3%]
0~600 ±1.5
600~1600 ±0.25% t
Type K and Type N -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type E -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type J -40~750 ±1.5℃ or ±0.4%t
-40~750 ±2.5℃ or ±0.75%t
Type T -40~350 ±0.5℃ or ±0.4%t
-40~350 ±1.0℃ or ±0.75%t
-200~40 ±1.0℃ or ±1.5%t


18AWG 21AWG N Type Thermocouple Bare Wire Nisil Nicrosil Material Bright Surface 0


 Delivery and Packing of thermocouple wire:

1. Packaging Details : 500m/1000m per roll with plastic film wrapped and carton package.

2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

3. Delivery: By express, air, sea as per thermocouple wire qty

18AWG 21AWG N Type Thermocouple Bare Wire Nisil Nicrosil Material Bright Surface 1



Welcome to call me or email to me for more information on thermocouple wire, stranded wire .
