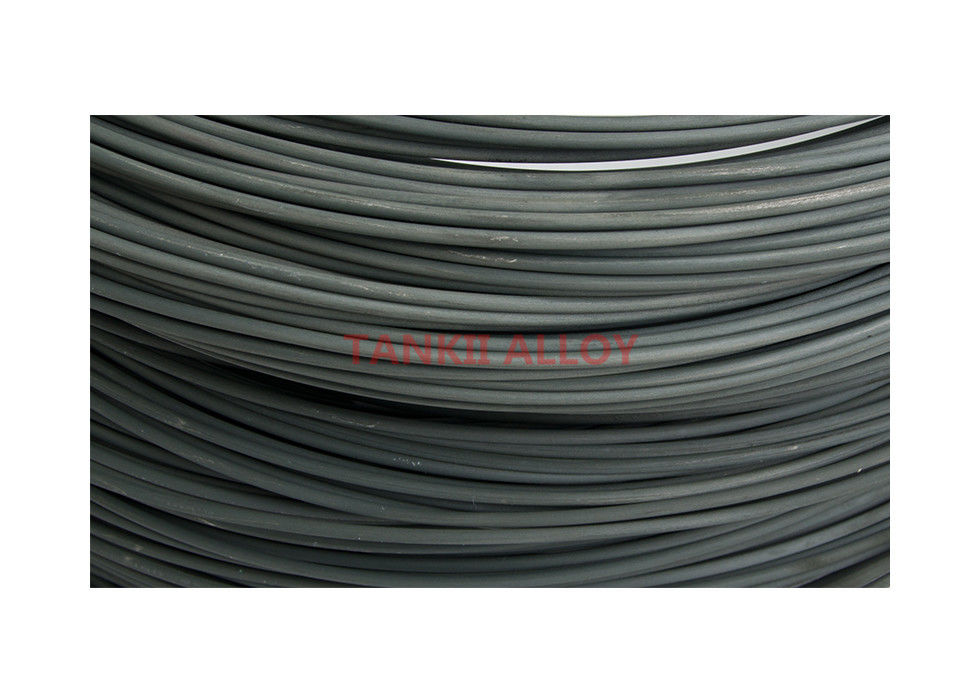

14AWG Thermocouple Wire / Chromel Alumel Wire With Oxidized Surface IEC Class 1

Product Details

Place of Origin: China Mainland

Brand Name: Tankii

Certification: ISO9001

Model Number: Chromel Alumel

Payment & Shipping Terms

Minimum Order Quantity: 10kg per leg

Price: Negotiation

Packaging Details: Standard exoprt package in carton box or wooden box

Delivery Time: 5-7 days after getting the payment

Payment Terms: T/T, Paypal, Western Union, MoneyGram,

Supply Ability: 1000Ton per year

Get Best Price
Contact Now
Specifications
Highlight:

thermocouple lead wire

,

high temperature thermocouple wire

Material:
Chromel Alumel
Surface:
Oxidized
Diameter:
14AWG
Wire Type:
Solid Wire
Insulation:
Customized
Wire Class:
I , II, III
Leading Time:
5~20 Days After Getting The Payment
Material:
Chromel Alumel
Surface:
Oxidized
Diameter:
14AWG
Wire Type:
Solid Wire
Insulation:
Customized
Wire Class:
I , II, III
Leading Time:
5~20 Days After Getting The Payment
Description
14AWG Thermocouple Wire / Chromel Alumel Wire With Oxidized Surface IEC Class 1

14AWG Thermocouple wire Chromel Alumel Wire With Oxidized Surface IEC Class 1





Quick Description



A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.



14AWG Thermocouple wire Chromel Alumel Wire With Oxidized Surface IEC Class 1



Characteristics:

The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields,

such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.



Our products conform to the standards of IEC584-1 and IEC-2.


Thermocouple strips, thermocouple connectors are available.

Application Range of thermocouple wire:

1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation


14AWG Thermocouple wire Chromel Alumel Wire With Oxidized Surface IEC Class 1

Thermocouple Type and Temperature Range

Thermocouple type and index



Measurement Range

Type



Index





PtRh30-PtRh6

B 600~1700



PtRh13-Pt

R 0~1600



PtRh10-Pt

S 0~1600



NiCr-NiSi

K -200~1300



NiCr-CuNi (constantan)

E -200~900



Fe-CuNi (constantan)

J -40~750



Cu-CuNi (constantan)

T -200~350



NiCrSi-NiSi

N -200~1300


The allowable grade and Tolerance are obtained at 0℃

Thermocouple

Type

Grade

Temperature range

Allowable Tolerance /℃
Type B 600~1700 ±0.25% t
600~800 ±4
800~1700 ±0.5%t
Type R(S) 0~1100 ±1
1100~1600 ±[1+(t-1100) ×0.3%]
0~600 ±1.5
600~1600 ±0.25% t
Type K and Type N -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type E -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type J -40~750 ±1.5℃ or ±0.4%t
-40~750 ±2.5℃ or ±0.75%t
Type T -40~350 ±0.5℃ or ±0.4%t
-40~350 ±1.0℃ or ±0.75%t
-200~40 ±1.0℃ or ±1.5%t



Application:

Solid pin for male connector

14AWG Thermocouple Wire / Chromel Alumel Wire With Oxidized Surface IEC Class 1 0



 Delivery and Packing of thermocouple wire:

1. Packaging Details : 500m/1000m per roll with plastic film wrapped and carton package.

2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

3. Delivery: By express, air, sea as per thermocouple wire qty

14AWG Thermocouple wire Chromel Alumel Wire With Oxidized Surface IEC Class 1

Welcome to call me or email to me for more information on thermocouple wire.
