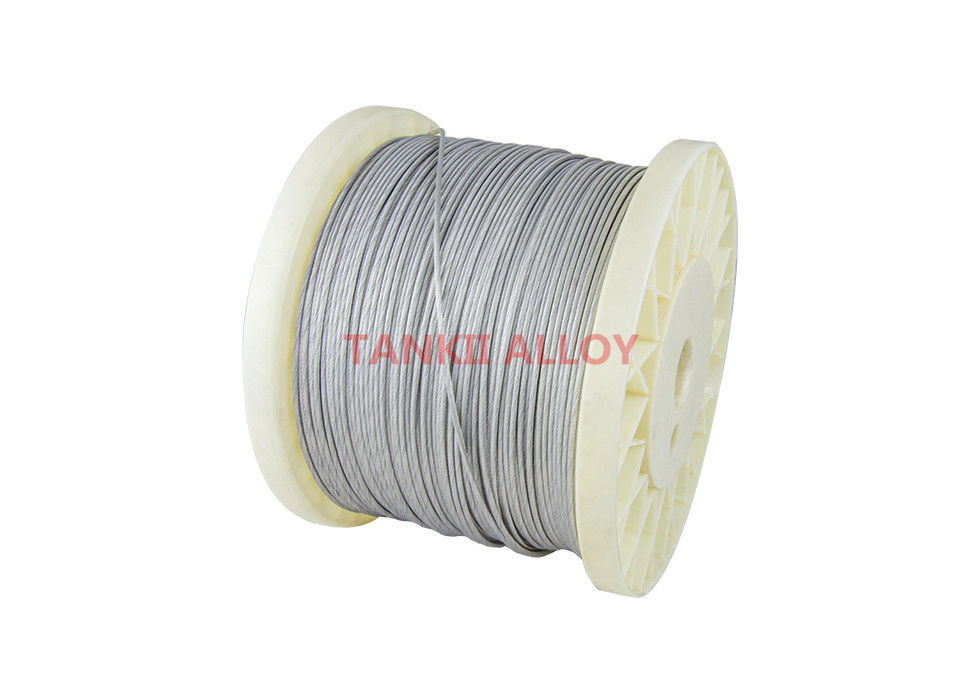

NiCrSi NiSiMg N Type Stranded Thermocouple Wire IEC Class 1 19*0.16mm

NiCrSi NiSiMg N Type Stranded Thermocouple Wire IEC Class 1 19*0.16mm
NiCrSi NiSiMg N Type Stranded Thermocouple Wire IEC Class 1 19*0.16mm NiCrSi NiSiMg N Type Stranded Thermocouple Wire IEC Class 1 19*0.16mm NiCrSi NiSiMg N Type Stranded Thermocouple Wire IEC Class 1 19*0.16mm

Large Image :  NiCrSi NiSiMg N Type Stranded Thermocouple Wire IEC Class 1 19*0.16mm

Product Details:
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: N
Payment & Shipping Terms:
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden box
Delivery Time: Within 3 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year

NiCrSi NiSiMg N Type Stranded Thermocouple Wire IEC Class 1 19*0.16mm

Description
Material: NiCrSi-NiSiMg Surface: Bright
Diameter: 19*0.16mm Wire Type: Stranded Wire
Insulation: Bare Wire Class: I
Leading Time: Stock Wires
High Light:

thermocouple lead wire

,

high temperature thermocouple wire



NiCrSi NiSiMg N type Thermocouple Stranded Wire IEC Class 1 19*0.16mm In Stock



Quick Description

A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.



The Type N thermocouple is composed of a nickel-14% chromium-1 1/2% silicon (+) wire versus a nickel 4 1/2% silicon-1/10% magnesium (-) wire. It was developed to be used under the same conditions as a Type K. Type N should be used in oxidizing or inert atmospheres with a service temperature range between -200°C and 1260°C (-330°F to 2300°F). The addition of silicon and chromium makes this type of thermocouple more resistant to Green-Rot and less drifting when compared to a Type K. The negative element, or NN, of a Type N thermocouple can be described by any of the following names: Nisil, nickel-silicon. The positive element, or NP, of a Type N thermocouple can be described by any of the following names: Nicrosil, nickel-chromium-silicon.



NiCrSi NiSiMg N type Thermocouple Stranded Wire IEC Class 1 19*0.16mm In Stock

Type N Thermocouple (Nicrosil / Nisil): The Type N shares the same accuracy and temperature limits as the Type K. The type N is slightly more expensive. The type N has better repeatability between 572F to 932F (300C to 500C) compared to the type K.



Type N Temperature Range:

  • Maximum continuous operating temperature: up to 2,300F (1,260C)
  • Short term use: 2,336F (1,280C)
  • Thermocouple grade wire, -454 to 2300F (-270 to 1,260C)
  • Extension wire, 32 to 392F (0 to 200C)

Type N Accuracy (whichever is greater):
  • Standard: +/- 2.2C or +/- .75%
  • Special Limits of Error: +/- 1.1C or 0.4%

Consideration for bare wire type E thermocouple applications:

  • The type N holds up better to oxidation at high temperatures when compared to the type K.

Characteristics:

The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields,

such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

Our products conform to the standards of IEC584 -1and IEC-2.



NiCrSi NiSiMg N type Thermocouple Stranded Wire IEC Class 1 19*0.16mm In Stock

Thermocouple strips, thermocouple connectors are available.
NiCrSi NiSiMg N Type Stranded Thermocouple Wire IEC Class 1 19*0.16mm 0
Application Range of thermocouple wire:
1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation



19*0.16mm 24AWG Stranded Wire N Type Thermocouple Wire With IEC Class I


N Type Thermocouple Stranded Wire's 19/0.16mm 200 ℃ and 350℃​ in Stock 66kg
Type Tensile Strength Elongation EMF
      (vs Platinum)(mV)
  N/mm² % 100℃ 200℃ 400℃
NNX 625 25 0.969 1.951 /
NPX 692 26.7 1.800 3.968 /
NN 710 27 0.987 1.989 4.066
NP 615 30 1.789 3.947 8.894


Application:N type thermocouple

NiCrSi NiSiMg N Type Stranded Thermocouple Wire IEC Class 1 19*0.16mm 1



N  type extension cable:

NiCrSi NiSiMg N Type Stranded Thermocouple Wire IEC Class 1 19*0.16mm 2



 Delivery and Packing of thermocouple wire:

1. Packaging Details : 3900~5000m per roll with plastic film wrapped and carton package.
2. Leading time : within 3 days
3. Delivery: By express / air / sea

NiCrSi NiSiMg N type Thermocouple Stranded Wire IEC Class 1 19*0.16mm In Stock

Welcome to call me or email to me for more information on N type thermocouple stranded wire 19/0.16mm.
