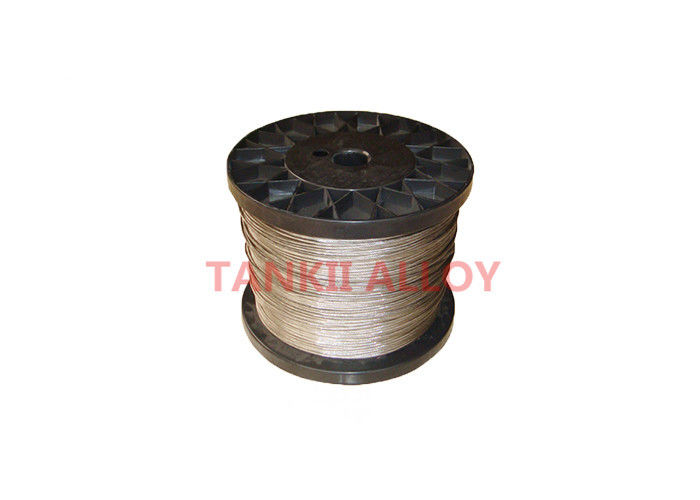

N Type Stranded Thermocouple Bare Wire Bright Surface For Aluminum Industry

N Type Stranded Thermocouple Bare Wire Bright Surface For Aluminum Industry
N Type Stranded Thermocouple Bare Wire Bright Surface For Aluminum Industry N Type Stranded Thermocouple Bare Wire Bright Surface For Aluminum Industry N Type Stranded Thermocouple Bare Wire Bright Surface For Aluminum Industry N Type Stranded Thermocouple Bare Wire Bright Surface For Aluminum Industry

Large Image :  N Type Stranded Thermocouple Bare Wire Bright Surface For Aluminum Industry

Product Details:
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: N
Payment & Shipping Terms:
Minimum Order Quantity: 10kg
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden box
Delivery Time: Within 3 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year

N Type Stranded Thermocouple Bare Wire Bright Surface For Aluminum Industry

Description
Material: NiCrSi-NiSiMg Surface: Bright
Diameter: 19*0.16mm Wire Type: Stranded Wire
Insulation: Without Wire Class: I
Leading Time: Stock Wires
High Light:

thermocouple lead wire

,

high temperature thermocouple wire



N Type Thermocouple Wire Stranded Wire 19*0.16mm With IEC584 Class 1



Quick Description

A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.



N Type Thermocouple Wire Stranded Wire 19*0.16mm With IEC584 Class 1



Type N Thermocouple (Nicrosil / Nisil): The Type N shares the same accuracy and temperature limits as the Type K. The type N is slightly more expensive. The type N has better repeatability between 572F to 932F (300C to 500C) compared to the type K.



Type N Temperature Range:

  • Maximum continuous operating temperature: up to 2,300F (1,260C)
  • Short term use: 2,336F (1,280C)
  • Thermocouple grade wire, -454 to 2300F (-270 to 1,260C)
  • Extension wire, 32 to 392F (0 to 200C)

Type N Accuracy (whichever is greater):
  • Standard: +/- 2.2C or +/- .75%
  • Special Limits of Error: +/- 1.1C or 0.4%

Consideration for bare wire type E thermocouple applications:

  • The type N holds up better to oxidation at high temperatures when compared to the type K.

Characteristics:

The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields,

such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.

Our products conform to the standards of IEC584 -1and IEC-2.


Thermocouple strips, thermocouple connectors are available.
N Type Stranded Thermocouple Bare Wire Bright Surface For Aluminum Industry 0
Application Range of thermocouple wire:
1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation


N Type Thermocouple Wire Stranded Wire 19*0.16mm With IEC584 Class 1

N Type Thermocouple Stranded Wire's 19/0.16mm 200 ℃ and 350℃​ in Stock 66kg
Type Tensile Strength Elongation EMF
      (vs Platinum)(mV)
  N/mm² % 100℃ 200℃ 400℃
NNX 625 25 0.969 1.951 /
NPX 692 26.7 1.800 3.968 /
NN 710 27 0.987 1.989 4.066
NP 615 30 1.789 3.947 8.894


Application:N type thermocouple

N Type Stranded Thermocouple Bare Wire Bright Surface For Aluminum Industry 1



N  type extension cable:

N Type Stranded Thermocouple Bare Wire Bright Surface For Aluminum Industry 2



 Delivery and Packing of thermocouple wire:

1. Packaging Details : 3900~5000m per roll with plastic film wrapped and carton package.
2. Leading time : within 3 days
3. Delivery: By express / air / sea



Welcome to call me or email to me for more information on N type thermocouple stranded wire 19/0.16mm.
