Product Details:
|
| Material: | Copper Manganin Nickel | Diameter: | 0.02-5.0mm |
|---|---|---|---|
| Shape: | Sheet, Strip, Wire, Ribbon | Sample: | Free |
| Surface: | Bright | ||
| High Light: | precision tubing,kovar alloy |
||

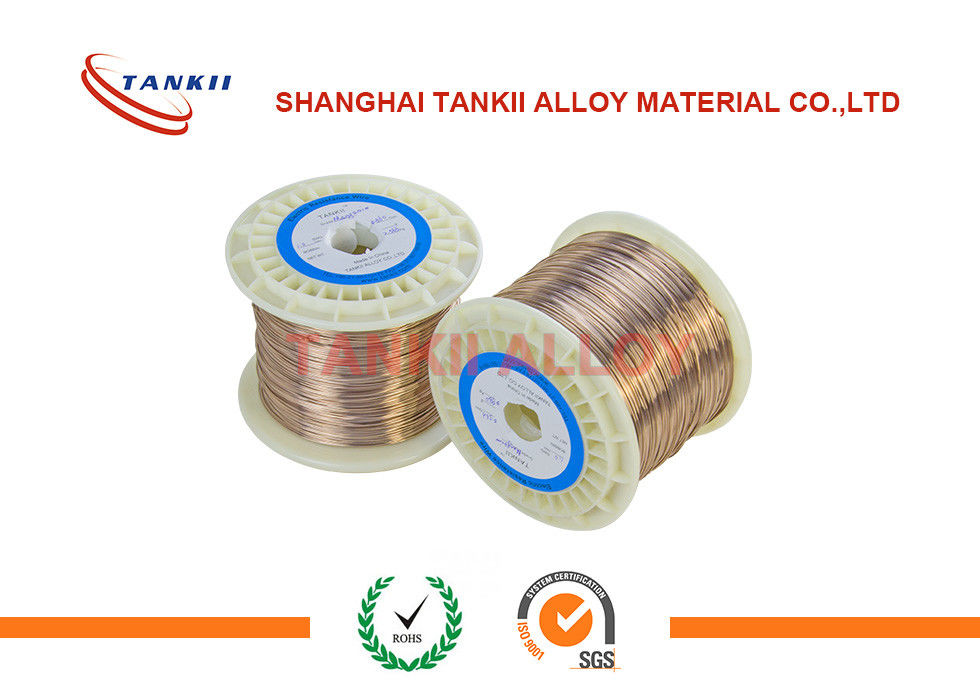

1.Manganin alloy is one kind of electric resistance alloy which is mainly made of copper,manganese and
nickel.
It has character of small resistance temperature coefficient,low thermal EMF vs copper E,outstanding long-term stability,good weldability and workability,which makes it to be superior precision surveying instrument.such as resistor measure voltage/current/resistance and more.
It is also high-quality electric heating wire for low-temperature heating element,such as heater of air-conditioning system,household heating appliances.
2. Manganin alloy series:
6J8 |
6J12 | 6J13 |
3. Size dimension range:
Wire |
0.018-10mm |
| Ribbons | 0.05*0.2-2.0*6.0mm |
| Strip | 0.05*5.0-5.0*250mm |
4. Chemical Composition:
Name Code |
Main Composition (%) | Cu | Mn | Ni |
| Manganin | 6J13 | Bal | 11-13 | 2-5 |
5. Physical Properties:
Name Code |
Density (g/mm2) | Max. Working Temp.(º C ) |
| Manganin 6J13 | 8.4 | 10-80 |
6. Mechanical Properties:
Name |
Code | Resistivity (μ Ω. M) |
Temp. Coff. of Resistance (α×10-6/°C) |
Thermal EMF vs.Copper (μV/º C ) (0-100º C ) |
Elongation (%) | Tensile Strength(Mpa) |
| Manganin | 6J13 | 0.44 ±0.04 | 20 | ≤2 | ≥15 | 490--539 |
Application of Manganin
Manganin foil and wire is used in the manufacture of resistor, Particularly ammeter shunt, because of its virtually zero temperature coefficient of resistance value and long term stability.
Other Alloy:
1.FeCrAl wire strip includes: OCr13Al4,OCr19Al3,OCr21Al4,OCr20Al5,OCr25Al5,OCr21Al6,OCr21Al6Nb,OCr27Al7Mo2.
2.Nickel chrome wire Strip Bar includes: Cr25Ni20,Cr20Ni35,Cr15Ni60,Cr20Ni80.
3.Copper Nickel wire Strip includes:
CuNi1,CuNi2,CuNi5,CuNi8,CuNi10,CuNi14,CuNi19,CuNi23,CuNi30,CuNi34,CuNi40,CuNi44.
4.Constantan wire includes: 6J40,4J42,4J32.
