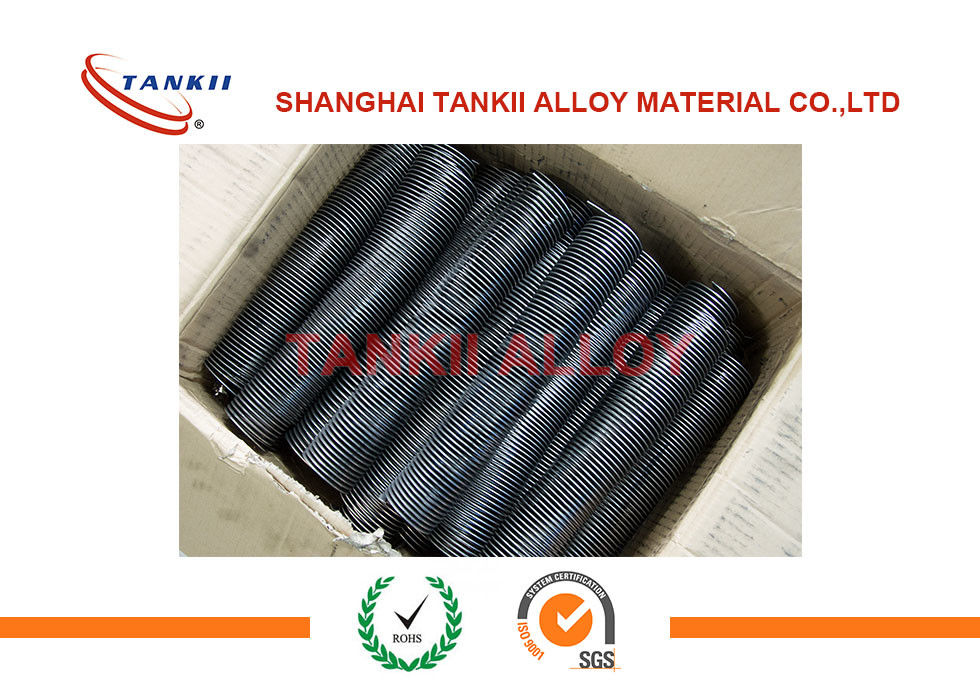

Product Details:
|
| Resistivity: | 1.25+/-0.03 | Size: | 1.5x15mm, 1.6x15mm,1.2x16mm |
|---|---|---|---|
| Application: | Heating,Industry,furnace Heating Wire,electric Resistance For Furnace Heating Element,heater | Shape: | Strip,ribbon,plate,Wire Strip Round Ribbon |
| Chemical Composition: | Ferro Chrome Aluminium | Surface: | Bright & Smooth,acid White/oxidized |
| High Light: | electrical heating wire,high temperature wire |
||
Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
Packing detail
Spool, coil, wooden case(as per client's requiryment)
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max0.12 | Max 0.025 | Max 0.025 | Max 0.70 | Max 1.0 | 12.0~15.0 | Max 0.60 | 4.0~6.0 | Bal. | - |
Mechanical Properties
| Max Continuous Service Temp | 950C |
| Resisivity at 20C | 1.25 ohm mm2/m |
| Density | 7.4 g/cm3 |
| Thermal Conductivity | 52.7 KJ/m@h@C |
| Coefficient of Thermal Expansion | 15.4×10-6/C |
| Melting Point | 1450C |
| Tensile Strength | 588~735 Mpa |
| Elongation | Min 12% |
| Section Variation Shrink Rate | 65~75% |
| Repeatedly Bend Frequency | Min 5 times |
| Continuous Service Time | - |
| Hardness | 200-260HB |
| Micrographic Structure | Ferrite |
| Magnetic Property | Magnetic |
Temperature Factor( degree Celsius)of Electrical Resistivity
| 20 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| 1 | 1.005 | 1.014 | 1.028 | 1.044 | 1.064 | 1.090 | 1.120 | 1.132 | 1.142 | 1.150 |
