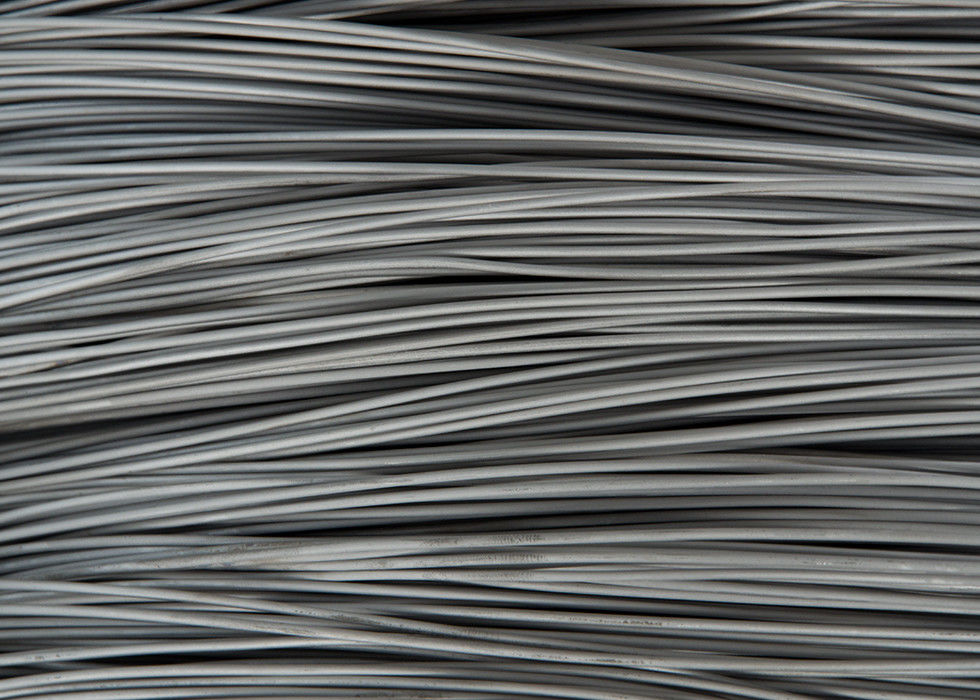

FeCrAl Alloy Oxidised Electric Resistance Wire For Industrial Heating Furnace

FeCrAl Alloy Oxidised Electric Resistance Wire For Industrial Heating Furnace
FeCrAl Alloy Oxidised Electric Resistance Wire For Industrial Heating Furnace FeCrAl Alloy Oxidised Electric Resistance Wire For Industrial Heating Furnace FeCrAl Alloy Oxidised Electric Resistance Wire For Industrial Heating Furnace FeCrAl Alloy Oxidised Electric Resistance Wire For Industrial Heating Furnace

Large Image :  FeCrAl Alloy Oxidised Electric Resistance Wire For Industrial Heating Furnace

Product Details:
Place of Origin: Shanghai, China
Brand Name: Tankii
Certification: ISO9001:2015
Model Number: 1Cr13Al4
Payment & Shipping Terms:
Minimum Order Quantity: 50kg
Price: Negotiated price
Packaging Details: Spool in carton, if necessary with plywood pallet o plywood case or according to client´s requirements
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 200+TON+MONTH

FeCrAl Alloy Oxidised Electric Resistance Wire For Industrial Heating Furnace

Description
Surface Treatment: Oxidation Or Bright Application: Industrial Furnace
Wire Diameter: Customized Density: 7.4
Melting Point: 1450 Tensile Sterngth: 630
High Light:

nichrome resistance wire

,

high resistance wire



Alloy 750 FeCrAl Alloy Oxidised Wire/ Ribbon for Industrial Heating Furnace



Introduction



1Cr13Al4 is an iron-chromium-aluminium alloy (FeCrAl alloy) for use at temperatures up to 750°C (1382°F). The alloy with the characteristics of high resistivity, low temperature coefficient of electric resistance, high operating temperature, good oxidation resistance under high temperature.
It is widely used in industrial electric furnace, household electrical appliance and far infrared ray device. Such as panel heaters, infrared heaters, warming plates, in cartridge heaters, storage heaters, ceramic heaters for cooking plates, kilns elements, radiators, in quartz tube heaters for space heating, toasters, toaster ovens, industrial infrared dryers, coils on molded ceramic fibre for cooking plates with ceramic hobs and so on.





1Cr13Al4 0.03-12.0 1.25±0.08 588-735 >16 >6 950 >10000
0Cr15Al5 1.25±0.08 588-735 >16 >6 1000 >10000
0Cr25Al5 1.42±0.07 634-784 >12 >5 1300 >8000
0Cr23Al5 1.35±0.06 634-784 >12 >5 1250 >8000
0Cr21Al6 1.42±0.07 634-784 >12 >5 1300 >8000
1Cr20Al3 1.23±0.06 634-784 >12 >5 1100 >8000
0Cr21Al6Nb 1.45±0.07 634-784 >12 >5 1350 >8000
0Cr27Al7Mo2 0.03-12.0 1.53±0.07 686-784 >12 >5 1400 >8000





2. Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

3. Packing detail
Spool, coil, wooden case(as per client's requirement)



4. Specification
1). Locomotive resistance strip:
Thickness: 0.6mm-1.5mm
Width: 60mm-90mm

2). Electric ceramic cooktop resistance strip:
Thickness: 0.04mm-1.0mm
Width: 5mm-12mm
Thickness&Width: (0.04mm-1.0mm)× 12mm(above)

3). Low resistance ribbon:
Thickness&Width: (0.2mm-1.5mm)*5mm

4). Industrial furnace ribbon:
Thickness: 1.5mm-3.0mm
Width: 10mm-30mm



5. Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery.



Delivery status and supply state of furnace resistance alloy heating ribbon
Wire and plate with the looseness or oxidation colour soft modal supply.
Strip except special requirements outside, general with after annealing oxidation colour supply.
The flat silk thread and protecting gas to light after annealing soft modal supply.
2, product packaging of furnace resistance alloy heating ribbon
Wire or strips to pack cloth bandaged volumes supply.
Thread and flat silk, axis encapsulate supply.
3, export products and users have special requirement, negotiation.
Note
1, when the design should be based on the power wiring method, reasonable surface load, the correct choice of silk diameter,
2, before installation coping furnace thorough examination, cleared ferritic, "carbon, and the electric stove contact risks to avoid short circuit, in case caused furnace silk breakdown,
3, when installation should press design wiring method properly connected;
4, in use before should check the sensitivity of the temperature control system, in case of failure, cause temperature burnt.
