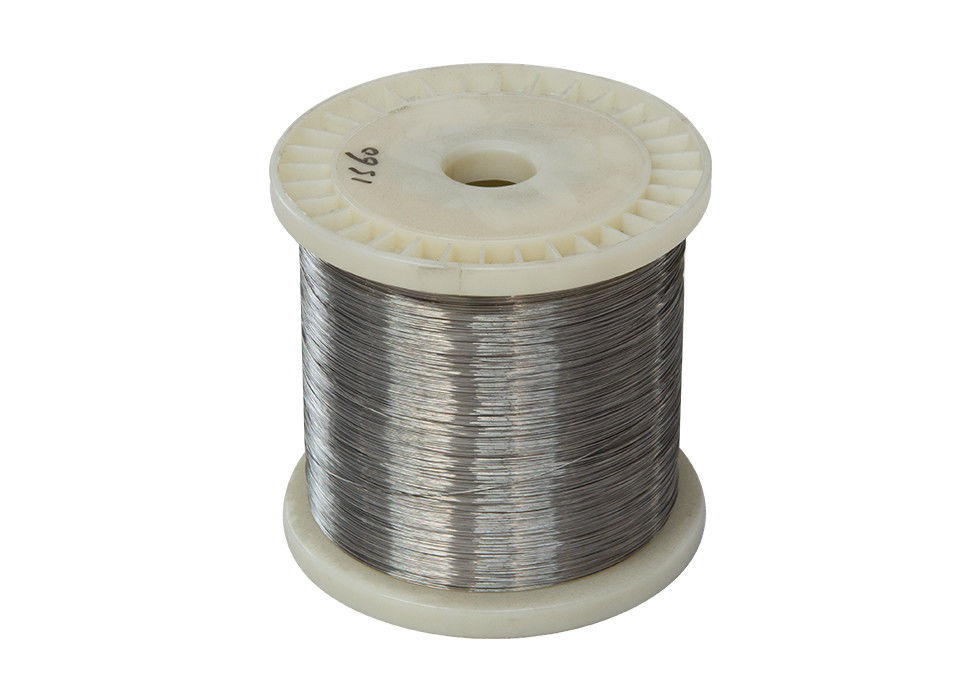

Ni 60% Cr15% Soft Nichrome Resistance Wire With ISO Certificate

Product Details

Place of Origin: Shanghai, China

Brand Name: Tankii

Certification: ISO9001:2015

Model Number: NiCr60/15

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: Negotiated price

Packaging Details: Spool in carton, if necessary with plywood pallet o plywood case or according to client´s requirements

Delivery Time: 7-12 DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 200+TON+MONTH

Get Best Price
Contact Now
Specifications
Highlight:

nichrome resistance wire

,

high resistance wire

Condition:
Soft
Type:
Nickel Alloy Wire
Surface:
Bright, Annealed
Specification:
Customized
Quality Certificate:
Delivered With Goods
Sample:
Available
Condition:
Soft
Type:
Nickel Alloy Wire
Surface:
Bright, Annealed
Specification:
Customized
Quality Certificate:
Delivered With Goods
Sample:
Available
Description
Ni 60% Cr15% Soft Nichrome Resistance Wire With ISO Certificate

NiCr C Resistance Alloy Wire/ Fine Wire Ni 60% Cr15% Electric Heating Wire



1. Nichrome Alloy

Nichrome wire is made of a non-magnetic alloy composed primarily of nickel, chromium, and iron. Nichrome is characterized by its high resistivity and good oxidation resistance. Nichrome wire also has good ductility after use and excellent weldability.

The number that comes after the Nichrome wire type indicates the percentage of nickel in the alloy. For example, "Nichrome 60" has approximately 60% Nickel in its composition.

Applications for Nichrome wire include heating elements of hair dryers, heat sealers, and ceramic support in kilns.



2. NiCr C



It is ideal for use as heating elements in household utilities and in moderate heat, high humidity environments.

Applications: Metal sheathed tubular elements used in, for example, hot plates, grills, toaster ovens and storage heaters. The alloy is also used for suspended coils in air heaters in clothes dryers, fan heaters, hand dryers.



3. Other Nichrome Alloy



Nichrome 20

This alloy has moderate resistance to oxidation.



Applications: Refractory anchor bolts, element fastener, and terminals attached to nickel-chromium heating elements.

Nichrome 30

This alloy is also used for heating cables and rope heaters in defrosting and de-icing elements, resistors, floor heaters, electric blankets and pads, baseboard heaters, and car seats.

Applications: Heavy duty rheostats, open coil heaters in HVAC systems, night-storage heaters, solid hot plates, convection heaters, and fan heaters.

Nichrome 40

Applications: Night-storage heaters, convection heaters, heavy duty rheostats, fan heaters, heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters and floor heaters, and resistors.





Nichrome 70



Nichrome 70 is great for reducing atmospheres, as it is not subject to 'green rot'.

Applications: This type of Nichrome wire is used in electrical heating elements in industrial furnaces.

Nichrome 80

Nichrome 80 has very good form stability. This alloy offers superior service life compared to other Nichrome wire types due to the excellent adhesion properties of its surface oxide.

It is commonly used for industrial furnaces and heating elements in home appliances.

Applications: Water heaters, flat irons, ironing machines, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.





Specification:

Alloy Type Diameter Resistivity Tensile Elongation
(%)
Bending Max.
Continuous
Working
Life
(mm) (μΩm)(20°C) Strength Times Service (hours)
(N/mm²)   Temperature
(°C)
Cr20Ni80 <0.50 1.09±0.05 850-950 >20 >9 1200 >20000
0.50-3.0 1.13±0.05 850-950 >20 >9 1200 >20000
>3.0 1.14±0.05 850-950 >20 >9 1200 >20000
Cr30Ni70 <0.50 1.18±0.05 850-950 >20 >9 1250 >20000
≥0.50 1.20±0.05 850-950 >20 >9 1250 >20000
Cr15Ni60 <0.50 1.12±0.05 850-950 >20 >9 1125 >20000
≥0.50 1.15±0.05 850-950 >20 >9 1125 >20000
Cr20Ni35 <0.50 1.04±0.05 850-950 >20 >9 1100 >18000
≥0.50 1.06±0.05 850-950 >20 >9 1100 >18000





Ni 60% Cr15% Soft Nichrome Resistance Wire With ISO Certificate 0Ni 60% Cr15% Soft Nichrome Resistance Wire With ISO Certificate 1
